Yale CPV Electric Chain Hoist (Fixed) 125kg–5t WLL (400v)
YAL-ECH-CPV-FIXED
Yale CPV fixed position electric chain hoist with hook or lug suspension. Capacity 125kg-5000kg, 400v power supply, IP55 protection and 42v low-voltage control. Heavy-duty M4 hoist with overload protection and electromagnetic brake for professional lifting applications.
From: £1,674.37£2,009.24 Exc VATInc VAT
Description

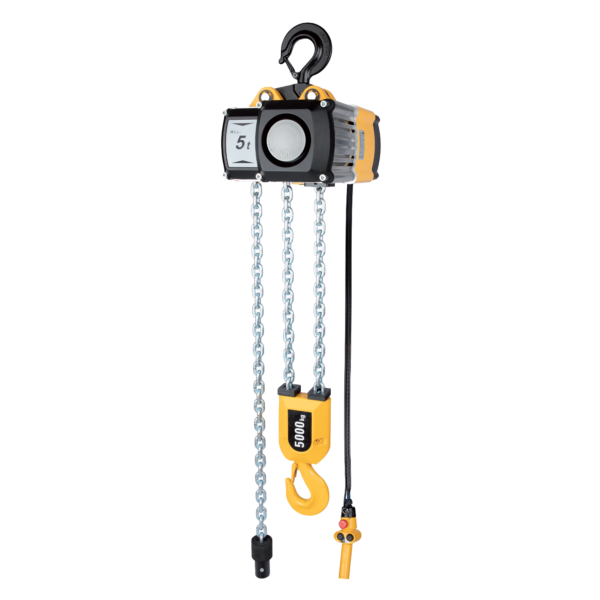

The Yale CPV Electric Chain Hoist (Hook or Lug Suspended) combines modern engineering with robust industrial construction to deliver reliable lifting performance across a wide range of professional applications. Designed for versatility, the CPV series is available with top suspension hook as standard and lug suspension as an option, allowing easy integration into fixed lifting points, crane systems and structural beams.
With lifting capacities from 125kg up to 5000kg, the CPV hoist range is engineered for durability and smooth operation. The unit features an integrated upper and lower limit switch that significantly extends the service life of the slip clutch, motor and gearbox by preventing over-travel.
Built to demanding industrial standards, the CPV incorporates a 42V low-voltage control system, electromagnetic spring pressure brake, and overload protection (slip clutch outside the force flow) to maximise operator safety and equipment longevity.
The oil bath gearbox with helical gearing ensures particularly smooth running and extended service life, while the rugged housing and IP55 protection class allow dependable operation in challenging working environments.
Technical Overview
Power supply: 400v, 3-phase, 50Hz
Capacity range: 125kg – 5000kg
FEM classification: 1Am / M4
Protection class: IP55
Control voltage: 42V
Standard height of lift: typically supplied to order
Chain container: optional extra
Safety & Performance
The CPV hoist is engineered for safe and reliable operation in professional environments:
Electromagnetic brake holds load securely during power loss
Slip clutch protects against overload conditions
Main contactor enhances operational safety
Limit switches prevent over-hoisting and over-lowering
Precision gearing ensures smooth lifting motion
Available Options

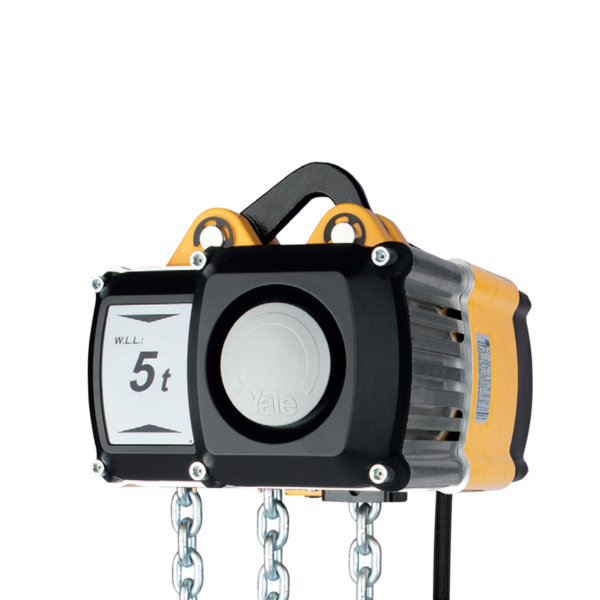

Lug suspension conversion
Flexible chain containers
Radio remote controls
Pluggable control pendants
CEE supply plugs with phase changer
Rotary limit switch (backup)
90° turned suspension
Stainless steel load chain (special environments)
Rain protection covers
Applications
Fixed crane installations
Workshop lifting stations
Production lines
Industrial maintenance
Manufacturing facilities
Mechanical handling systems
Important Notes

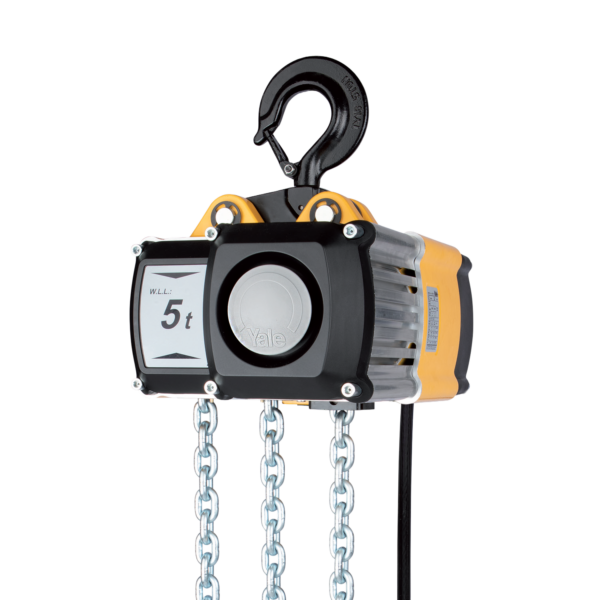

Supplied with suspension hook as standard
Lug suspension available on request
Chain container not included unless specified
Any lifting height can be supplied to order
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2.5t, 2t, 5t, 250kg, 500kg |
| Lifting Speed (m/min) | 1-4, 1/4, 2-8, 2/8, 4, 8 |
| Suspension | Top Hook, Top Lug |
