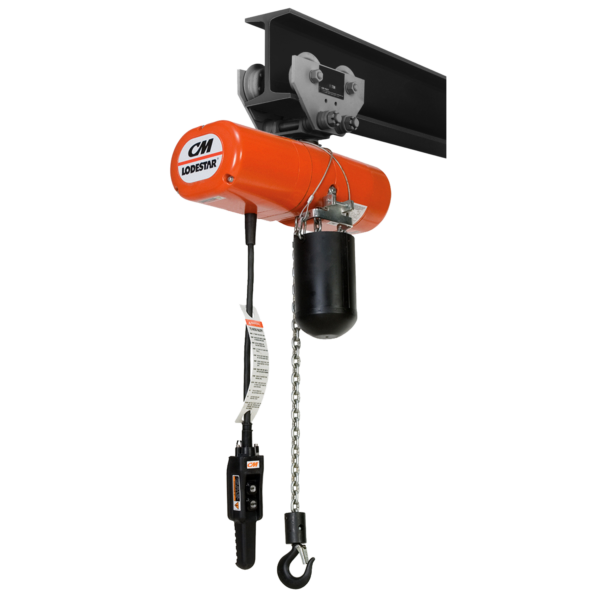

CM Lodestar Electric Chain Hoist with Push Trolley 250kg–3t WLL (110v/240v/400v)

Description

The CM Lodestar Electric Chain Hoist with manual push travel trolley delivers the same legendary Lodestar reliability combined with smooth horizontal load movement. Designed for professional industrial environments, this trolley-mounted electric hoist is widely trusted across manufacturing, hire, warehousing and maintenance operations.

Engineered and manufactured in the USA, the Lodestar range has built a reputation as one of the most durable electric chain hoists available. This manual push trolley version allows operators to easily position loads along a beam, making it ideal for applications requiring both vertical lifting and manual horizontal travel.

Built for demanding duty cycles, the hoist features a robust yet lightweight aluminium alloy housing that fully encloses internal components. This design protects against site conditions while ensuring efficient heat dissipation during prolonged use. With a FEM 2m (40% duty) classification, the Lodestar is suitable for frequent and intensive lifting operations.

The manual push trolley is designed for smooth beam travel and precise load positioning. It fits a wide range of beam flange widths, providing flexible installation across workshops and industrial facilities. The combined system offers excellent headroom and compact dimensions, making it well suited to space-restricted environments.

Operator safety is enhanced through the standard 48V low-voltage control system and IP65-rated pendant. Adjustable upper and lower limit switches help prevent over-travel, while built-in thermal overload protection safeguards the motor during heavy use.

The lifetime-lubricated gearbox significantly reduces maintenance requirements and contributes to the hoist’s long service life. The load hook with axial bearing ensures secure load handling and reduced hook wear during operation.

Available ex-stock in 110V single phase, 230V single phase and 400V three phase, this CM Lodestar hoist with manual trolley provides a versatile lifting solution for UK industrial users.

Technical Specification
Model Operating voltage Capacity (kg) Number of chain falls Lifting speeds (m/min) Chain dimensions (d x p mm) Hoist motor (kW) Maximum height of lift 56tpi Maximum height of lift 64tpi
C 230v or 110v 1ph 50Hz 250 1 8 6.3 x 18.9 0.37 79 90
F 230v or 110v 1ph 50Hz 500 1 4 6.3 x 18.9 0.37 39 45
J 230v or 110v 1ph 50Hz 500 1 8 7.9 x 21.7 0.75 48 55
L 230v or 110v 1ph 50Hz 1000 1 4 7.9 x 21.7 0.75 48 55
LL 400v 3ph 50Hz 1000 1 8 7.9 x 21.7 0.75 98 112
LL2 400v 3ph 50Hz 1000 1 8/2.5 7.9 x 21.7 0.75 98 112
R 230v or 110v 1ph 50Hz 2000 2 2 7.9 x 21.7 0.75 25 35
RR 400v 3ph 50Hz 2000 2 4 7.9 x 21.7 0.75 25 35
RR2 400v 3ph 50Hz 2000 2 4/1.3 7.9 x 21.7 0.75 25 35

Safety & User Instructions
Verify beam suitability and correct trolley installation before use.
Ensure the load does not exceed the rated capacity.
Inspect chain, hook and trolley wheels before operation.
Do not use the hoist for side pulling or dragging loads.
Only trained personnel should operate the equipment.
Isolate electrical supply before servicing or maintenance.
Follow UK LOLER and PUWER regulations during use and inspection.
Always keep hands clear of the load chain and trolley wheels.

Recommended Applications
Factory production lines
Workshop beam systems
Maintenance departments
Warehousing operations
Hire and rental fleets
General industrial lifting
