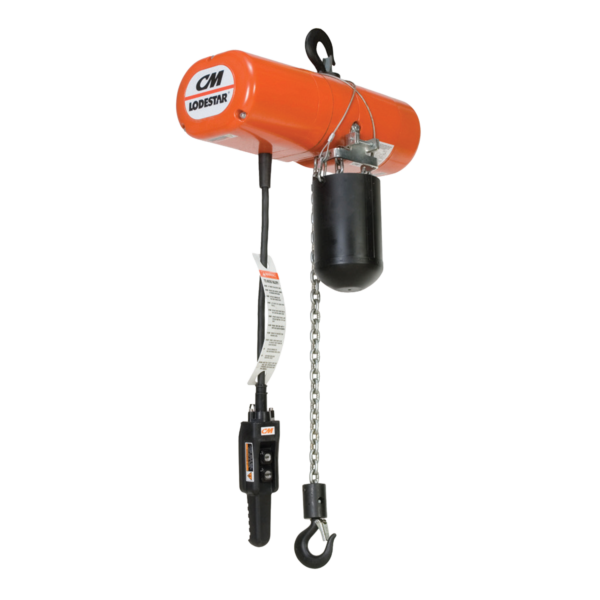

CM Lodestar Electric Chain Hoist (Fixed) 250kg–3t WLL (110v/240v/400v)
CM-ECH-LODESTAR-FIXED
Heavy-duty CM Lodestar electric chain hoist with fixed hook suspension, available in 110V, 230V or 400V. Industrial-grade lifting capacity from 250kg to 3000kg, high-duty FEM 2m rating, IP65 pendant control and lifetime-lubricated gearbox, ideal for demanding professional lifting applications.
From: £2,874.83£3,449.80 Exc VATInc VAT
Description
The CM Lodestar Electric Chain Hoist with fixed hook suspension is a proven industry leader for high-duty industrial lifting. Engineered in the USA and trusted worldwide, the Lodestar is widely recognised in the hire, manufacturing and production sectors as the go-to solution where reliability, durability and long heights of lift are critical.
Designed for tough environments, this professional electric chain hoist combines robust construction with excellent thermal performance. The tough yet lightweight aluminium alloy housing fully encloses mechanical and electrical components, delivering superior protection while promoting efficient heat dissipation during continuous operation.
With lifting capacities ranging from 250kg to 3000kg, the Lodestar fixed suspension hoist is suitable for a broad range of industrial lifting tasks—from workshop material handling to production line support. Its FEM 2m duty classification (40% duty cycle) ensures dependable performance in frequent-use applications.
The unit is supplied with adjustable upper and lower limit switches as standard, helping protect both operator and equipment during lifting operations. The IP65 rated 48V low-voltage pendant control enhances operator safety while providing precise load control.
Maintenance requirements are minimal thanks to the lifetime-lubricated gearbox and accessible service design. The hoist’s excellent closed height also makes it particularly suitable where headroom is limited.
Available ex-stock in 110V single phase, 230V single phase and 400V three phase configurations, the CM Lodestar offers exceptional flexibility for UK industrial environments.
Technical Specification
Model Operating voltage Capacity (kg) Number of chain falls Lifting speeds (m/min) Chain dimensions (d x p mm) Hoist motor (kW) Maximum height of lift 56tpi Maximum height of lift 64tpi
C 230v or 110v 1ph 50Hz 250 1 8 6.3 x 18.9 0.37 79 90
F 230v or 110v 1ph 50Hz 500 1 4 6.3 x 18.9 0.37 39 45
J 230v or 110v 1ph 50Hz 500 1 8 7.9 x 21.7 0.75 48 55
L 230v or 110v 1ph 50Hz 1000 1 4 7.9 x 21.7 0.75 48 55
LL 400v 3ph 50Hz 1000 1 8 7.9 x 21.7 0.75 98 112
LL2 400v 3ph 50Hz 1000 1 8/2.5 7.9 x 21.7 0.75 98 112
R 230v or 110v 1ph 50Hz 2000 2 2 7.9 x 21.7 0.75 25 35
RR 400v 3ph 50Hz 2000 2 4 7.9 x 21.7 0.75 25 35
RR2 400v 3ph 50Hz 2000 2 4/1.3 7.9 x 21.7 0.75 25 35
RT 230v or 110v 1ph 50Hz 3000 3 1.33 7.9 x 21.7 0.75 17 23
Safety & User Instructions
Always ensure the hoist capacity exceeds the load weight before lifting.
Installation must be carried out by a qualified lifting equipment professional.
Inspect load chain, hook and safety latch before each use.
Never exceed the rated duty cycle or safe working load.
Ensure the suspension point is structurally adequate and certified.
Disconnect power before maintenance or servicing.
Operators should be trained in safe hoist operation and relevant UK lifting regulations (LOLER).
Use appropriate PPE during installation and operation.
Recommended Applications
Hire and rental fleets
Factory production lines
Workshop lifting
Industrial maintenance
Warehousing and logistics
Entertainment rigging (model dependent)
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2t, 3t, 250kg, 500kg |
| Lifting Speed (m/min) | 1.33, 2, 4/1.3, 4, 8, 8/2.5 |
| Power | 110v, 240v, 400v |
