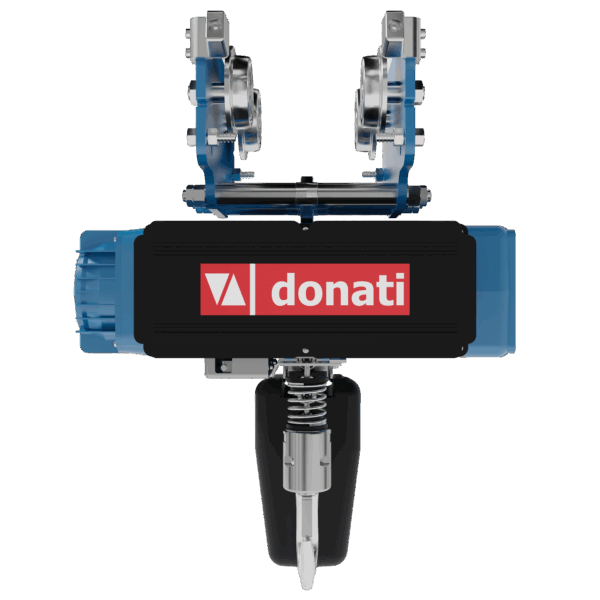

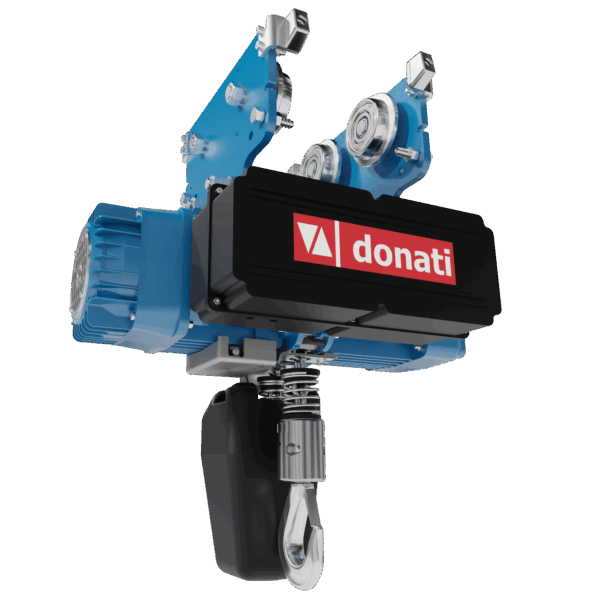

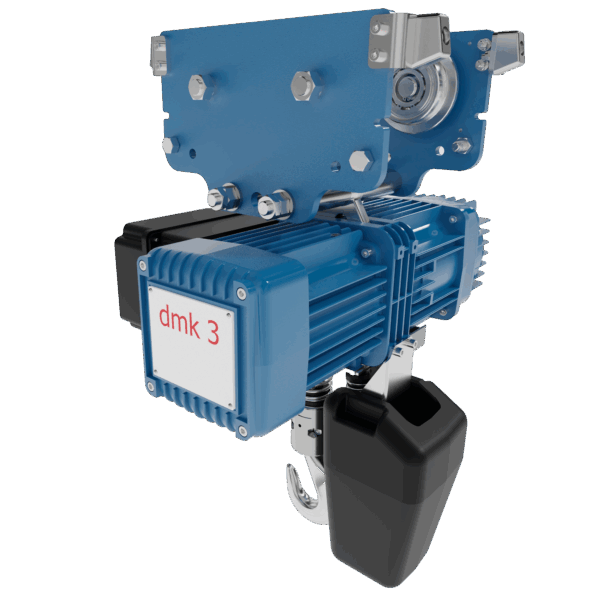

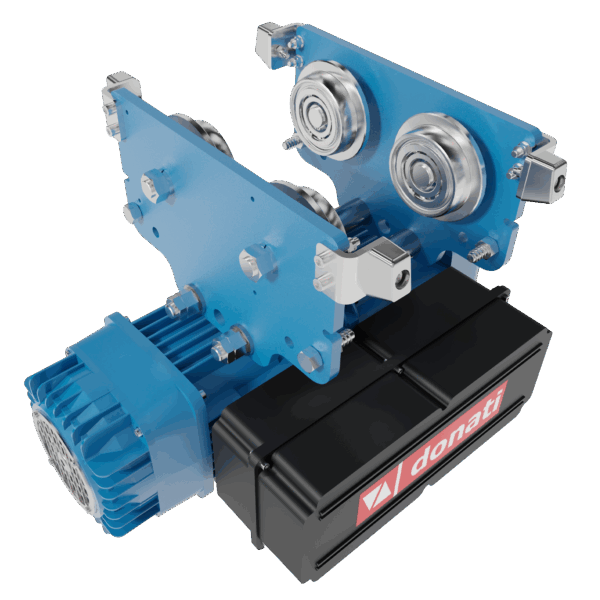

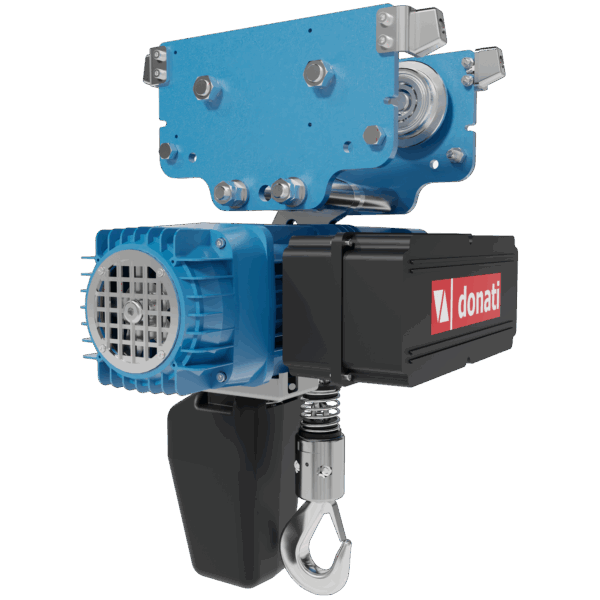

Donati DMK Electric Chain Hoist – Hand Push Trolley Mounted – Up to 4,000 kg
DON-ECHDMK-HPT
The Donati DMK Electric Chain Hoist with Hand Push Trolley is a reliable manual travel lifting solution for overhead crane systems. With capacities up to 4,000 kg working load limit, this electric chain hoist with push trolley delivers smooth, precise load positioning for workshops, warehouses, and industrial environments.
From: £2,080.10£2,496.12 Exc VATInc VAT
Description
The Donati DMK Electric Chain Hoist with Hand Push Trolley is a versatile and cost-effective industrial lifting solution designed for applications requiring manual horizontal movement along a beam. Combining Donati’s trusted DMK hoist mechanism with a durable hand-operated trolley, this system provides smooth, controlled load handling without the need for powered travel.
Why Choose a Donati Electric Chain Hoist?
With a working load limit ranging from 100 kg to 4,000 kg, this hoist is ideal for a wide range of environments, including engineering workshops, maintenance facilities, warehouses, and light industrial operations. Its manual trolley design makes it particularly suitable for applications where precise positioning, lower usage frequency, or budget-conscious installations are key considerations.
At the heart of the system is the Donati DMK electric chain hoist, known for its high reliability, safety, and durability. The hoist is equipped with a self-braking conical motor, ensuring that loads are securely held in position when power is removed. This feature enhances operational safety and allows for precise control during lifting and lowering operations.
Discover more Donati electric hoists
Hand Push Trolley Mounted
The hand push trolley allows operators to move loads along the beam with minimal effort, offering smooth and responsive travel. This manual system provides excellent control for positioning loads accurately, making it ideal for tasks requiring careful handling or alignment.
Donati Hoists Proven Reliability
Manufactured using high-grade alloy steel components and precision-machined gearing, the DMK hoist is built to withstand demanding industrial use while maintaining consistent performance over time. The system supports both single-fall and double-fall chain configurations, allowing flexibility based on lifting capacity and application requirements.
Configure Your Donati Chain Hoist
The hoist is available in four core sizes (DMK 1–4), covering a broad range of lifting capacities and duty cycles. With FEM/ISO classifications from 1Bm (M3) to 2m (M5), the system is suitable for both occasional and frequent use in industrial environments.
Operators can choose between single-speed or dual-speed lifting options, enabling both efficient lifting and precise positioning when required. Standard lifting heights are available up to 12 metres, with extended lifting heights available upon request for specialised applications.
Hoists With Built-in Safety Features
Electrical safety is ensured through IP-rated components, including IP55 motor protection, IP65 limit switches, and Class F insulation, providing reliable operation even in challenging environments. The hoist is designed to operate within temperatures ranging from –10°C to +40°C, making it suitable for most indoor industrial settings.
The entire unit is finished with a water-repellent electrostatic paint coating, offering excellent protection against corrosion, humidity, and wear. This ensures long service life and reduces maintenance requirements, even in high-use conditions.
Typical Applications
Engineering and maintenance workshops
Warehousing and storage facilities
Light industrial production areas
Machinery installation and servicing
Assembly operations
General-purpose lifting tasks
Technical information
| Weight | N/A |
|---|---|
| WLL | 125kg, 250kg, 500kg, 1,000kg, 1,600kg, 2,000kg, 2,500kg, 3,200kg, 4,000kg |
| Lifting Speed (m/min) | 2.5/0.8, 3.2, 3.2/1, 4, 4/1.2, 6.3, 6.3/2.1, 8, 8/2.5, 16 |
| Beam Width | 42-200mm, 58-220mm, 74-220mm |
Key Features
- Load Capacity: 100 – 4,000 kg
- Configuration: Electric chain hoist with hand push trolley
- Travel Type: Manual horizontal beam travel
- Motor: Self-braking conical motor, durable and low-maintenance
- Lifting Speed: Single or dual (depending on model)
- Chain Falls: 1 or 2 (depending on load capacity)
- Hook Path: Up to 12 m standard (custom lengths available)
- Protection Ratings: IP55 (motor), IP23 (brake), IP65 (limit switch)
- Power Supply: 400 V three-phase / 230 V single-phase
- Temperature Range: –10 °C to +40 °C
- Noise Level: <85 dB(A) at full load
- Finish: Water-repellent electrostatic paint for corrosion resistance
- Certifications: FEM/ISO 1Bm–2m compliant
Applications: Ideal for maintenance areas, assembly stations, warehouses, and light-duty industrial lifting
Safety & User Instructions
- Never exceed the maximum working load limit (WLL).
- Installation must be carried out by qualified lifting equipment professionals.
- Ensure operators are trained in safe lifting and hoist operation.
- Inspect the chain, hooks, and trolley system regularly for wear or damage.
- Do not move loads manually unless the path is clear and safe.
- Always use approved lifting accessories and certified rigging equipment.
