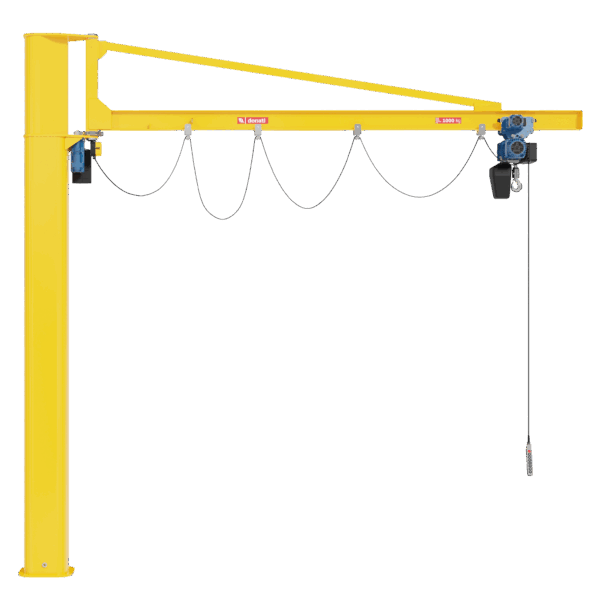

Donati CBE Powered Slew Jib Crane – Overbraced – 280° Rotation – 250kg-2t WLL
DON-PSCMJCH-OBCBE
The Donati CBE H-Version Powered Slewing Column Jib Crane is a high-performance electric industrial jib crane with controlled 280° powered rotation. Designed for heavy-duty handling up to 2,000 kg working load limit, this overbraced jib crane system delivers smooth, safe, and precise lifting for workshops, warehouses, and fabrication environments.
Price on request
Description
The Donati CBE Series H-Version Overbraced Powered Slewing Column Jib Crane is a robust and technologically advanced industrial lifting solution engineered for environments where manual rotation is impractical due to frequent lifting cycles, heavy loads, or workspace obstructions. Featuring electrically powered slewing up to 280°, this jib crane ensures smooth, controlled movement and significantly reduces operator effort while improving safety and efficiency.
Why Choose a Donati CBE Overbraced Jib Crane?
Designed for demanding industrial use, the H-Version is constructed using a laminated double T-beam jib supported by one or two high-strength staybolts, providing exceptional structural rigidity, extended outreach, and increased load capacity. With a working load limit ranging from 250 kg to 2,000 kg, and jib lengths from 4 m to 8 m, this system is ideal for manufacturing plants, warehouses, marine yards, fabrication workshops, loading docks, and assembly areas.
Discover the full range of Dontai Hoists
Donati Robust Crane Construction
The crane’s rotation system is engineered for precision and durability, featuring a rolling-bearing mounted pivot assembly that ensures smooth slewing under load. At the heart of the system is a vertical motor reducer with sealed epicyclic gearing, operating in an oil bath for long-term reliability. A self-braking conical motor provides secure load holding and controlled stopping, while a drive sprocket engages with the toothed crown of the jib for positive, accurate rotation control.
To enhance operational smoothness, a frequency inverter system regulates acceleration and braking, ensuring progressive and stable movement even under varying load conditions. This results in reduced mechanical stress, improved handling precision, and extended service life of all rotating components.
Donati Jib Crane & Electric Hoist Pairing
Pairing the Donati GBR Column Mounted Electric Jib Crane with a Donati electric hoist creates a powerful and fully integrated lifting solution.
The hoist moves smoothly along the jib arm while the crane provides 360° powered rotation, allowing precise lifting, positioning, and load transfer across a wide working area. This combination improves efficiency, reduces manual handling, and enhances operator safety.
Using a Donati hoist also ensures full compatibility and reliable performance, making it ideal for demanding industrial, logistics, and marine environments.
Discover the full range of Dontai Hoists
Jib Cranes With Built-in Safety Features
The CBE H-Version is equipped with a comprehensive low-voltage electrical control system (48V) designed to enhance operator safety. The system includes dual control panels (with optional single panel configuration), shockproof pendant controls, and a multipolar festoon cable system for reliable power and signal transmission. Optional enhancements include independent sliding pendants, acoustic alarms, and extended electrical interface options, allowing full customisation to site requirements.
Safety and control are further enhanced with electrical rotation limit switches as standard, ensuring precise control over the working envelope and preventing over-rotation in restricted environments.
Built for reliability, ease of installation, and long-term performance, the Donati CBE H-Version represents a premium solution in powered slewing jib crane technology, offering consistent performance in high-intensity industrial environments.
Typical Applications
- Industrial manufacturing and production lines
- Warehousing and logistics operations
- Marine and shipyard environments
- Fabrication and engineering workshops
- Loading and unloading stations
- Assembly and maintenance areas
Technical information
| WLL | 1.6t, 1t, 2t, 250kg, 500kg |
|---|---|
| Mounting Option | Foundation Bolts & Template, Counter Plate for Concrete Slab |
Key Features
- Donati electrically powered slewing – 280° rotation
- Overbraced H-Version arm for maximum strength and reach
- Standard capacities: 250–2,000 kg
- Jib lengths: 4 m, 5 m, 6 m, 7 m, 8 m
- Laminated double T-beam jib with staybolts
- Rolling-bearing mounted rotation system
- Epicyclic motor-reducer with self-braking motor
- Frequency inverter for smooth, controlled slewing
- Low-voltage (48 V) control circuits for operator safety
- Festooned multipolar cable system for hoist/trolley
- Shockproof pendant control with optional quick-connect plug
- Optional independent sliding pendant along jib
- Electrical rotation limit switches supplied as standard
- Acoustic alarm option
- Main isolator switch with padlock facility
- Designed for use in areas with restricted access and fixed obstacles
Safety & User Instructions
- Never exceed the maximum working load limit (WLL).
- Installation must be carried out by qualified structural and electrical engineers.
- Ensure the foundation and column anchoring system are correctly designed and secured.
- Operators must be trained in safe jib crane operation and load handling procedures.
- Regularly inspect rotation system, electrical components, and structural joints.
- Maintain clear working areas during operation to avoid collision or entanglement risks.
