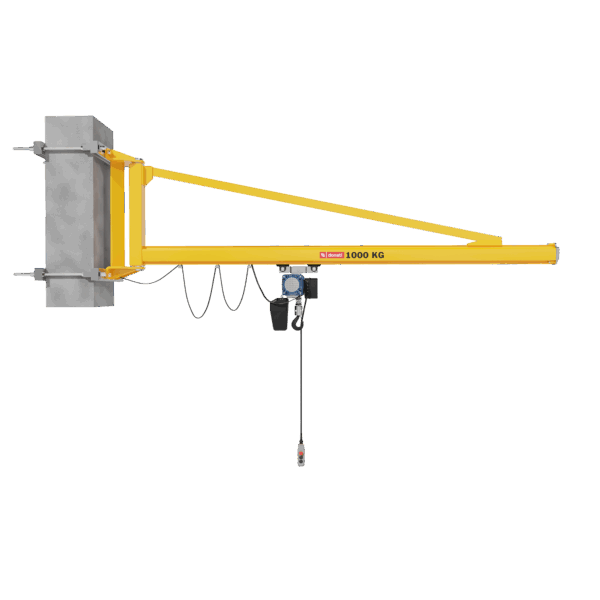

Donati GBP Wall-Mounted Jib Crane – Overbraced – Channel Profile – 270° Rotation – 63kg-1t WLL
DON-CWMJCS-OBGBP
The Donati GBP S-Type Wall Mounted Jib Crane is a lightweight manual slewing jib crane system with a channel profile arm and 270° rotation. Designed for loads from 63 kg to 1,000 kg, this space-saving wall-mounted crane delivers smooth, low-effort lifting for workshops and industrial environments.
Price on request
Description
The Donati GBP S-Type Wall Mounted Jib Crane is a highly efficient and space-saving manual slewing lifting solution, engineered for workshops, production areas, and light industrial environments where floor space optimisation and smooth handling are essential. Designed with advanced materials and precision engineering, this crane provides a reliable and ergonomic solution for everyday material handling tasks.
Why Choose a Dontai Light Weight Jib Crane?
With a working load limit ranging from 63 kg to 1,000 kg and jib lengths between 2 m and 7 m, the GBP S-Type offers excellent flexibility for a wide variety of lifting applications. Its wall-mounted configuration allows installation directly onto existing structural supports, eliminating the need for floor-mounted columns and maximising available workspace.
A standout feature of this model is its innovative channel profile jib arm, manufactured from special cold-rolled steel. This design delivers a unique combination of high rigidity, reduced weight, and a smooth running surface, ensuring optimal performance and long-term durability. The lightweight structure significantly reduces rotational inertia, allowing for exceptionally smooth and effortless manual slewing.
270° Manual Jib Crane Rotation
The crane provides up to 270° manual rotation, offering wide operational coverage while maintaining easy control for the operator. This makes it ideal for multi-station workflows, where loads need to be moved efficiently between different positions within a defined working area.
Donati Quite Operation Integrated Trolley
Integrated within the jib arm is a high-performance internal trolley system, designed for quiet, precise, and low-friction movement. The trolley runs on plastic wheels mounted on rolling bearings, ensuring silent operation and smooth travel along the beam. Specially inclined sliding surfaces further reduce resistance, enhancing ease of use and minimising wear over time.
The advanced trolley design includes pin and joint load connections, improving load distribution and overall safety. It also offers the capability to handle horizontal loads up to 10% of the vertical capacity, making it suitable for handling off-centre loads or dynamic movements within the working area.
Overbraced Jib Crane Design
The overbraced design of the GBP S-Type adds further strength and stability, ensuring consistent performance even under frequent use. Despite its lightweight construction, the crane maintains excellent durability, making it a dependable solution for daily industrial operations.
Donati Designed for Versatility
Compatibility with both manual push trolleys and lightweight electric trolley systems provides additional flexibility, allowing the crane to be tailored to specific operational needs. This makes it suitable for both occasional lifting tasks and repetitive handling applications.
Donati Jib Crane Durability
Manufactured to high industry standards, the Donati GBP S-Type is built for long service life, minimal maintenance, and reliable performance. Its combination of compact design, smooth operation, and robust construction makes it an ideal choice for businesses seeking a practical and efficient wall-mounted lifting solution.
Donati Jib Crane & Electric Hoist Pairing
Pairing a Donati Jib Crane with a Donati electric hoist creates a powerful and fully integrated lifting solution.
The hoist moves smoothly along the jib arm while the crane provides 270° of manual rotation, allowing precise lifting, positioning, and load transfer across a wide working area. This combination improves efficiency, reduces manual handling, and enhances operator safety.
Using a Donati hoist also ensures full compatibility and reliable performance, making it ideal for demanding industrial, logistics, and marine environments.
Discover the full range of Dontai Hoists
Typical Applications
- Workshops and fabrication environments
- Production and assembly lines
- Maintenance and service areas
- Warehouses and storage facilities
- Light industrial lifting operations
- Confined workspaces requiring efficient handling
Technical information
| WLL | 1t, 63kg, 125kg, 250kg, 500kg, 800kg |
|---|
Key Features
- Working Load Limit: 63 kg – 1,000 kg
- Wall-mounted manual slewing jib crane
- 270° rotation for wide-area coverage
- Channel profile jib arm (cold-rolled steel)
- Lightweight design for effortless operation
- Internal trolley system for smooth, silent movement
- Plastic wheels with rolling bearings for reduced friction
- Overbraced structure for enhanced stability
- Handles up to 10% horizontal load capacity
- Compatible with manual and light electric trolleys
Safety & User Instructions
- Do not exceed the maximum working load limit (WLL).
- Ensure installation is carried out by qualified professionals onto a structurally suitable wall.
- Verify that the supporting structure can handle crane loads and dynamic forces.
- Operators should be trained in safe lifting and manual crane operation.
- Regularly inspect trolley system, beam profile, and mounting points.
- Keep the working area clear to avoid obstruction during rotation.
