Donati GBA Push Slew Jib Crane – Overbraced – Channel Profile – 300° Rotation – 63kg-1t WLL
DON-CCMJCS-OBGBA

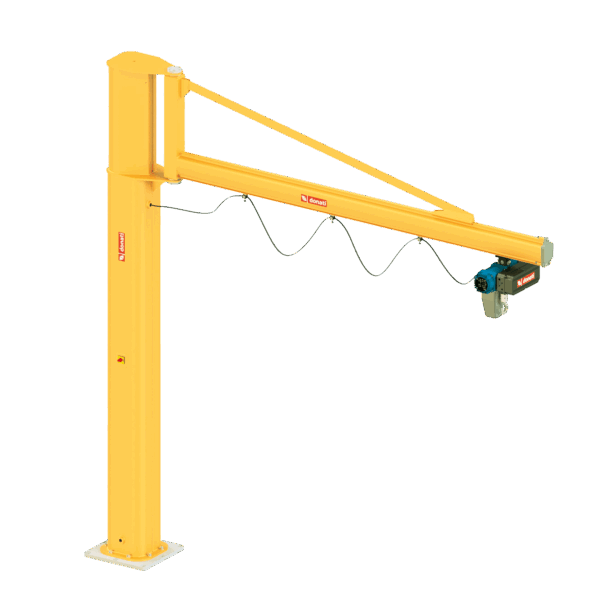

The Donati GBA S-Type Column Jib Crane is a lightweight, high-performance manual slewing jib crane with a channel profile arm and 300° rotation. Designed for loads from 63 kg to 1,000 kg, this pillar-mounted jib crane ensures smooth, low-effort lifting for workshops and light industrial applications.
Price on request
Description
The Donati GBA S-Type Column Jib Crane is a precision-engineered manual slewing lifting solution designed for light to medium-duty industrial applications where smooth handling, low operator effort, and high reliability are essential. Combining advanced design with high-quality materials, this crane is ideal for workshops, fabrication areas, assembly lines, and general industrial environments.
Why Choose a Dontai GBA Light Weight Jib Crane?
With a working load limit ranging from 63 kg to 1,000 kg and jib lengths from 2 m to 7 m, the GBA S-Type offers exceptional flexibility for a wide range of material handling tasks. Its column-mounted (pillar-mounted) configuration allows installation in open floor areas, making it suitable for facilities where wall mounting is not practical or where flexible positioning is required.
A key feature of this model is its innovative channel profile jib arm, manufactured from special cold-rolled steel. This design provides a smooth running surface, excellent structural rigidity, and reduced overall weight, resulting in enhanced performance and easier operation. The lighter structure reduces inertia during rotation, enabling effortless manual slewing and improving operator ergonomics.
Discover the full Donati jib crane range
Excellent 300° Manual Jib Crane Rotation
The crane delivers an impressive 300° manual rotation, allowing wide coverage of the working area. This makes it easy to move loads between multiple workstations, improving workflow efficiency and reducing manual handling time.
Donati Quite Operation Integrated Trolley
Inside the jib arm, the crane incorporates a high-performance internal trolley system, designed for quiet, smooth, and low-resistance movement. The trolley features plastic wheels mounted on rolling bearings, combined with specially inclined sliding surfaces that minimise friction. This ensures silent operation and consistent performance, even during frequent use.
The advanced trolley design also enhances safety and durability. With pin and joint load connections, the system provides improved load distribution and stability during operation. Additionally, the trolley is capable of handling horizontal loads up to 10% of the vertical capacity, offering increased flexibility for handling off-centre loads or dynamic movements.
Overbraced Jib Crane Design
The overbraced design of the GBA S-Type further improves structural integrity, ensuring reliable performance across a wide range of applications. Despite its lightweight construction, the crane maintains excellent strength and durability, making it a dependable solution for daily industrial use.
Donati Designed for Versatility
Compatible with manual push trolleys and lightweight electric trolley systems, the crane can be configured to meet specific operational requirements. This versatility makes it suitable for both occasional lifting tasks and repetitive handling operations.
Donati Jib Crane Durability
Manufactured to the highest standards, the Donati GBA S-Type is designed for long service life, minimal maintenance, and consistent performance. Its combination of lightweight construction, smooth operation, and robust engineering makes it an ideal choice for businesses seeking an efficient and user-friendly lifting solution.
Donati Jib Crane & Electric Hoist Pairing
Pairing a Donati Jib Crane with a Donati electric hoist creates a powerful and fully integrated lifting solution.
The hoist moves smoothly along the jib arm while the crane provides 300° of manual rotation, allowing precise lifting, positioning, and load transfer across a wide working area. This combination improves efficiency, reduces manual handling, and enhances operator safety.
Using a Donati hoist also ensures full compatibility and reliable performance, making it ideal for demanding industrial, logistics, and marine environments.
Discover the full range of Dontai Hoists
Typical Applications
- Workshops and fabrication areas
- Light manufacturing environments
- Assembly and production lines
- Maintenance and service stations
- Warehouses and storage facilities
- General light-duty industrial lifting
Technical information
| WLL | 1t, 63kg, 125kg, 250kg, 500kg, 800kg |
|---|---|
| Mounting Option | Foundation Bolts & Template, Counter Plate for Concrete Slab |
Key Features
- Working Load Limit: 63 kg – 1,000 kg
- Column-mounted manual slewing jib crane
- 300° rotation for wide working coverage
- Channel profile jib arm (cold-rolled steel)
- Lightweight design for low-effort operation
- Internal trolley system for smooth, quiet travel
- Plastic trolley wheels with rolling bearings
- Reduced friction for effortless movement
- Overbraced structure for enhanced stability
- Compatible with manual and light electric trolleys
Safety & User Instructions
- Do not exceed the maximum working load limit (WLL).
- Ensure installation is carried out by qualified professionals with appropriate foundation fixing.
- Verify that the column base and anchoring system are secure.
- Operators must be trained in safe manual handling and crane operation.
- Regularly inspect trolley system, beam profile, and rotation components.
- Maintain a clear working area to prevent collision or obstruction during slewing.
