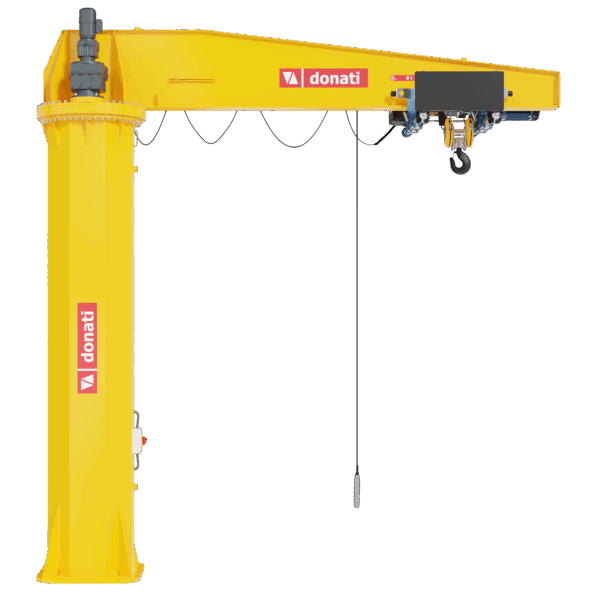

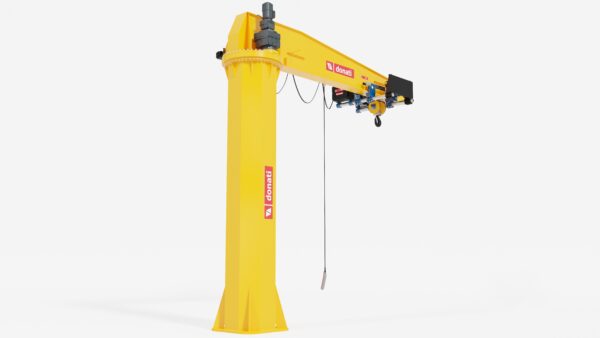

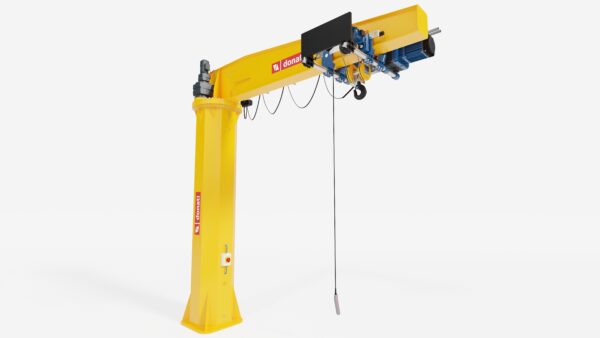

Donati GBR Powered Slew Column Jib Crane – 360° Rotation – 1t–10t WLL
DON-ERCMJC-GBR
The Donati GBR Column Mounted Electric Jib Crane is a heavy-duty 360° slewing crane system designed for industrial applications. With capacities up to 10,000 kg working load limit and jib lengths up to 10.5 m, this electric jib crane delivers powerful, precise lifting for outdoor, marine, and industrial environments.
Price on request
Description
The Donati GBR Column Mounted Electric Jib Crane is a high-performance industrial lifting solution engineered for continuous-duty applications requiring full 360° rotation, precision handling, and exceptional structural strength. Designed to operate in demanding environments, this electrically powered jib crane delivers reliable performance across a wide range of industries, including manufacturing, logistics, marine operations, and heavy engineering.
Why Choose a Donati Heavy Duty Jib Crane?
With a working load limit ranging from 1,000 kg to 10,000 kg, the GBR column-mounted jib crane is ideal for handling medium to heavy loads in loading bays, harbours, depots, vehicle handling areas, and large-scale production facilities. Its ability to rotate through a full 360° ensures maximum coverage and operational flexibility, allowing operators to move loads efficiently across large working areas.
At the core of the system is a heavy-duty motoreducer and thrust-bearing assembly, specifically designed to handle the complex forces generated during lifting operations. This includes axial forces, radial loads, and tilting moments, ensuring smooth and stable rotation even under maximum load conditions. The self-braking geared motor provides controlled acceleration and deceleration, enabling precise positioning and enhanced operational safety.
Discover the full Donati jib crane range
Donati Robust Crane Construction
The crane column is constructed from press-forged welded steel with an octagonal profile, delivering exceptional rigidity and structural stability. This robust design minimises deflection and ensures consistent performance, even in harsh industrial environments. The rotating jib arm is available in either a rolled I-beam or a fully welded box beam configuration, depending on application requirements. Both options provide excellent flexural and torsional strength, ensuring smooth and reliable load movement.
Donati Jib Crane & Electric Hoist Pairing
Pairing the Donati GBR Column Mounted Electric Jib Crane with a Donati electric hoist creates a powerful and fully integrated lifting solution.
The hoist moves smoothly along the jib arm while the crane provides 360° powered rotation, allowing precise lifting, positioning, and load transfer across a wide working area. This combination improves efficiency, reduces manual handling, and enhances operator safety.
Using a Donati hoist also ensures full compatibility and reliable performance, making it ideal for demanding industrial, logistics, and marine environments.
Discover the full range of Dontai Hoists
Jib Cranes With Built-in Safety Features
Designed with operator safety and usability in mind, the GBR jib crane incorporates a low-voltage electrical control system, reducing risk during operation. The system includes high-quality contactors, festoon cable management, and a durable pendant control station, allowing intuitive and precise crane operation.
For applications requiring controlled rotation, electrical limit switches can be installed to restrict the slewing range. Alternatively, a collector ring system can be fitted to enable continuous 360° rotation without cable twisting, making it ideal for high-frequency or repetitive operations.
Dontai Engineer Cranes for Vesatility
This jib crane is engineered for versatility and durability, with optional features such as acoustic warning systems, single or dual control panels, and foundation frames with anchoring bolts. These options allow the crane to be tailored to specific site requirements, ensuring optimal performance and safety.
Finished with a high-quality, corrosion-resistant coating, the Donati GBR crane is suitable for both indoor and outdoor installations, including marine and coastal environments where exposure to harsh conditions is a concern.
Typical Applications
- Industrial production and manufacturing plants
- Ports, harbours, and marine environments
- Loading bays and logistics depots
- Vehicle handling and maintenance areas
- Steel fabrication and heavy engineering
- Outdoor material handling operations
Technical information
| WLL | 1,000kg, 2,000kg, 3,200kg, 4,000kg, 5,000kg, 6,300kg, 8,000kg, 10,000kg |
|---|---|
| Mounting Option | Foundation Bolts & Template |
Key Features
- Donati-engineered 360° electrically powered rotation jib crane
- Capacities: 1,000–10,000 kg WLL
- Jib lengths from 4 m–10.5 m
- Continuous rotation available with collector ring
- Heavy-duty thrust-bearing rotation system
- Self-braking geared motor with progressive start/braking
- Octagonal press-forged steel Donati column for maximum rigidity
- Rolled I-beam or welded box beam jib (model dependent)
- Low-voltage electrical control circuits for operator safety
- Pendant control station with festoon cable system
- Electrical limit switches to define rotation field
- Optional acoustic alarm
- Optional single or dual control panel setup
- Foundation frame with anchoring bolts available
- Designed for harsh environments including outdoor and marine use
Safety & User Instructions
- Never exceed the maximum working load limit (WLL).
- Ensure installation is completed by qualified structural and lifting engineers.
- Confirm that the foundation and anchoring system are correctly specified and installed.
- Operators must be trained in safe jib crane operation and load handling procedures.
- Carry out routine inspections of rotation mechanisms, electrical systems, and structural components.
- Keep operational areas clear of personnel during lifting and slewing operations.
