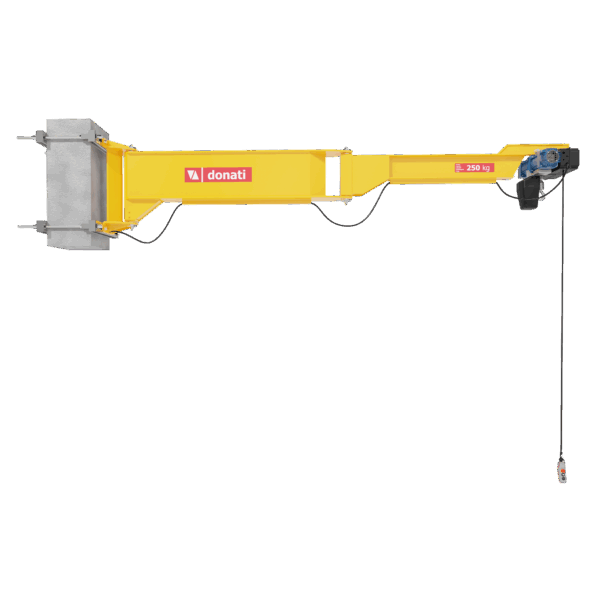

Donati MBB Wall-Mounted Articulated Jib Crane – 360° Rotation – 125kg-500kg
DON-CWMAJC-MBB
The Donati MBB Wall Mounted Articulated Jib Crane is a flexible articulated jib crane system with 360° manual rotation. Designed for loads from 125 kg to 500 kg, this dual-arm wall-mounted crane enables precise lifting around obstacles in confined industrial spaces.
Price on request
Description
The Donati MBB Wall Mounted Articulated Jib Crane is an advanced and highly adaptable manual lifting solution, specifically engineered for environments where space restrictions, obstacles, or complex layouts limit the use of traditional jib cranes. With its innovative articulated design, this crane provides exceptional flexibility, making it ideal for workshops, factories, assembly areas, and construction environments.
Why Choose a Donati MBB Articulated Jib Crane?
Designed with a working load limit from 125 kg to 500 kg and jib lengths ranging from 3 m to 7 m, the MBB Series offers a versatile solution for light to medium-duty lifting applications. Its wall-mounted configuration allows it to be installed directly onto existing structures, helping to maximise floor space and maintain efficient workflow layouts.
Discover the full range of Dontai Hoists
Articulated Jib Crane Arm
The defining feature of the MBB crane is its articulated jib arm, which consists of two hinged segments arranged in a pantograph-style configuration. This unique design allows the crane to navigate around obstacles, reach into confined areas, and provide precise load positioning that would not be possible with conventional single-arm jib cranes.
The first arm (tie-side) is mounted to the wall bracket and rotates around the primary axis, while the second arm (cantilever-side) is connected via a hinged joint with a planarity regulation system. Each arm segment can rotate independently, enabling full articulation and enhanced manoeuvrability. This allows the crane to cover a significantly larger and more complex working area, including reaching behind columns, machinery, or structural elements.
Maximum Operational Coverage
With a full 360° manual rotation, the MBB articulated jib crane offers maximum operational coverage. The combination of rotation and articulation ensures that loads can be positioned accurately and efficiently, even in environments with restricted access or multiple obstructions.
Donati Jib Crane Durability
Constructed using cantilevered girders and reinforced rotation tubes, the crane delivers excellent strength, stability, and durability. The arm operates on its own axis via high-quality bearings, ensuring smooth, low-resistance movement during operation. The absence of staybolts further enhances usability by maximising available hook height and reducing structural interference.
Donati Built for Versatility
The crane is compatible with manual hoists and lightweight trolley systems, making it suitable for a wide range of lifting tasks. Its ergonomic design reduces operator effort while maintaining high levels of control and safety during handling operations.
Manufactured to the highest standards, the Donati MBB Series ensures long-term reliability, minimal maintenance, and consistent performance, even in demanding industrial environments. Its ability to operate effectively in tight, obstructed, or complex spaces makes it a valuable addition to any facility looking to improve efficiency and flexibility in material handling.
Donati Jib Crane & Electric Hoist Pairing
Pairing the Donati MBB wall-mounted articulated Jib Crane with a Donati electric hoist creates a powerful and fully integrated lifting solution.
The hoist is fixed to the jib arm while the crane provides 360° rotation, allowing precise lifting, positioning, and load transfer across a wide working area. This combination improves efficiency, reduces manual handling, and enhances operator safety.
Using a Donati hoist also ensures full compatibility and reliable performance, making it ideal for demanding industrial, logistics, and marine environments.
Discover the full range of Dontai Hoists
Typical Applications
- Workshops with restricted space
- Manufacturing and production environments
- Assembly and maintenance stations
- Construction and installation sites
- Facilities with structural obstacles or machinery
- Confined industrial workspaces
Technical information
| WLL | 125kg, 250kg, 500kg |
|---|
Key Features
- Working Load Limit: 125 kg – 500 kg
- Wall-mounted articulated jib crane system
- 360° manual rotation for maximum coverage
- Dual-arm articulated (pantograph) design
- Independent rotation of both arm segments
- Ideal for navigating around obstacles and tight spaces
- Cantilevered design without staybolts
- Smooth operation with bearing-mounted rotation system
- Maximised hook height and working flexibility
- Compact, space-saving wall-mounted installation
Safety & User Instructions
- Do not exceed the maximum working load limit (WLL).
- Ensure installation is carried out by qualified professionals on a structurally suitable wall.
- Verify that the mounting structure can support dynamic crane loads.
- Operators must be trained in safe lifting and articulated crane operation.
- Regularly inspect hinge joints, rotation bearings, and arm structure.
- Ensure the working area is clear of obstacles that could interfere with arm articulation and rotation.
