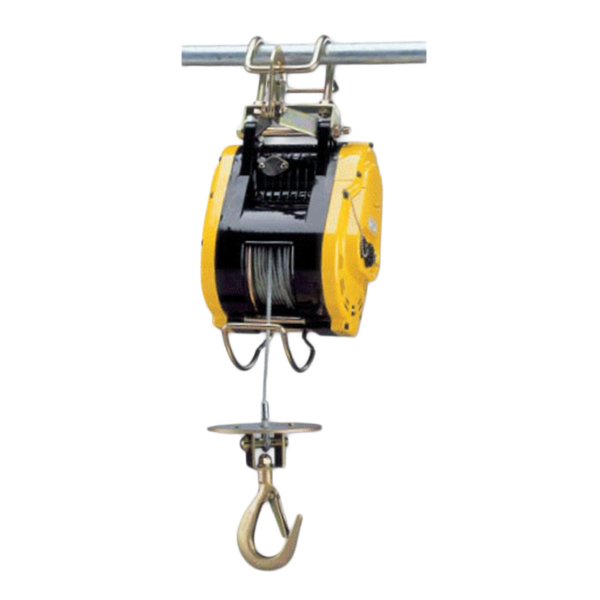

BHW CWS Mini Electric Scaffold Hoist – 80kg-300kg WLL (110v/240v)
BHW-EW-CWS
BHW compact electric scaffold hoist, 80–300 kg WLL, 110V or 240V single-phase. Designed for scaffold lifting with anti-overwind limiter, safety hook, pendant control, and galvanised wire rope for safe construction site material handling.
Price on request
Description
Compact Scaffold Hoist for Temporary Access and Site Lifting
The BHW CWS Mini Electric Scaffold Hoist (80–300 kg WLL) is a lightweight, compact, and high-efficiency lifting solution designed specifically for scaffold-based lifting applications and temporary access systems. Suitable for use on construction sites, maintenance projects, and installation work, it provides safe and reliable vertical lifting up to 30 metres.
80–300 kg Working Load Limit (WLL) with Multiple Capacity Options
Available in multiple capacities (80 kg, 160 kg, 230 kg, and 300 kg models), and powered via standard 110V or 240V single-phase supply, the CWS scaffold hoist is designed for flexibility across UK site conditions. The 110V models are transformer-compatible for enhanced on-site safety, while the 240V versions offer direct connection for convenience.
Automatic Overwind Limiter for Enhanced Rope Protection
A key safety feature of the CWS range is the integrated automatic overwind limiter, which prevents the wire rope from being pulled excessively into the hoist casing during lifting. In addition, a reverse winding limiter prevents incorrect spooling, protecting both the hoist and wire rope from damage.
The hoist is fitted with a dynamic and mechanical braking system, ensuring immediate and secure load holding during operation. This dual braking design enhances safety and provides controlled lifting and lowering performance even under repeated use.
Supplied with Galvanised Non-Spin Wire Rope (7×18 Construction)
Each unit is supplied with galvanised non-spin wire rope (7×18 construction), offering improved durability, reduced twisting, and extended service life in demanding site environments. A 360° swivel safety hook with integrated latch is included as standard for secure load attachment.
Scaffold-Specific Safety Locking System for Secure Mounting
Designed specifically for scaffold use, the hoist features a spring-loaded scaffold safety locking system that ensures secure attachment to scaffold structures. This improves stability and reduces the risk of accidental detachment during lifting operations.
IP65-Rated 10m Pendant Control with Emergency Stop
Control is provided via a 10-metre IP65-rated plug-in pendant with two-button operation and emergency stop, allowing precise control from a safe working position. A 5-metre power lead with commercial plug is included for quick installation.
Optional Scaffold Jib Arm and Radio Remote Control System
Optional accessories include a scaffold-mounted jib arm with 180° rotation (load tested up to 230 kg), pendant control extensions, and a plug-and-play radio remote system for improved operational flexibility.
Fully Compliant with BS EN Standards, CE & UKCA Certified Design
Manufactured in accordance with BS EN 14492 hoist standards and fully CE and UKCA certified, the BHW CWS Mini Electric Scaffold Hoist is a trusted solution for safe, efficient, and compliant lifting in scaffold environments.
Technical Specifications
- Capacity: 80 kg / 160 kg / 230 kg / 300 kg
- Voltage: 110V / 240V single-phase AC
- Motor: IP44 brush-type motor
- Brake System: Dynamic + mechanical brake
- Wire Rope: Galvanised non-spin (7×18)
- Control: 10 m pendant (IP65, 2-button + emergency stop)
- Power Lead: 5 m with commercial plug
- Hook: 360° swivel safety hook with latch
- Mounting: Scaffold-mounted with safety lock
- Compliance: BS EN 14492
- Certification: CE & UKCA marked
Applications
- Scaffold lifting on construction sites
- Building maintenance and repair work
- Facade installation and roofing projects
- Light construction material handling
- Temporary access and site lifting systems
Technical information
| WLL | 160kg, 230kg, 300kg, 80kg |
|---|---|
| Power | 110v, 240v |
Key Features
- Working Load Limit (WLL): 80 kg – 300 kg (model dependent)
- Power Supply: 110V or 240V single-phase
- Designed specifically for scaffold lifting applications
- Automatic overwind limiter for rope protection
- Reverse winding limiter for added safety
- Dynamic + mechanical braking system
- Supplied with galvanised non-spin wire rope (7×18)
- 360° swivel safety hook with latch
- Spring-loaded scaffold safety locking system
- 10 m IP65 pendant control with emergency stop
- 5 m power lead with plug (110V or 240V)
- Lightweight, compact and easy to install
- Optional scaffold jib arm (up to 230 kg)
- CE & UKCA certified (BS EN 14492 compliant)
Safety & User Instructions
- Always select correct WLL (80–300 kg) for the application
- Ensure scaffold structure is rated and certified for hoist use
- Inspect wire rope, hook, and limiter systems before use
- Never exceed rated load capacity under any circumstances
- Maintain proper rope spooling at all times
- Do not use for lifting personnel
- Ensure secure scaffold attachment using safety lock system
- Keep clear of suspended loads during operation
- Wear appropriate PPE including helmet, gloves, and safety boots
- Disconnect power before servicing or inspection
- Follow BS EN 14492 and site-specific safety regulations
