Yale Electric Winch RPE Series for Lifting & Pulling Loads ? Compact Industrial Design – 250kg?2t WLL

Description

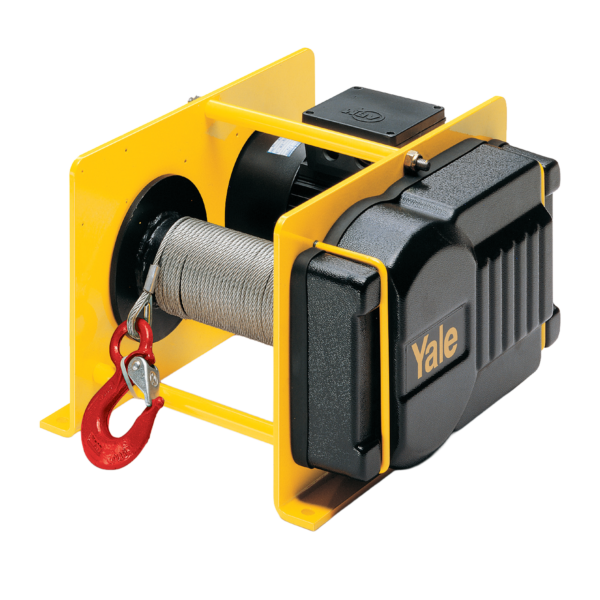

The Yale RPE Electric Winch is engineered for efficiency, durability, and operator safety. Its compact cube design and universal rope lead-offs allow flexible installation in nearly any position, making it ideal for lifting, pulling, or tensioning loads in confined spaces or on complex lifting setups. The winches are designed to DIN 15020, classification 1 Bm/M3, and comply with the EC Machinery Directive, ensuring reliable and standardised performance.

Available in capacities from 250 kg to 2000 kg, the RPE winches are suitable for lightweight applications up to medium-duty industrial lifting. Each unit undergoes factory overload testing and is supplied with a test certificate detailing the serial number and manufacturer declaration. A comprehensive operating manual is also included, providing guidance on safe and efficient operation.

The RPE features a spring pressure disc brake integrated into the motor, which securely holds loads even in the event of a power failure. Its internal brake motor and compact design reduce overall dimensions while maintaining performance. The winch?s spur gear transmission with helical first gear ensures smooth and quiet operation. Lubricated with grease, the RPE can be installed in any orientation without affecting performance or longevity.

For overload protection, select models (RPE 10-6 and RPE 20-6) include an adjustable slip clutch, safeguarding the winch and load in high-stress scenarios. The winch drum is designed with a plain rope recess, allowing multi-layer winding without damage to the rope, ensuring safe, efficient, and long-lasting use.

The RPE is available with either standard voltage controls or 42 V low-voltage control, including push-button with emergency stop and a 2 m control cable for added operator safety. The units support multiple drum lengths (L, XL, LR, XLR) for increased rope capacity, making the RPE adaptable to specific site requirements.

Wire rope compatibility covers diameters from 4 mm for the 250 kg model up to 12 mm for the 2000 kg variant, with optional rope lengths from 5 m to 100 m. Yale also supplies replacement ropes and accessories for quick maintenance or adaptation to specific lifting setups.

Compact, robust, and reliable, the Yale RPE Electric Winch is trusted by professionals who require precision, repeatable performance, and advanced safety features in lifting and pulling operations across industrial, construction, and logistical applications.

Safety / User Instructions
Ensure the winch is correctly rated for the intended load.
Do not exceed the stated capacity.
Inspect the rope, drum, brake, and mechanical connections before each use.
Use only trained and competent personnel in accordance with UK lifting and machinery regulations.
Low-voltage control must be used according to manufacturer instructions.
Do not use the winch for passenger lifting applications.
