Yale CFY, CMY, CCY Hydraulic Couplers ? Quick-Connect High-Pressure Hydraulic Fittings
YAL-HYA-CFY
Self-sealing hydraulic couplers for leak-free connection of hydraulic cylinders and hoses. Includes female, male, and complete coupler halves.
From: £5.87£7.04 Exc VATInc VAT
Description
The Yale hydraulic couplers are designed for safe, leak-free operation in hydraulic systems. Their self-sealing design ensures that no hydraulic fluid leaks when uncoupled, and the coupler halves can be closed hand-tight.

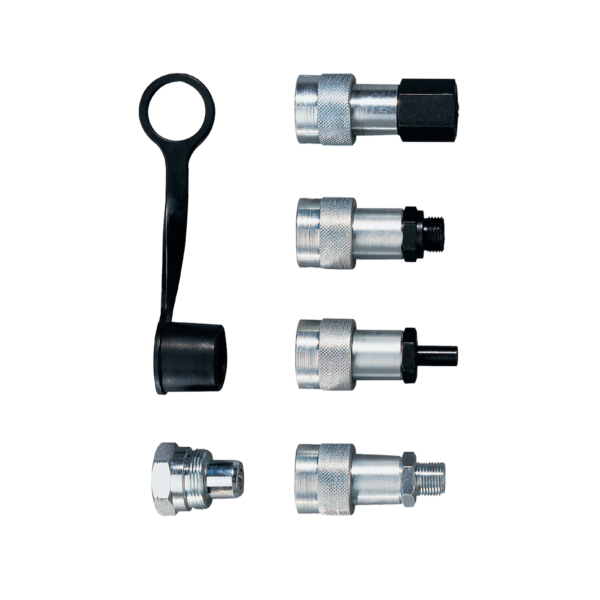

All Yale hydraulic cylinders are equipped with the standard female coupler half CFY-1 and a rubber dust cap CDF-9. The range includes female coupler halves, male coupler halves, and complete coupler sets, making them suitable for all high-pressure hydraulic connections.
Important: Hydraulic couplers must always be fully closed to allow the hydraulic circuit to operate correctly.
Technical data
Model Art.-No. Description Oil port thread Pressure max bar
CFY-1 N14200166 Coupler half, female 3/8-NPT, outer 700
CFY-2 N14200482 Coupler half, female 3/8-NPT, inner 700
CFY-18 N14200420 Coupler half, female M18 x 1.5, outer 700
CFY-10-S N14200814 Coupler half, female Pipe ? 10 mm 700
CMY-1 N14200167 Coupler half, male 3/8-NPT, inner 700
CCY-1 N14200165 Coupler halves, female+male 3/8-NPT 700
CDF-9 N14200396 Dust cap, rubber ? ?
Typical applications
Hydraulic cylinder connections
High-pressure hydraulic systems
Portable hand pumps and power packs
Laboratory and test stands
Hose and manifold connections
Technical information
| Weight | N/A |
|---|---|
| Configuration | Female 3/8-NPT Outer, Female 3/8-NPT Inner, Female M18x1.5 Outer, Female Pipe ?10mm, Male 3/8-NPT Inner, Female+Male 3/8-NPT, Rubber Dust Cap |
