Yale HHC Hydraulic Hoses ? High-Pressure Hoses for Pumps, Cylinders, and Power Packs
YAL-HYA-HHC

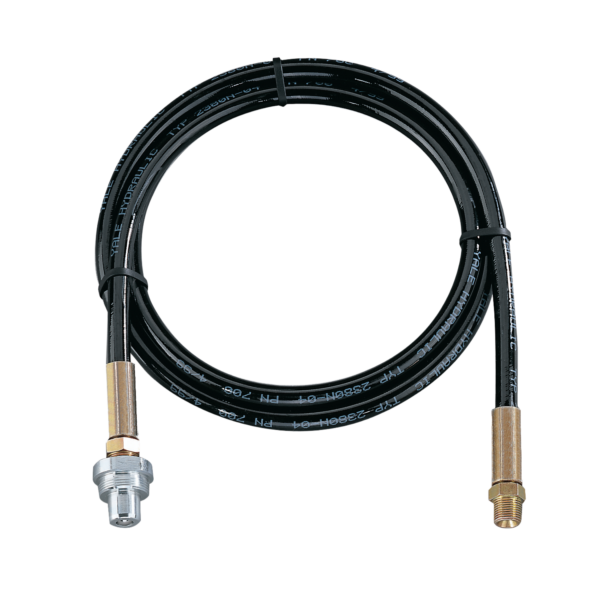

Yale HHC High-Pressure Hydraulic Hoses ? Durable, high-performance hoses with 4-layer construction and dual steel fabric reinforcement for minimal expansion under pressure. Each hose includes a male coupler half (CMY-1) for easy connection to pumps, cylinders, or hydraulic systems. Available in standard or custom lengths, with options for full coupler connections or extensions. Ideal for reliable, long-lasting hydraulic performance.
From: £103.82£124.58 Exc VATInc VAT
Description
Yale HHC hydraulic hoses are designed for high-performance and long service life in hydraulic systems. The hoses feature a 4-layer construction including 2 layers of high-tensile steel fabric, ensuring very low volumetric expansion and robust performance under high pressure.
Each hose comes standard with a male coupler half (CMY-1), making them ready for immediate connection to hand pumps, cylinders, or other hydraulic components.
Ordering options:
Standard hose (HHC-?): For pump-to-cylinder connections (male coupler half included).
Complete coupler connection: Add CCY-1 for hoses with couplers on both ends (recommended for long hoses).
Hydraulic extension hose: Add CFY-2 female coupler half for one-end connection.
Hose without couplers: Order model HH-? with threaded nipples on both ends.
Hoses are available in standard lengths, and custom lengths or larger diameters can be quoted on request.
Technical data
Model Art.-No. Length (m) Operating pressure (bar) Burst pressure (bar) Connection 1 Connection 2 External ? mm Bend radius min. mm Width mm
HHC-5 N14200330 0.5 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-10 N14200300 1 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-20 N14200151 2 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-30 N14200331 3 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-40 N14200152 4 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-60 N14200209 6 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-80 N14200313 8 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-100 N14200332 10 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-120 N14200702 12 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
HHC-150 N14200703 15 700 2.8 ? 700 3/8-NPT outer CMY-1 14 100 6.3
Technical information
| Weight | N/A |
|---|---|
| Length | 0.5m, 1m, 2m, 3m, 4m, 6m, 8m, 10m, 12m, 15m |
