Yale YHP Hydraulic 3-Grip Puller Sets ? 10 to 25 Tonne Capacity

Description

The Yale YHP 3-Grip Hydraulic Puller Sets are professional-grade hydraulic pulling systems engineered for the safe removal and installation of press-fitted or heat-fitted components in demanding industrial environments. Designed to eliminate hammering, heating and improvised methods, these puller sets significantly reduce component damage, maintenance time and machine downtime.

Available in 10 tonne, 15 tonne and 25 tonne capacities, the YHP 3-Grip range is ideal for removing gears, belt pulleys, sprockets, flywheels, couplings, shafts and axles. Each set can be configured as either a 3-jaw or 2-jaw puller, offering maximum flexibility across a wide range of pulling applications.

All mechanical components are manufactured from high-quality drop-forged steel, delivering exceptional strength, wear resistance and long service life. The hydraulic pulling force is applied via a high-performance hollow hydraulic cylinder, allowing controlled, even force distribution directly through the centre of the component being removed.

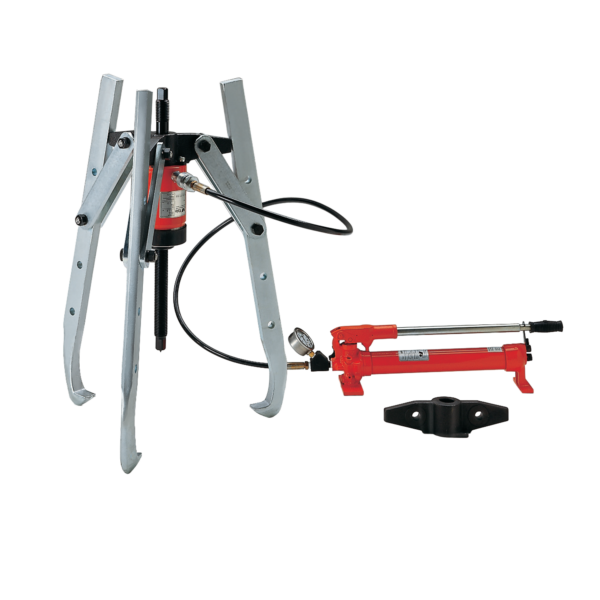

Every complete YHP 3-Grip puller set is supplied ready to use, including all hydraulic and mechanical components required for immediate operation. The system includes a hydraulic hand pump, 2-metre high-pressure hydraulic hose with quick-connect coupler, and a pressure gauge to accurately monitor pulling force and prevent overload. This ensures maximum safety, precision and repeatability during use.

By applying smooth, controlled hydraulic force, YHP puller sets help prevent damage to shafts, housings and surrounding components. This makes them particularly suitable for maintenance engineers, repair workshops, heavy industry, power generation, manufacturing and plant maintenance environments.

The modular design allows individual components to be replaced or reused, providing excellent long-term value and adaptability. All sets are supplied in a robust storage case, ensuring safe transport and organised storage of tools on site or in workshops.

Safety & user instructions
Always ensure jaws are correctly aligned and evenly positioned
Do not exceed the maximum rated pulling force
Monitor pulling force continuously using the supplied pressure gauge
Ensure hydraulic connections are fully secured before pressurising
Never apply shock loads or hammering during hydraulic operation
Wear appropriate personal protective equipment (PPE)
Inspect jaws, cylinder and hose for damage before use

Available models
YHP-262 G ? 10 tonne 3-Grip Hydraulic Puller Set
YHP-362 G ? 15 tonne 3-Grip Hydraulic Puller Set
YHP-562 G ? 25 tonne 3-Grip Hydraulic Puller Set

Typical applications
Gear and pulley removal
Shaft and axle extraction
Flywheel and coupling removal
Industrial maintenance and overhaul work
Workshop and field service operations
