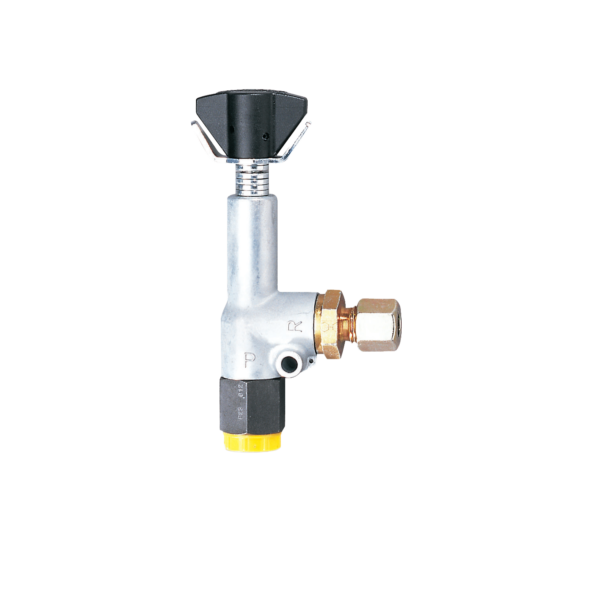

Yale VPR Adjustable Pressure Relief Valve ? 0 to 700 Bar Hydraulic Protection

Description

The Yale VPR pressure relief valve is a high-precision hydraulic safety component designed to limit and stabilise system pressure in high-pressure hydraulic circuits up to 700 bar. It ensures that the force generated by the connected hydraulic cylinder never exceeds a predefined safe value.

Once the preset pressure level is reached, the valve opens automatically and diverts excess hydraulic oil back to the reservoir, maintaining a pressureless return path and preventing overload of the hydraulic system.

Thanks to its precise adjustment capability and excellent repeat accuracy, the VPR relief valve is ideal for applications where reliable and repeatable pressure limitation is critical, such as lifting, pressing and testing operations.

Function and operating principle
The VPR pressure relief valve is installed in the pressure line of a hydraulic circuit or power pack. The maximum allowable system pressure is set manually via the adjustment mechanism.
As pressure builds, the valve remains closed
When the preset pressure is reached, the valve opens
Excess oil is routed directly back to the reservoir
System pressure is stabilised at the set value

Selection of the correct relief valve is determined by the displacement of the high-pressure stage of the power pack, ensuring safe and efficient system operation.

Typical applications
System pressure limitation for hydraulic power packs
Protection of hydraulic cylinders from overload
Pressing and crimping applications
Lifting and hoisting systems
Hydraulic testing and inspection equipment
Safety circuits in industrial hydraulic installations

Technical highlights
Pressure range: 0 ? 700 bar
Valve type: Precision pressure relief valve
Operating principle: Automatic oil diversion to tank
Length: 120 mm
Diameter: 40 mm
Hydraulic symbol: Pressure relief valve

Safety & user instructions
Installation must be performed by qualified personnel only.
Always set the relief pressure below the maximum system rating.
Ensure the return line is connected pressure-free to the reservoir.
Never adjust the valve while the system is under load.
Periodically verify pressure settings as part of maintenance.
