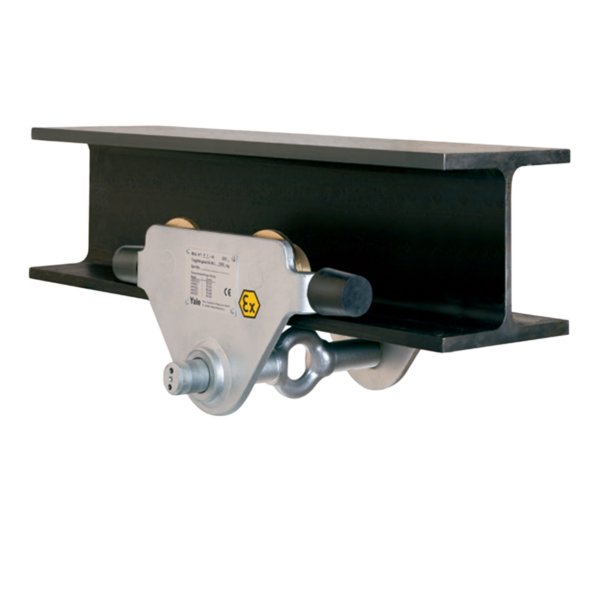

Yale ATEX Basic Push and Geared Beam Trolley ? Explosion-Protected, 500kg?5t (HTP / HTG)
YAL-HTP-HPG-ATEX-T
The Yale HTP and HTG ATEX Basic push and geared trolleys are certified explosion-proof beam trolleys designed for safe load positioning in hazardous ATEX Zone 2 and Zone 22 environments. With capacities from 500 kg to 5,000 kg, these robust trolleys provide smooth, controlled traversing of loads on a wide range of beam profiles while meeting strict ATEX safety requirements.
From: £357.33£428.80 Exc VATInc VAT
Description
The Yale HTP / HTG ATEX Basic trolley range has been specifically engineered for use in potentially explosive atmospheres where conventional trolleys are not permitted. Certified to II 3G Ex h IIA T4 Gc and II 3D Ex h IIA T135øC Dc, these trolleys are suitable for gas and dust hazardous areas commonly found in chemical processing, energy production, manufacturing, offshore, and industrial maintenance environments.
Available as either a push trolley (HTP ATEX Basic) or a geared trolley (HTG ATEX Basic), the range allows users to select simple manual movement or precise controlled travel via hand chain, depending on application requirements. Capacities cover 500 kg to 5,000 kg as standard, with higher explosion-proof versions up to 20,000 kg available on request.
The trolleys are manufactured from high-quality steel components and feature precision-machined steel wheels mounted on pre-lubricated, encapsulated ball bearings. This ensures exceptionally smooth running, reduced rolling resistance, and reliable performance even under continuous industrial use. The wheel design supports beam inclines of up to 14% (DIN 1025 ? Part 1), making the trolleys suitable for straight beams and gentle curves.
Both push and geared versions are adjustable to suit a wide range of beam widths and profiles, including INP, IPE and IPB sections. Adjustment is straightforward and secure, ensuring correct centring of the hoist on the beam to prevent side drift. Optional locking devices are available to secure the trolley in a fixed parking position when not in use.
Designed with safety as a priority, the Yale ATEX trolley range offers durable construction, predictable travel characteristics and compliance with ATEX regulations, making it a dependable solution for lifting and traversing loads in hazardous locations.
Safety / user instructions
– Suitable only for use in ATEX Zone 2 (gas) and Zone 22 (dust) environments as certified.
– Always ensure beam dimensions, flange width and thickness are compatible with the selected trolley model before installation.
– Installation and maintenance must be carried out by competent personnel in accordance with ATEX and local safety regulations.
– Not designed or approved for passenger lifting applications.
– Regular inspection and maintenance are essential, especially when used in hazardous or corrosive environments.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2t, 3t, 5t, 500kg |
| Trolley Type | Geared Travel, Push Travel |
| Beam Width | 160-300mm, 180-300mm, 50-220mm, 66-220mm, 74-220mm, 90-220mm |
