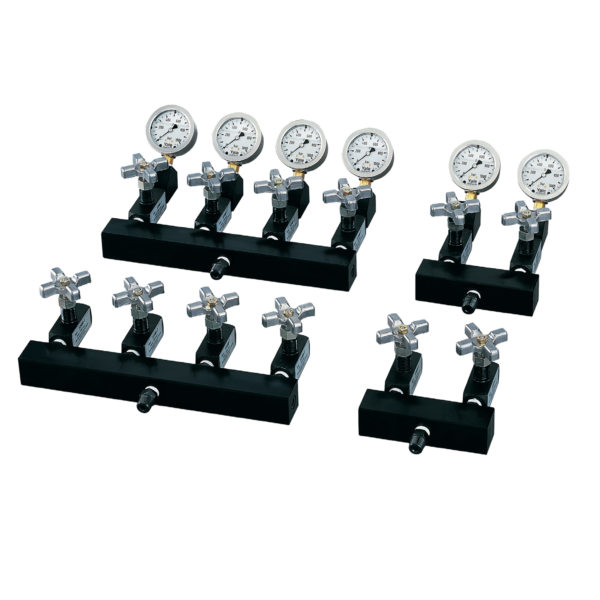

Yale MY Hydraulic Manifolds with Shut-Off Valves ? 700 Bar Flow Control and Isolation
YAL-HYM-MY+
Yale MY high-pressure hydraulic manifolds with shut-off valves, 700 bar. Allow independent pressure control for multiple cylinders. Optional pressure gauges available for monitoring individual loads.
From: £320.25£384.30 Exc VATInc VAT
Description
The Yale MY hydraulic manifolds with shut-off valves are designed for applications where different pressures must be maintained across multiple hydraulic lines, allowing safe and precise lifting of unequal loads. Rated for up to 700 bar, these manifolds can be screwed directly onto a hand pump or power pack for immediate use.
Each manifold is fully assembled and may be combined with a short hose HHC-10 and coupler half CFY-1 for flexible installation. Models with the GYA suffix include integrated pressure gauge sets (GYA-63) for continuous monitoring of each individual cylinder?s load.
These manifolds are ideal for multi-cylinder lifting operations, industrial jacking, maintenance, and testing setups, where precise control over each cylinder is required.
Function and operating principle
Provides independent shut-off control for each hydraulic line
Allows unequal load lifting with precise pressure regulation
Integrated pressure gauge sets (GYA models) enable real-time load monitoring
Can be directly attached to hand pumps or electric hydraulic power packs
Compatible with short hoses and couplers for flexible installations
Typical applications
Lifting multiple cylinders with unequal loads
Multi-point jacking and pressing operations
Maintenance and industrial lifting setups
Hydraulic testing with load monitoring
Applications requiring precise pressure control per cylinder
Technical highlights
Model Description Oil Ports / Shut-off Valves Pressure Gauges Weight (kg)
MY-22 2-way manifold with 2 shut-off valves 2 ? 1.8
MY-44 4-way manifold with 4 shut-off valves 4 ? 3.7
MY-66 6-way manifold with 6 shut-off valves 6 ? 5.5
MY-22-GYA 2-way manifold with 2 shut-off valves + 2 gauges 2 2 2.8
MY-44-GYA 4-way manifold with 4 shut-off valves + 4 gauges 4 4 5.7
MY-66-GYA 6-way manifold with 6 shut-off valves + 6 gauges 6 6 8.5
Safety & user instructions
Verify manifold is rated for your system pressure (700 bar).
Ensure all shut-off valves are closed before system pressurization.
Use included blind plugs for any unused ports to prevent leaks.
Inspect hoses and couplers for damage before use.
Do not exceed manufacturer?s recommended pressure for connected cylinders.
Technical information
| Weight | N/A |
|---|---|
| Configuration | 2-way M+2 SOV, 4-way M+4 SOV, 6-way M+6 SOV, 2-way M+2 SOV+2 PG, 4-way M+4 SOV+4 PG, 6-way M+6 SOV+6 PG |
