Yale AYS Load-Spreading Plates for YS Hydraulic Cylinders ? Enhanced Stability for Heavy Lifting
YAL-HYC-AYS-LSP

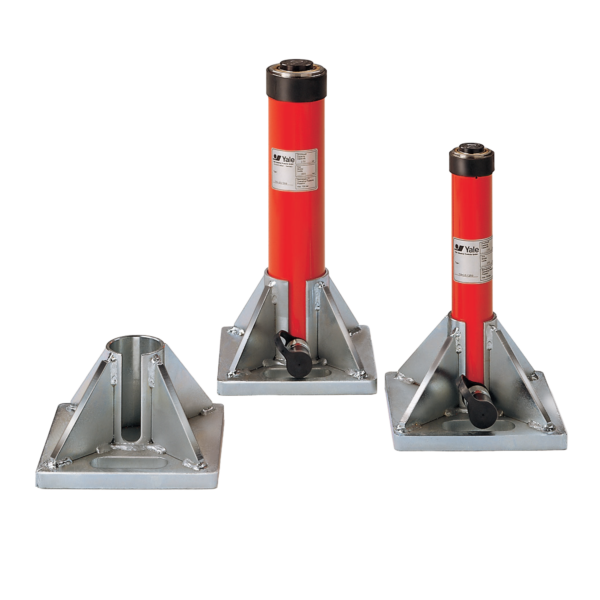

Yale AYS load-spreading plates provide stability and prevent sinking of Yale YS hydraulic cylinders on soft or uneven surfaces. Heavy-duty steel design with carrying handle ensures safe lifting and jacking for industrial applications.
From: £139.31£167.17 Exc VATInc VAT
Description
AYS Load-Spreading Plates are essential accessories for Yale YS-series hydraulic cylinders, designed to enhance stability and prevent cylinders from tipping or sinking during heavy lifting operations. Made from robust steel, these plates distribute the load evenly over a larger surface area, allowing safe lifting even on soft, uneven, or fragile surfaces.
Load-spreading plates are particularly useful when using slim or compact cylinders that could otherwise destabilise under heavy loads. They are ideal for industrial, civil engineering, and shipbuilding applications, where large machinery, containers, structural steel, or modules must be lifted safely and efficiently. Each plate is fitted with a carrying handle for easy transport and positioning on site.
When combined with a cylinder, base adaptor, or piston plate, the load-spreading plate forms a complete support system, improving both safety and operational efficiency. This accessory ensures that cylinders maintain vertical alignment under load, minimising the risk of accidents or damage to the lifted object.
Compatible Models & Specifications
Model Description Suitable Cylinder Weight (kg)
AYS-101 Load-spreading plate 10 t YS-10/? 10.5
AYS-151 Load-spreading plate 15 t YS-15/? 10.5
AYS-231 Load-spreading plate 23 t YS-23/? 10.5
Typical Applications
Stabilising slim or compact hydraulic cylinders
Industrial machinery lifting and jacking
Container handling and positioning
Structural steel and bridge construction
Shipbuilding and heavy-vessel maintenance
Safety & User Instructions
Always place the cylinder on a load-spreading plate when lifting on soft or uneven surfaces
Ensure full contact between the plate and the ground before applying load
Check plate for damage or deformation before each use
Do not exceed the rated cylinder capacity
Keep hands clear from edges during lifting operations
Combine with base adaptors and piston plates for maximum safety
Technical information
| Weight | N/A |
|---|---|
| WLL | 10t, 15t, 23t |
| Compatible With | YS-10, YS-15, YS-23 |
