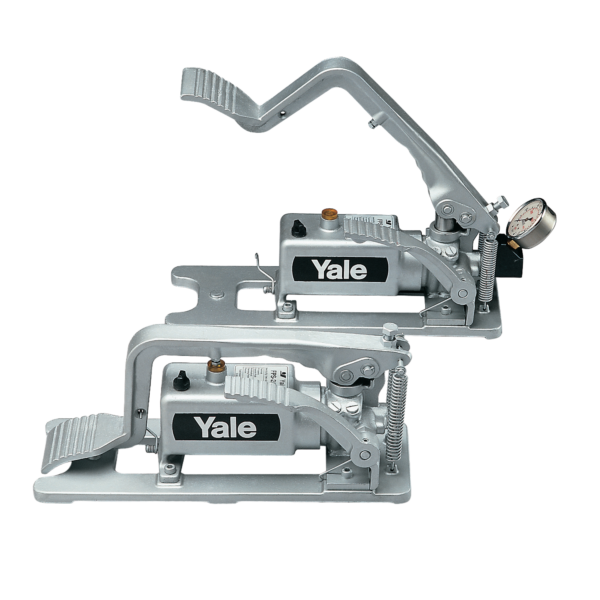

Yale FPS Hydraulic Foot Pump ? 700 Bar Foot-Operated Pump for Single-Acting Cylinders
YAL-HYC-FPS-2/0,5 A
The Yale FPS hydraulic foot pump is a 700 bar, foot-operated pump designed for single-acting cylinders. Ideal for repetitive industrial tasks where hands-free operation, stability and precise pressure control are essential.
£958.87£1,150.64 Exc VATInc VAT
Description
The Yale FPS Hydraulic Foot Pump is a robust, foot-operated power source designed for single-acting hydraulic cylinders in demanding industrial environments. With a maximum operating pressure of 700 bar, it is ideal for applications requiring frequent, repeatable hydraulic cycles while keeping the operator?s hands free.
Unlike hand pumps, the FPS is fully foot controlled, managing both pressure build-up and cylinder return via foot action. This makes it well suited to production, testing and workshop applications such as pressing, crimping, clamping and sample testing, where efficiency, comfort and safety are critical.
A two-stage hydraulic system ???????????? fast piston advance under light load, automatically switching to high-pressure output as resistance increases. This reduces operator effort and cycle times, even during prolonged use.
The pump features a large, heavy-duty base plate for excellent stability during operation, preventing movement or tipping at full pressure. Operating pressure is externally adjustable, and the foot-controlled release valve allows smooth, controlled lowering for precise load handling.
Manufactured from durable steel, the FPS pump is built for long service life while remaining compact and portable. Operating independently of external power sources, it can be used in fixed workshops or temporary work areas. A 3/8 NPT oil port ensures compatibility with Yale hydraulic hoses and single-acting cylinders, with optional pressure gauges available for monitoring system pressure.
Typical Applications
Welding sample testing
Crimping and pressing operations
Actuating hydraulic clamping devices
Repetitive production and assembly tasks
Workshop and maintenance applications requiring hands-free control
Technical Data
Model Max Pressure (bar) 1st Stage (cm?) 2nd Stage (cm?) Usable Reservoir (cm?) Weight (kg)
FPS-2/0,5 A 700 11 2 500 7 958.87
Optional Accessories
Pressure gauges with suitable adaptors
Hydraulic hoses for 700 bar systems
Safety & User Instructions
Use only with single-acting hydraulic cylinders rated for 700 bar
Ensure pump is placed on a stable, level surface before operation
Do not exceed the adjusted operating pressure
Inspect hoses and connections before use
Wear appropriate personal protective equipment
Technical information
| Weight | 7 kg |
|---|
