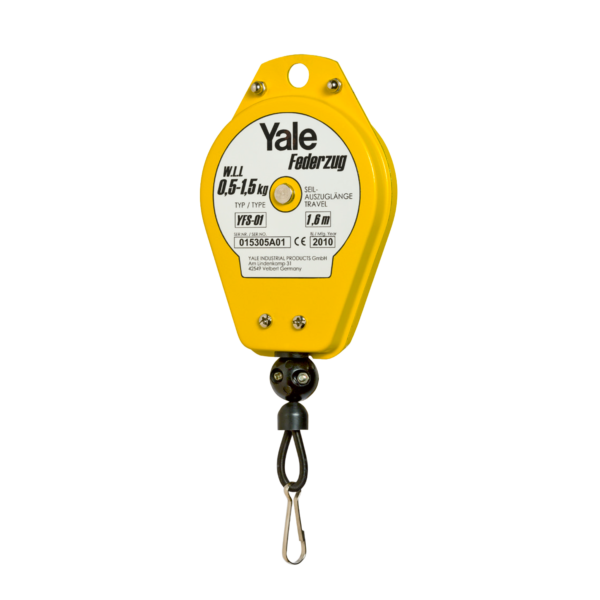

Yale YFS Spring Tensioners ? Automatic Tool Balancers for Cable Retraction and Ergonomic Workstations – 0.5kg?10kg WLL
YAL-YFS-ST
The Yale YFS Spring Tensioner range provides a reliable and ergonomic solution for suspending and retracting tools in industrial and workshop environments. With capacities from 0.5kg to 10kg, YFS spring tensioners automatically retract the cable when no load is applied, helping reduce operator fatigue, improve safety and maintain organised workstations.
From: £48.97£58.76 Exc VATInc VAT
Description
The Yale YFS Spring Tensioners are designed for applications where tools or equipment need to be suspended, positioned and automatically returned to a predefined upper position when released. Commonly referred to as tool balancers, these spring tensioners ensure controlled cable retraction while maintaining constant downward force to keep tools at the desired working height.
Available in five models covering capacities from 0.5kg up to 10kg, the YFS range is ideally suited to light and medium-duty industrial applications such as assembly lines, workshops and production environments. Typical uses include supporting pneumatic power tools, assembly tools, paint spray guns, riveting machines, nut runners, grinding tools and polishing machines.
The internal rewind spring is engineered so that torque output increases progressively as the cable is extended. This ensures smooth, controlled retraction and reliable return of the suspended tool to the uppermost adjusted position when released. To hold a tool in its extended working position, a continuous downward force must be applied, promoting better tool control and reducing strain on the operator.
The YFS spring tensioners feature a durable stamped steel construction with a powder-coated housing, providing excellent resistance to impact, wear and everyday industrial conditions. A wear-resistant nylon rope guide reduces abrasion to both the cable and housing, extending service life and ensuring smooth cable travel.
For enhanced safety, all models are equipped with an automatic drum lock in accordance with DIN 15112. An additional hanger is provided for the attachment of a secondary safety chain, also compliant with DIN 15112 requirements, offering extra security when suspending tools above work areas.

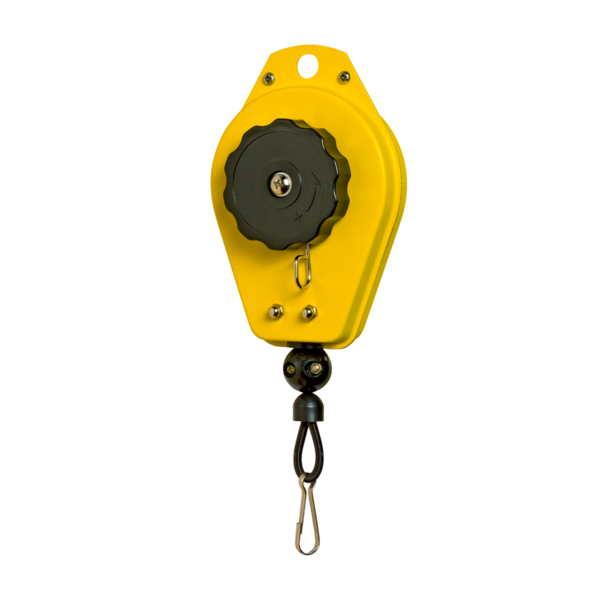

Spring tension adjustment is simple and precise. Models YFS-01 and YFS-02 use a central turning wheel combined with a spring lever, while models YFS-03, YFS-04 and YFS-05 are adjusted via a central shaft and spring lever, allowing accurate matching of spring force to the tool weight. An adjustable cable stop enables the spring tensioner to be fixed at the desired working position.
Selected models within the YFS-A series are available with a ratchet-locking device. This mechanism locks the out-retracting rope, allowing unrestricted tool movement during use. The ratchet function can be switched on or off, giving the flexibility to operate the spring tensioner with or without the locking feature as required.
Supplied with a Declaration of EC Conformity, the Yale YFS Spring Tensioner range delivers trusted Yale quality, improved ergonomics and safer, more efficient tool handling in professional industrial environments.
Safety / User Instructions
Ensure the spring tensioner is correctly rated for the suspended tool weight
Do not exceed the stated minimum or maximum capacity
Always attach a secondary safety chain where required
Inspect the cable, housing and suspension points regularly
Adjust spring tension before use to match tool weight
Use only in accordance with applicable UK and EU safety regulations
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.5kg, 10kg, 3kg, 5kg, 6kg |
