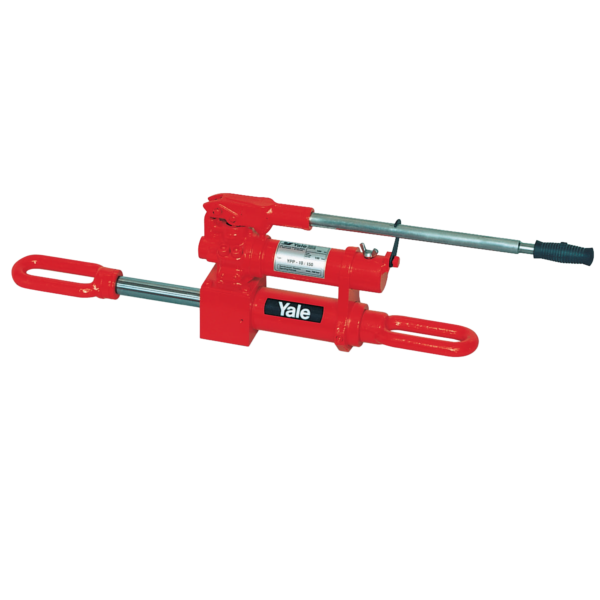

Yale YPPS-10/150 Pull Cylinder with Hand Pump ? 10 Tonne Single-Acting Hydraulic Pull Cylinder, 700 Bar

Description

The Yale YPPS-10/150 Pull Cylinder is a compact, self-contained hydraulic pulling solution designed for professional use in shipbuilding, steel construction, civil engineering and general maintenance. This model combines the proven Yale Chro-Mo Design pull cylinder with an integrated hand pump, allowing precise pulling control without the need for a separate hydraulic power pack.

In its neutral position, the YPPS-10/150 pull cylinder is fully extended. When pressurised, the forged links draw together, generating high pulling force. Once hydraulic pressure is released, the built-in return spring extends the piston automatically. This single-acting design ensures fast and reliable operation with minimal setup.

Constructed from solid chromium-molybdenum steel and fully heat-treated, the YPPS-10/150 offers robust strength and durability for demanding industrial use. The hard chromium-plated piston resists corrosion and wear, while the replaceable heat-treated saddle ensures long service life under heavy loads.

With a maximum operating pressure of 700 bar, the YPPS-10/150 delivers a pulling capacity of 10 tonnes, with a 150 mm stroke and an effective plunger area of 14.2 cmý. The cylinder is designed for precise control and safe operation, with a stop ring rated to full capacity and fitted with a dirt wiper to protect internal components from contamination.

The YPPS-10/150 features forged replaceable links for secure attachment and includes a carrying handle and piston protection cover for safer handling and enhanced durability. The integrated hand pump is similar to the HPS-2/0,7 A, providing a compact, portable solution that is ideal for remote locations, field service and quick maintenance tasks.

Supplied ready to use with a female coupler half CFY-1, the YPPS-10/150 is designed for immediate deployment and easy operation. This model is ideal for applications where portability, precision and high pulling force are required without the complexity of separate hydraulic power units.

Safety & User Instructions
Do not exceed the rated capacity of 10 tonnes or maximum pressure of 700 bar.
Ensure links and attachments are correctly fitted and rated for the load.
Operate in a stable position and avoid side loading.
Inspect seals, couplers and hoses before each use.
Keep piston and contact surfaces clean to prevent seal damage.
Use only compatible Yale hydraulic accessories.
Follow site safety regulations and wear appropriate PPE.
