Yale AYS Base Adaptors for YS Hydraulic Cylinders ? Cylinder Versatility & Stability

Description

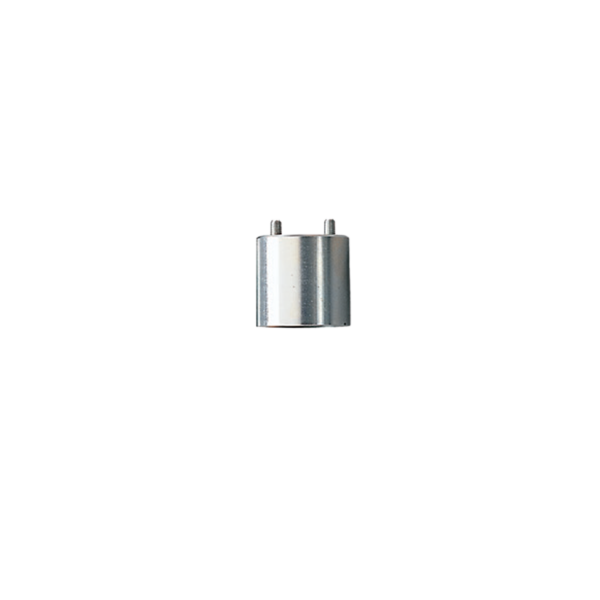

Yale AYS Base Adaptors enhance the functionality and safety of Yale YS-series hydraulic cylinders by providing a secure mounting interface for extension tubes. They enable cylinders to reach greater heights and operate in challenging positions while maintaining stability under high loads.

Manufactured from robust steel, these compact, lightweight adaptors attach directly to the cylinder base using hexagon socket screws, creating a rigid platform for extensions or other accessories. When paired with extension tubes, they increase the versatility of standard cylinders, allowing safe operation on uneven surfaces or in confined spaces.

Base adaptors are ideal for lifting and positioning machinery, steel sections, structural elements and other heavy loads, ensuring proper cylinder alignment and reducing tipping or piston stress. Compatible with multiple Yale YS cylinder models, AYS Base Adaptors deliver precision, safety, and reliability for industrial, construction, and maintenance applications.

Compatible Models & Specifications
Model Description Suitable Cylinder Weight (kg)
AYS-53 Base adaptor, 5 t YS-5/? 0.5
AYS-103 Base adaptor, 10 t YS-10/? 0.7
AYS-153 Base adaptor, 15 t YS-15/? 0.9

Typical Applications
Industrial machinery lifting and positioning
Steel construction and fabrication
Container alignment and maintenance operations
Extension tube mounting for increased cylinder height
Stabilising cylinders on soft or uneven ground
High-load jacking operations

Safety & User Instructions
Ensure the base adaptor is fully secured to the cylinder before use
Use only with compatible YS cylinder models
Do not exceed the rated lifting capacity of the cylinder
Inspect screws and attachment surfaces before each operation
Always position the cylinder on a stable surface before extending load height
Follow all site safety procedures and wear PPE
