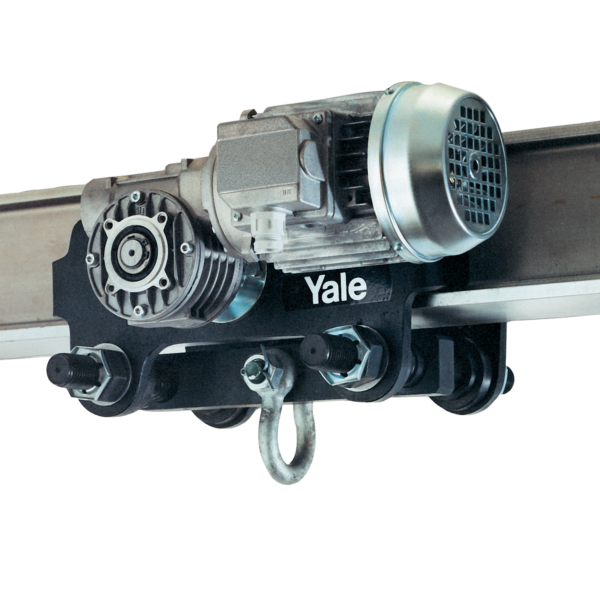

Yale Electric Beam Trolley with Shackle ? Heavy-Duty Motorised Trolley for Long-Distance Travel (VTE-U / VTEF-U), 1t?5t WLL

Description

The Yale VTE-U and VTEF-U Electric Trolleys are engineered for professional lifting operations where controlled, efficient and safe horizontal movement of heavy loads is essential. Designed to integrate seamlessly with most hoists featuring a suspension hook, the universal shackle connection ensures exceptional compatibility across a wide range of lifting equipment.

With capacity ratings from 1000kg up to 5000kg, the VTE-U range is particularly well suited for applications involving frequent load movement or long travel distances, such as manufacturing facilities, steel fabrication plants, warehouses, power stations and heavy engineering environments. The electrically driven travel function significantly reduces operator effort while improving positioning accuracy and productivity.

A key feature of the VTE-U and VTEF-U trolleys is the travel motor with worm gear transmission. This design ensures a smooth start and controlled movement while providing inherent self-braking capability, eliminating the need for a separate motor brake. This not only enhances operational safety but also reduces mechanical complexity and maintenance requirements.

The trolley frame is compact and robust, offering a low overall headroom that maximises available lifting height. Wheels are manufactured from fracture-proof steel and feature precision-machined running surfaces with ball bearing mounting, ensuring exceptionally smooth and quiet travel. The cambered wheel profile allows safe operation on both flat and inclined beam profiles, increasing installation flexibility.

To further enhance safety, anti-drop and anti-tilt devices are fitted as standard. These features help prevent derailment and maintain stable operation even under dynamic load conditions. Beam width adjustment is simple and precise thanks to threaded spindles, allowing the trolley to be easily adapted to a wide range of beam flange widths and profiles.

The standard operating voltage is 400V, 3-phase, 50Hz, making the trolley suitable for most industrial power supplies. The travel motor is protected to IP55 against dust ingress and water jets, while the push-button pendant control is rated to IP65, ensuring reliable operation in harsh working environments.

For applications requiring additional safety or compliance, optional features include 42V low voltage control (LVC) and rubber buffers for end-stop impact protection. Yale?s proven build quality and attention to detail ensure long service life, even under continuous or heavy-duty use.

Safety / User Instructions
Always ensure the trolley capacity matches or exceeds the load being transported.
Do not exceed the stated Working Load Limit (WLL).
Ensure correct adjustment to beam flange width before operation.
Inspect wheels, shackle, electrical components and controls before use.
Do not use Yale trolleys or hoists for passenger lifting under any circumstances.
Operation must comply with UK lifting regulations and be carried out by trained personnel only.
