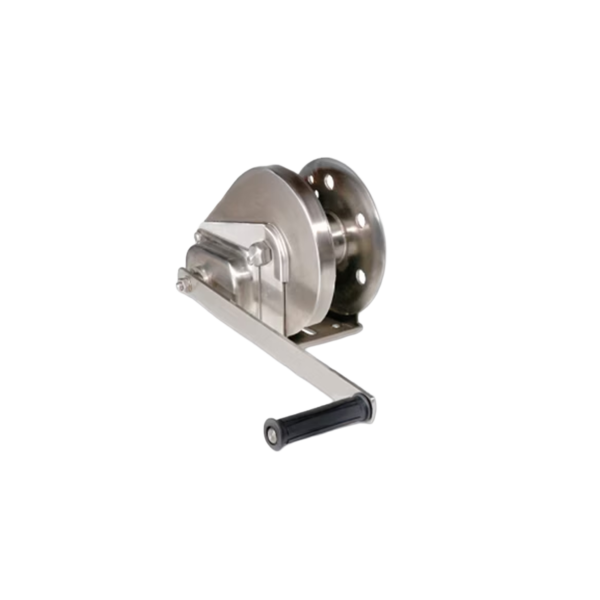

BHW Delta Stainless Steel Hoisting Hand Winch – 440kg-960kg WLL
BHW-DELTA-SS
Price on request
Description
The BHW Delta Stainless Steel Hoisting Hand Winch is a premium-grade manual lifting and pulling solution engineered for environments where corrosion resistance, hygiene, and durability are critical. Designed to deliver reliable performance in demanding conditions, this stainless steel wire rope winch offers safe and controlled handling of loads up to 960kg (first layer capacity).
Stainless Steel Winch
Manufactured entirely from high-quality stainless steel, this winch is ideally suited for marine, offshore, food processing, pharmaceutical, and chemical environments, where exposure to moisture, salt, or corrosive substances is common. Its robust construction ensures long-term resistance to rust and degradation, significantly extending service life compared to standard materials.
Heavy Duty Compact Winch
Despite its heavy-duty capabilities, the winch features a compact and lightweight design, making it easy to transport, install, and operate. The integrated manual ratchet mechanism allows operators to lift or pull loads with precision, while the automatic load-holding brake ensures maximum safety by preventing unintended movement during operation.
The detachable operating handle provides smooth mechanical advantage, transferring applied force efficiently to the drum via a hardened ratchet drive system. This enables controlled lifting and lowering, even in restricted or sensitive working environments.
Easy Mounting Winch Base
Designed with a flat base mounting plate, the winch can be securely fixed to a suitable structural anchor point. Correct alignment with the load direction ensures optimal performance and safe operation during use.
Typical Application
This stainless steel manual hoist winch is widely used across industries requiring clean, corrosion-resistant lifting equipment, including:
- Marine and offshore installations
- Food production and hygiene-sensitive environments
- Chemical processing plants
- Water treatment facilities
- Outdoor and exposed industrial applications
Why Choose the BHW Delta Stainless Steel Hand Winch?
Optional wire rope assemblies are available separately in standard lengths (13m and 20m), with bespoke options available to suit specific project requirements.
Combining corrosion resistance, safety, and ease of use, the BHW Stainless Steel Hand Winch is a dependable solution for professionals requiring reliable manual lifting in challenging environments.
Technical information
| Weight | N/A |
|---|---|
| WLL | 440kg, 660kg, 960kg |
Key Features
- Working Load Limit: 440kg to 960kg (first layer)
- Full stainless steel construction for maximum corrosion resistance
- Integrated ratchet brake system for safe load holding
- Compact, lightweight, and portable design
- Manual operation with detachable handle
- Suitable for lifting and pulling applications
- Hygienic design ideal for clean environments
- Base-mounted for secure installation
- Smooth, controlled operation
- Optional wire rope lengths available
Safety & User Instructions
- Not suitable for lifting personnel
- Always maintain a minimum of 5 wraps of wire rope on the drum
- Ensure mounting is secure and structurally adequate
- Never exceed the rated working load limit (WLL)
- Wear appropriate PPE including gloves and eye protection
- Inspect wire rope regularly for wear or damage
- Do not use as a towing or recovery device
- Avoid shock loading or sudden force application
- Ensure all accessories are correctly rated for the load
- Carry out a full risk assessment prior to operation
