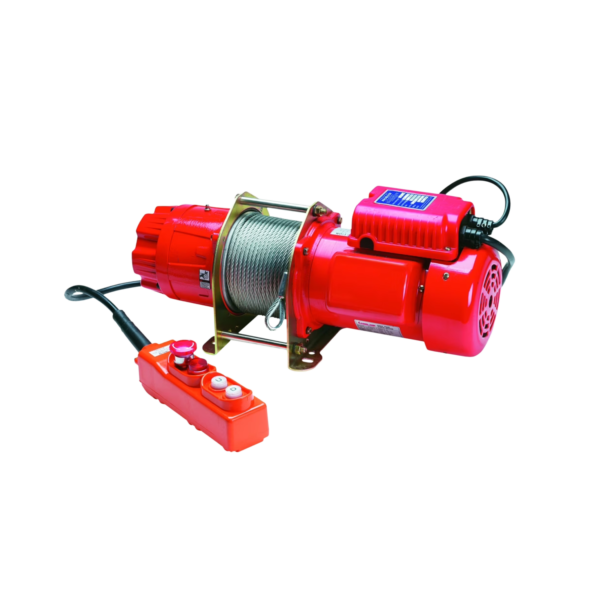

BHW CP Electric Winch Hoist – 250kg-500kg WLL (110v/240v/415v)
BHW-EW-CP
BHW electric winch hoist, 250–500 kg WLL, available in 110V, 240V or 415V. Compact hoist with failsafe brake, pendant control, and galvanised wire rope for safe lifting in industrial, workshop, and commercial applications.
Price on request
Description
Compact Electric Winch Hoist for Versatile Lifting Applications
The BHW CP Electric Winch Hoist (250–500 kg WLL) is a compact, versatile lifting solution designed for safe and efficient hoisting across industrial, commercial, and workshop environments. Available in single-phase and three-phase configurations (110V, 240V, and 415V), this winch range offers flexible installation options to suit a wide variety of applications.
Bi-Rotational Design for Flexible Installation Configurations
Engineered for reliability and ease of use, the CP series features a bi-rotational design, allowing installation with the wire rope exiting from the bottom of the drum. This enhances installation flexibility, particularly in confined or specialist setups.
Electromagnetic Fail-Safe Brake for Maximum Load Holding and Control
Safety is a key feature of the BHW CP winch, incorporating an electromagnetic, spring-applied failsafe brake that provides instant load holding in the event of power loss or emergency stop. This ensures safe operation and secure load control at all times.
Supplied with Galvanised Wire Rope for Durability and Longevity
Each unit is supplied complete with galvanised wire rope for improved corrosion resistance and long service life. The enclosed drum flange prevents the rope from becoming trapped between the drum and casing, reducing wear and improving operational safety.
Robust, Space-Saving Design for Confined Environments
The winch is designed with a compact and robust construction, allowing for straightforward installation in space-restricted environments. Its quiet-running motor ensures minimal noise during operation, making it suitable for indoor use and noise-sensitive areas.
Pendant Control with Emergency Stop for Safe Operation
Control is provided via a 3-metre pendant control, pre-wired to the unit, featuring two-button operation and an emergency stop for safe and precise lifting. A 2-metre power lead is also included for convenient connection.
Multiple Model Variants to Suit Different Requirements
The CP range includes multiple model options:
- CP250: 110V or 240V single-phase
- CP300: 240V single-phase
- CP500: 240V single-phase
- CP500T: 415V three-phase (with low voltage control as standard)
Optional Upgrades Including Remote Control and Weatherproofing
Optional extras such as radio remote control, weatherproof enclosures, and low voltage control systems (standard on 3-phase models) further enhance functionality and adaptability.
Manufactured in accordance with BS EN 14492-2, the BHW CP winch meets the essential requirements of the Machinery Directive and UK Health & Safety legislation. All units are supplied with CE and UKCA marking and a Declaration of Conformity.
Technical Specifications
- Capacity: 250 kg – 500 kg WLL
- Power Supply: 110V / 240V single-phase / 415V three-phase (CP500T)
- Motor Protection: IP44
- Brake System: Electromagnetic spring-applied failsafe brake
- Control: 3 m pendant (2-button + emergency stop)
- Power Lead: 2 m
- Hook Type: 360° swivel safety hook
- Wire Rope: Galvanised, supplied as standard
- Drum: Enclosed flange design
- Installation: Flexible (bottom rope exit capable)
- Compliance: BS EN 14492-2
- Certification: CE & UKCA marked
Applications
- Workshop and maintenance lifting
- Industrial material handling
- Commercial lifting systems
- Light fabrication and assembly operations
- General-purpose hoisting applications
Technical information
| WLL | 300kg, 250kg, 500kg |
|---|---|
| Power | 110v, 240v, 415v |
Key Features
- Working Load Limit (WLL): 250 kg – 500 kg
- Power supply options: 110V, 240V (single-phase), 415V (three-phase)
- Electromagnetic, spring-applied failsafe brake
- Bi-rotational design for flexible installation
- Supplied complete with galvanised wire rope
- Enclosed drum flange for added safety
- Compact, robust construction
- Quiet-running motor
- 360° swivel safety hook with safety catch
- 3 m pendant control with emergency stop
- 2 m power lead supplied
- Motor rated to IP44
- Optional radio remote control and weatherproof enclosure
- CE and UKCA marked with Declaration of Conformity
Safety & User Instructions
- Ensure correct WLL (250–500 kg) is selected for the application
- Inspect wire rope, hook, and braking system before use
- Do not exceed the rated working load limit
- Maintain a minimum of 5 wraps of wire rope on the drum
- Do not use for lifting personnel
- Ensure the winch is securely mounted to a suitable structure
- Keep clear of suspended loads and moving rope
- Use appropriate PPE during operation
- Ensure correct wire rope selection based on MBF requirements
- Follow all BS EN 14492-2 and relevant lifting regulations
