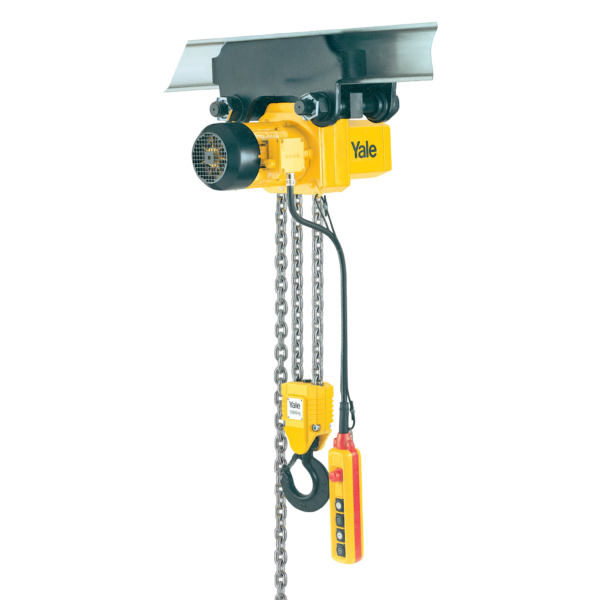

Yale CPEF Electric Chain Hoist with Push Trolley 1.6-7.5t WLL (400v 3ph)
YAL-ECH-CPE-HPT
Yale CPEF electric chain hoist with integrated hand push trolley for smooth manual beam travel. Capacity range 1600kg-7500kg, 400v 3-phase, IP55 motor protection, 42v low-voltage control, and heavy-duty industrial construction.
From: £5,660.87£6,793.04 Exc VATInc VAT
Description
The Yale CPEF Electric Chain Hoist with Hand Push Trolley is a premium heavy-duty lifting solution designed for professional industrial environments where powered lifting and manual horizontal movement are required.
Built for efficiency and long service life, the CPEF series features a modular three-component design that simplifies servicing and reduces maintenance costs. The integrated push trolley allows the operator to manually position loads along an I-beam, making it ideal for workshops, fabrication plants, and overhead runway systems where powered travel is not necessary.
With lifting capacities from 1600kg to 7500kg, this hoist delivers reliable performance through its planetary gearbox, hardened load chain sheave, and heavy-duty squirrel cage motor. The adjustable spring pressure brake ensures the load is held securely even during power loss.
Technical Overview
Feature Specification
Capacity 1600kg – 7500kg
Power supply 400v / 3ph / 50Hz
Control voltage 42V
Hoist duty 1Am/M4 (model dependent)
Travel type Manual push trolley
Beam flange width Typically 98–300mm (model dependent)
Protection class IP55 motor / IP65 pendant
Standard lift 3m (custom available)
Performance & Safety
The CPEF push trolley version is engineered for dependable industrial service:
Spring pressure brake secures load during power failure
Thermal motor protection prevents overheating
Hardened 5-pocket chain sheave ensures precise chain movement
Planetary gearbox provides exceptionally smooth lifting
Forged hooks with safety latches improve load security
Fully compliant with Machinery Directive 2006/42/EG
Available Options
Stainless steel load chain
Suspension hook rotated 90°
Flexible chain containers
Radio remote control
Limit switches for upper/lower hook positions
Festoon cable or conductor rail systems
Synchronized multi-hoist control
Rain covers for hoist and trolley
Alternative voltages
Applications
Overhead beam systems
Fabrication and engineering workshops
Maintenance departments
Production lines
Heavy equipment assembly
Industrial warehouses
Important Notes
Supplied with manual push travel trolley
Standard height of lift: 3m (custom heights available)
Pendant cable supplied approximately 2.5m
Chain container optional
For powered travel, electric trolley versions are available
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.6t, 2.5t, 2t |
| Lifting Speed (m/min) | 1.6/0.4, 2, 2/0, 2/0.5, 4/1, 5, 5/1.2, 8/2, 4, 8 |
| Beam Width | 98-180mm |
