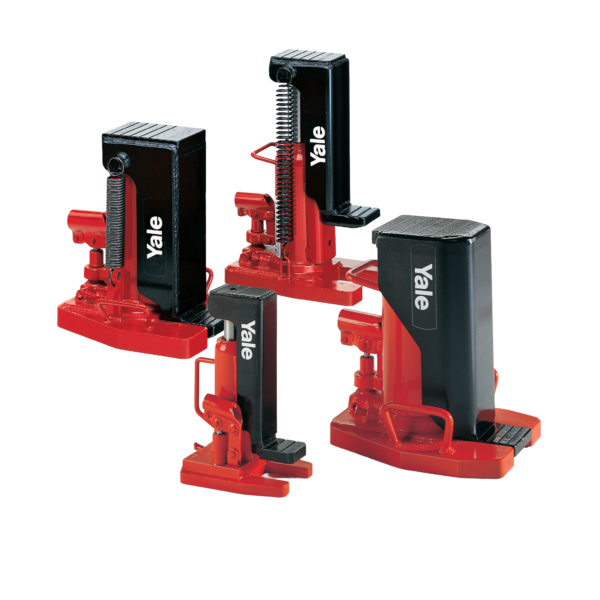

Yale YAM Machine Jack (with Claw) 2–15t WLL
YAL-HYJ-YAM
Heavy-duty Yale YAM machine jacks with lifting claw (2-15 tonne capacity) designed for ultra-low clearance lifting, positioning, and machinery moving. Features overload protection, precision lowering valve, and wide stable base for safe industrial use.
From: £446.31£535.57 Exc VATInc VAT
Description
The Yale YAM Machine Jacks with Lifting Claw from Yale are purpose-built for professional lifting tasks where minimal ground clearance prevents the use of conventional hydraulic jacks. Engineered for precision, strength, and stability, these machine jacks provide a dependable solution for lifting, positioning, and transporting heavy machinery and structural components in confined spaces.
Ideal for workshops, manufacturing plants, construction sites, and maintenance environments, the Yale YAM range excels in applications such as machinery installation, heavy steel structure handling, framework alignment, scaffold adjustment, and high-rise warehouse levelling. Their compact yet powerful design allows operators to safely engage loads at extremely low pick-up heights.
Each jack features a robust lifting claw that enables access under tight clearances while maintaining full rated lifting capacity. Uniquely, the same load can be lifted using either the head or the claw, providing valuable operational flexibility across different lifting scenarios.
Safety and control are central to the YAM design. An integrated safety pressure valve protects against overload conditions, while the precision-adjustable lowering valve allows smooth, controlled descent of the load. The large base plate enhances stability during operation, reducing the risk of tipping under heavy loads.
For improved ergonomics in confined working environments, the pump lever rotates through 270 degrees (excluding the YAM-2 model), allowing operators to work efficiently even when access is restricted. Additionally, the YAM-5 and YAM-10 models feature a spring return lifting claw for faster and more convenient operation.
Supplied fully assembled and filled with hydraulic oil, each Yale YAM machine jack is ready for immediate deployment on site or in the workshop. Built to withstand demanding industrial conditions, this range offers the durability and reliability professionals expect from Yale lifting equipment.
Dimensions (mm)
Model A B C D E F G
YAM-2 235 180 125 50 50 85 16
YAM-5 290 257 182 75 57 117 26
YAM-10 325 280 240 100 60 150 33
YAM-15.1 344 321 258 110 60 168 33
Safety & User Instructions
Verify the load weight does not exceed the rated capacity.
Always position the jack on a firm, level surface.
Ensure the load is fully supported and centred on the claw or head.
Do not place hands or body under a suspended load.
Use additional mechanical supports when working under lifted equipment.
Operate the lowering valve slowly for controlled descent.
Inspect regularly for hydraulic leaks, damage, or wear.
Store in a clean, dry environment when not in use.
Technical information
| Weight | N/A |
|---|---|
| WLL | 10t, 15t, 2t, 5t |
