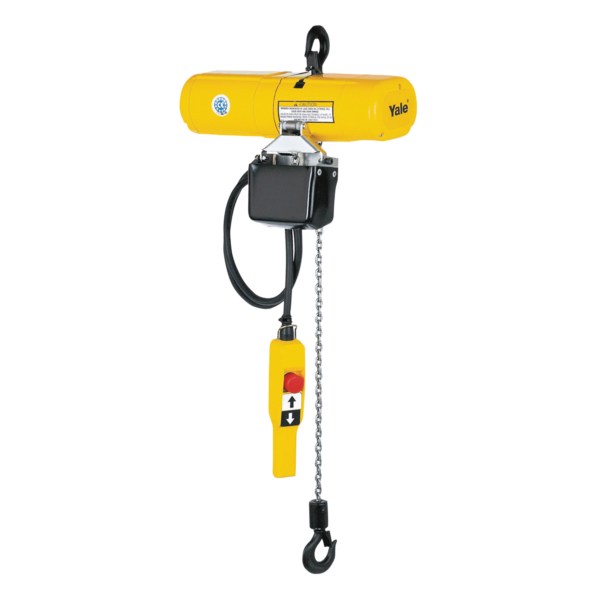

Yale CPS Compact Electric Chain Hoist 125–250kg WLL (110v / 230v / 400v)
YAL-ECH-CPS
Compact Yale CPS electric chain hoist with 125kg or 250kg capacity. Lightweight from 12kg with M4 duty rating, IP54 protection, overload protection and 48v control. Ideal for maintenance, jib cranes and light crane systems. Available in 110v, 230v and 400v.
From: £1,502.91£1,803.49 Exc VATInc VAT
Description
The Yale CPS Electric Chain Hoist is a compact, high-performance lifting solution designed for maintenance operations, jib cranes and light crane systems. Despite its powerful lifting capability of up to 250kg, this rugged hoist weighs from just 12kg, making it one of the most portable and versatile units in its class.
Built in the USA to the high manufacturing standards associated with Yale lifting equipment, the CPS hoist delivers outstanding reliability, durability and ease of use. With an M4 high duty rating and the ability to handle up to 240 motor starts per hour, it is engineered for demanding commercial environments where consistent performance is essential.
The hoist features a thermally protected hoist-duty motor, lifetime-lubricated gear train and precision bearings to ensure smooth, efficient operation with minimal maintenance requirements. Its 10-pocket oblique-lay lift wheel promotes constant chain speed while reducing chain wear, extending service life.
Designed with user safety and practicality in mind, the CPS includes overload protection as standard, a 48v low-voltage control system, and an IP54 rated enclosure to protect internal components from dust and moisture. The rugged cast aluminium housing and totally enclosed non-ventilated frame further shield the motor from environmental contamination.
With its small footprint, lightweight construction and straightforward installation, the Yale CPS truly lives up to its reputation as “one big little hoist.”
Technical Specifications
CPS 125kg Models
Model Capacity Voltage Speed Duty Weight Chain Falls
CPS 110/1-4 125kg 110v 1ph 4 m/min 25% ED 12kg 1
CPS 230/1-4 125kg 230v 1ph 4 m/min 25% ED 12kg 1
CPS 400/1-4 125kg 400v 3ph 4 m/min 30% ED 12kg 1
CPS 400/1-10 125kg 400v 3ph 10 m/min 30% ED 12kg 1
Chain size: 4 × 12 mm
Standard height of lift: 3m
Standard pendant length: 2m
CPS 250kg Models
Model Capacity Voltage Speed Duty Weight Chain Falls
CPS 110/2-2 250kg 110v 1ph 2 m/min 25% ED 14kg 2
CPS 230/2-2 250kg 230v 1ph 2 m/min 25% ED 14kg 2
CPS 400/2-2 250kg 400v 3ph 2 m/min 30% ED 14kg 2
CPS 400/2-5 250kg 400v 3ph 5 m/min 30% ED 14kg 2
Chain size: 4 × 12 mm
Standard height of lift: 3m
Standard pendant length: 2m
Optional Accessories
Additional pendant control cable (per metre)
Pendant control with emergency stop
Protective raincoat
Impact-resistant chain bags (various sizes)
Note: Chain bags are not supplied as standard.
Applications
Maintenance departments
Jib crane systems
Light crane installations
Workshops and production lines
Commercial lifting tasks
Portable lifting operations
Technical information
| Weight | N/A |
|---|---|
| WLL | 125kg, 250kg |
| Lifting Speed (m/min) | 10, 2, 5, 4 |
| Power | 110v, 230v, 400v |
