Yale CPV Electric Chain Hoist with Powered Trolley 125kg-5t WLL (400v)

Name: Yale CPV Electric Chain Hoist with Powered Trolley 125kg-5t WLL (400v) - Lifting Gear Products
SKU: YAL-ECH-CPV-PT
Availability: InStock

YAL-ECH-CPV-PT

Yale CPV electric chain hoist with integrated electric powered trolley. Lifting capacities 125kg-5000kg, 400v, IP55 protection, 42v low-voltage control, overload protection, and fail-safe brake. Ideal for powered crane systems and industrial lifting applications.

From: £2,664.50£3,197.40 Exc VATInc VAT

WLL

Lifting Speed (m/min)

Beam Width

Trolley Speed

Request a Product Modification

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description
Technical Information

Description

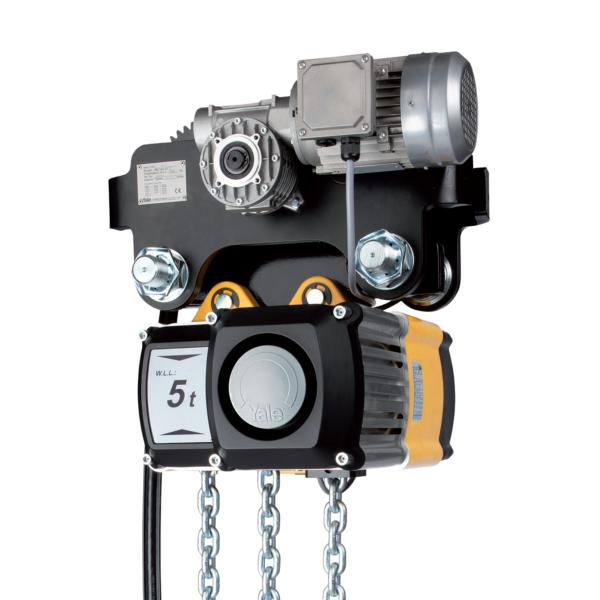

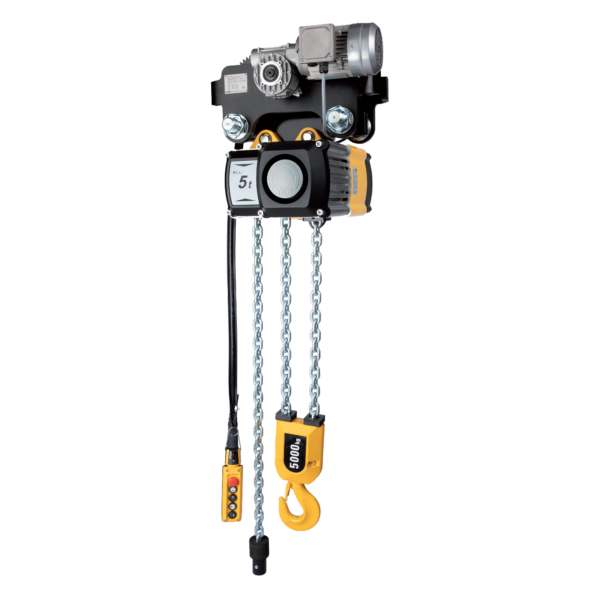

The Yale CPV Electric Chain Hoist with Electric Powered Trolley delivers high-performance lifting combined with powered horizontal travel along crane beams. Designed for industrial and professional applications, the electric trolley allows smooth, controlled, and powered movement of loads, reducing operator fatigue and increasing productivity.

Capacities range from 125kg to 5000kg, covering light to heavy industrial lifting requirements. The hoist is equipped with upper and lower limit switches, protecting the motor, gearbox, and slip clutch from over-travel and extending service life. Its IP55-rated housing ensures reliable operation in workshop and industrial environments.

The electric trolley drive features variable speeds depending on the model (single or dual speed) and fits a wide range of beam widths. Combined with the CPV hoist’s electromagnetic brake, slip clutch overload protection, and oil bath gearbox, the system offers smooth, reliable, and safe lifting and traversing operations.

Technical Overview
Feature Specification
Power supply 400v, 3-phase, 50Hz
Capacity 125kg – 5000kg
FEM / ISO classification 1Am / M4
Travel Powered trolley along I-beam
Trolley speed Single or dual speed depending on model (e.g., 11 m/min, 11/2.8 m/min)
Control voltage 42V
Protection class IP55
Chain container Optional
Duty cycle 50% ED
Operating temperature -10°C to +40°C

Safety & Performance
Electromagnetic brake holds load securely during power failure
Slip clutch protects hoist from overload
Upper and lower limit switches prevent over-travel
Smooth operation via oil bath gearbox and helical gearing
Electric trolley reduces operator effort for horizontal load positioning

Available Options
Rain covers for hoist and chain
Flexible or rigid chain containers
Pluggable control pendants (2-button or 4-button)
Radio remote control
Stainless steel load chains for corrosive or food environments
Top hook rotated 90° for special applications
Phase-changing CEE plug for power supply
Retrofit or replacement trolleys

Applications
Industrial overhead crane systems
Production lines with powered travel requirements
Workshop and maintenance lifting stations
Heavy-duty assembly lifting
Anywhere precise powered positioning of suspended loads is required

Important Notes
Trolley fits beams with flange widths from 58–300mm depending on model
Supplied without chain container unless specified
Lifting height supplied to order
Optional dual-speed travel available for longer crane runs
