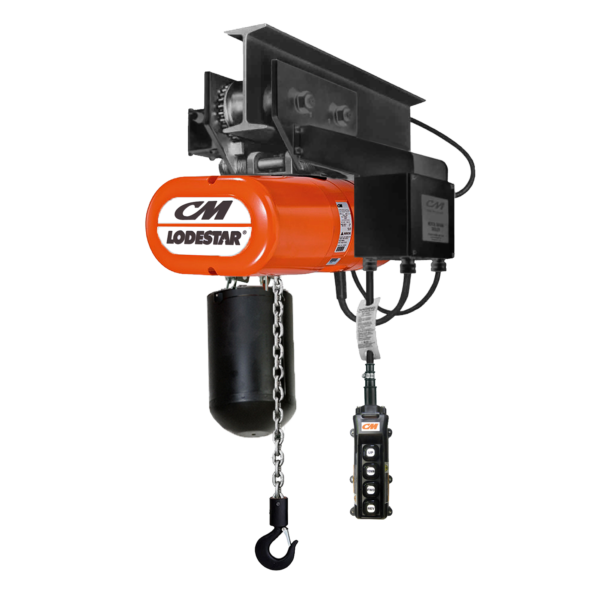

CM Lodestar Electric Chain Hoist with Powered Trolley 250kg–3t WLL (110v/240v/400v)
CM-ECH-LODESTAR-PT
Premium CM Lodestar electric chain hoist with powered travel trolley, available in 110V, 230V or 400V. Heavy-duty lifting capacity from 250kg to 3000kg with motorised beam travel, FEM 2m duty rating and IP65 pendant control, ideal for high-productivity industrial lifting systems.
From: £5,167.85£6,201.42 Exc VATInc VAT
Description
Premium Electric Chain Hoist with Powered Trolley System
CM Lodestar Electric Chain Hoist with Powered Trolley (250 kg–3 Tonne WLL) is a premium industrial lifting solution designed for applications requiring both vertical lifting and powered horizontal load movement. Combining the proven durability of the Lodestar range with a motorised trolley system, this hoist delivers efficient, precise, and high-frequency load handling across demanding environments.
Industry-Leading Lodestar Design Trusted Worldwide
Manufactured in the USA and widely recognised across global industries, the Lodestar is a benchmark product in the lifting sector, trusted in manufacturing, logistics, hire fleets, and heavy-duty maintenance operations. This powered trolley configuration is particularly suited to workflows where loads must be frequently moved along beams or runway systems, significantly improving productivity and reducing manual handling.
Lightweight Aluminium Housing for Durability and Heat Dissipation
Built for durability and long service life, the hoist features lightweight aluminium alloy housing that fully encloses internal mechanical and electrical components. This robust design protects critical parts from harsh environmental conditions while allowing effective heat dissipation during extended duty cycles.
High-Frequency Operation with FEM 2m Duty Classification
With lifting capacities ranging from 250 kg up to 3000 kg and a FEM 2m classification (40% duty cycle), the Lodestar is engineered for consistent, high-frequency operation. The powered trolley provides smooth, controlled beam travel, ensuring precise positioning and efficient load transfer across work areas.
Adjustable Limit Switches for Safe Load Travel Control
Operator safety is central to the design. The hoist is equipped with adjustable upper and lower limit switches to prevent over-travel, while a 48V low-voltage control system enhances safety during operation. The IP65-rated pendant control ensures reliable performance even in challenging industrial environments, while thermal overload protection safeguards the motor under heavy use.
Lifetime-Lubricated Gearbox for Reduced Maintenance
Maintenance requirements are minimised through a lifetime-lubricated gearbox and service-friendly construction. A load hook fitted with an axial bearing improves load stability, reduces twist, and extends component lifespan during repetitive lifting cycles.
Multiple Voltage Options for Flexible Installation
Available in 110V and 230V single-phase, as well as 400V three-phase configurations, the CM Lodestar with powered trolley integrates seamlessly into UK and international industrial systems. Its compact design and excellent closed height make it particularly suitable for installations with restricted headroom.
Technical Specifications
- Capacity: 250 kg – 3000 kg WLL
- Voltage Options: 110V / 230V single-phase (50Hz), 400V three-phase (50Hz)
- Duty Rating: FEM 2m (40% duty cycle)
- Control Voltage: 48V low-voltage control
- Brake System: Electromechanical with overload protection
- Chain Type: Alloy steel load chain
- Pendant: IP65-rated control pendant
- Trolley: Motorised powered travel trolley
- Gearbox: Lifetime lubricated
- Hook: Swivel hook with axial bearing
- Compliance: Industrial lifting standards (CE compliant)
Applications
- Automated production lines
- Factory crane and beam systems
- Warehouse and logistics operations
- Heavy-duty maintenance and servicing
- Hire and rental lifting equipment
- Industrial runway and monorail systems
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2t, 3t, 250kg, 500kg |
| Lifting Speed (m/min) | 2, 4/1.3, 4, 8, 8/2.5 |
| Power | 110v, 240v, 400v |
| Trolley Speed | 18, 4.5/18 |
Key Features
- Working Load Limit (WLL): 250 kg – 3000 kg
- Power Supply: 110V / 240V single-phase or 400V three-phase
- Integrated powered trolley for motorised beam travel
- FEM 2m duty rating (40% duty cycle) for high-frequency use
- Lightweight aluminium housing for durability and heat dissipation
- Adjustable upper and lower limit switches
- 48V low-voltage control system for enhanced safety
- IP65-rated pendant control
- Thermal overload protection as standard
- Lifetime-lubricated gearbox for reduced maintenance
- Axial bearing load hook for improved stability
- Compact design with excellent headroom
Safety & User Instructions
- Confirm beam and runway system are rated for the hoist and load.
- Ensure electrical installation is completed by a qualified professional.
- Never exceed the safe working load (SWL).
- Inspect chain, hook, pendant and trolley before each use.
- Keep clear of moving trolley and suspended loads.
- Disconnect power before maintenance.
- Operators must be trained in safe lifting practices and comply with LOLER and PUWER.
- Use appropriate PPE during operation and installation.
