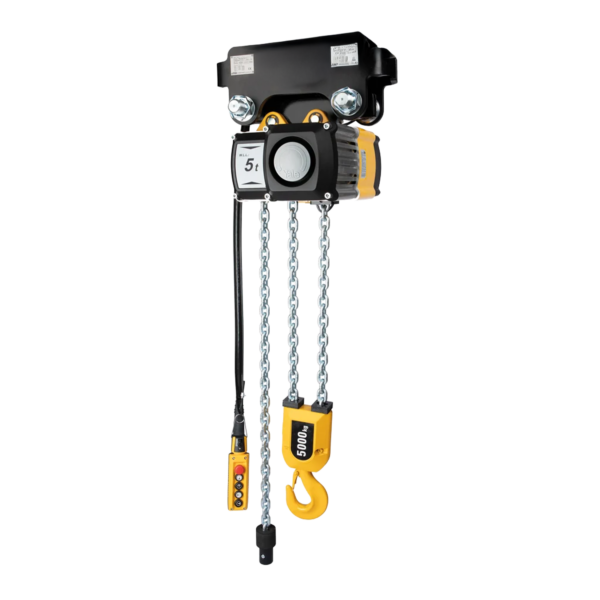

Yale CPV Electric Chain Hoist with Push Trolley 125kg-5t WLL (400v)
YAL-ECH-CPV-HPT
Yale CPV electric chain hoist with integrated hand push trolley suspension. Lifting capacities 125kg-5000kg, 400v, IP55 protection, 42v low-voltage control, overload protection and electromagnetic brake. Ideal for manual crane beam applications.
From: £1,810.92£2,173.10 Exc VATInc VAT
Description
The Yale CPV Electric Chain Hoist with Hand Push Trolley Suspension offers professional-grade lifting performance combined with manual mobility. Designed for light to medium industrial applications, the hand push trolley allows the hoist to travel along an I-beam or crane runway manually, giving operators precise control of load positioning without the need for powered travel.
Capacities range from 125kg up to 5000kg, making the CPV series versatile for workshop, assembly, and maintenance operations. The hoist features an integrated upper and lower limit switch that protects the motor, gearbox, and slip clutch by preventing over-travel.
Safety is enhanced with 42V low-voltage control, an electromagnetic spring pressure brake, and overload protection outside the force flow. The oil bath gearbox with helical gearing ensures smooth and quiet operation, while the all-steel chain guide maximizes chain life.
The compact, robust design makes it suitable for manual crane systems, light industrial bridges, and workshop lifting setups, while retrofit options allow the trolley to be adapted to different beam sizes.
Technical Overview
Feature Specification
Power supply 400v, 3-phase, 50Hz
Capacity 125kg – 5000kg
FEM / ISO classification 1Am / M4
Hoist travel Hand push along I-beam
Control voltage 42V
Protection class IP55
Chain container Optional
Duty cycle 50% ED
Operating temperature -10°C to +40°C
Safety & Performance
Electromagnetic brake holds load securely in case of power failure
Slip clutch protects against overload conditions
Limit switches prevent over-hoisting and over-lowering
Smooth operation from oil bath gearbox and helical gearing
High reliability for industrial and workshop lifting
Available Options
Flexible chain containers
Rain covers for hoist and chain
Pluggable control pendants
Radio remote control
Stainless steel load chains for corrosive environments
Custom beam width push trolley adjustment
Applications
Workshop crane systems
Assembly lines
Manual overhead crane beams
Maintenance lifting stations
Light industrial production areas
Important Notes
Manual trolley requires compatible I-beam width (58–300mm depending on model)
Supplied without chain container unless specified
Lifting height supplied to order
Retrofit trolley options available for existing beams
Technical information
| Weight | N/A |
|---|---|
| WLL | 1t, 2.5t, 2t, 5t, 250kg, 500kg |
| Lifting Speed (m/min) | 1-4, 1/4, 2-8, 2/8, 4, 8 |
| Beam Width | 58-180mm, 98-180mm |
