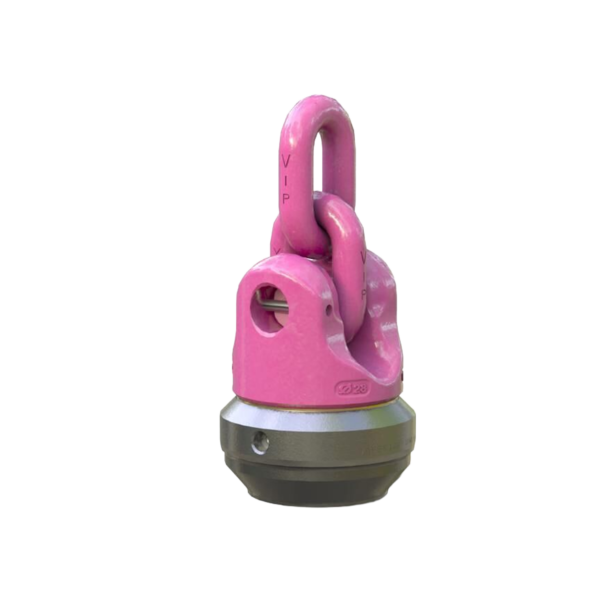

RUD VWBS-KA 31.5t VIP Weldable Load Ring with Chain Connection ? 360? Rotating
RUD-WP-VWBS-KA
The RUD VWBS-KA 31.5t is a weldable VIP load ring with an integrated chain connection, designed for direct attachment to VIP lifting chains. With 360? rotation and a compact, robust design, it delivers safe and efficient heavy lifting performance.
Price on request
Description
The RUD VWBS-KA 31.5t VIP Load Ring for Welding with Chain Connection is a specialised lifting point engineered for applications where direct chain integration is required. Unlike standard load rings, the VWBS-KA is designed specifically for use with RUD VIP lifting chains, providing a secure, non-mix-up connection that enhances safety and efficiency during lifting operations.
With a Working Load Limit of 31.5 tonnes, the VWBS-KA is suitable for a wide range of heavy industrial lifting tasks. The lifting ring is 360? rotatable, allowing it to align automatically with the direction of pull. This significantly reduces torsional forces on the chain and welded structure, helping to prevent premature wear and unsafe load conditions.
The weldable design enables the VWBS-KA to be permanently installed on steel structures, frames or components. Once welded in place, it forms a compact and highly reliable lifting interface that eliminates the need for additional connectors such as shackles or intermediate links. This not only simplifies the lifting system but also reduces potential points of failure.
The integrated VIP chain connection ensures compatibility exclusively with RUD VIP chains, preventing incorrect combinations and supporting safe lifting practices. This makes the VWBS-KA particularly valuable in professional lifting environments where equipment standardisation and traceability are critical.
Manufactured from high-quality materials and produced to RUD?s stringent standards, the VWBS-KA is designed for long service life even under repeated heavy loads. Its robust construction makes it suitable for use in harsh industrial environments, including fabrication yards, construction sites, offshore installations and heavy manufacturing facilities.
Clear load markings and documented technical data support safe selection and inspection, while the rotating design improves handling efficiency during complex lifts. For users seeking a weldable, chain-specific lifting point with controlled rotation, the VWBS-KA 31.5t offers a proven and dependable solution.
Typical Applications
VIP chain sling systems
Heavy steel fabrication
Industrial plant and machinery lifting
Offshore and construction environments
Technical information
| Weight | 24 kg |
|---|
