RUD WPPH-VIP PowerPoint Weldable VIP Chain Connection ? Fixed Lifting Point for Direct Chain Attachment – 0.63t?10t WLL

Description

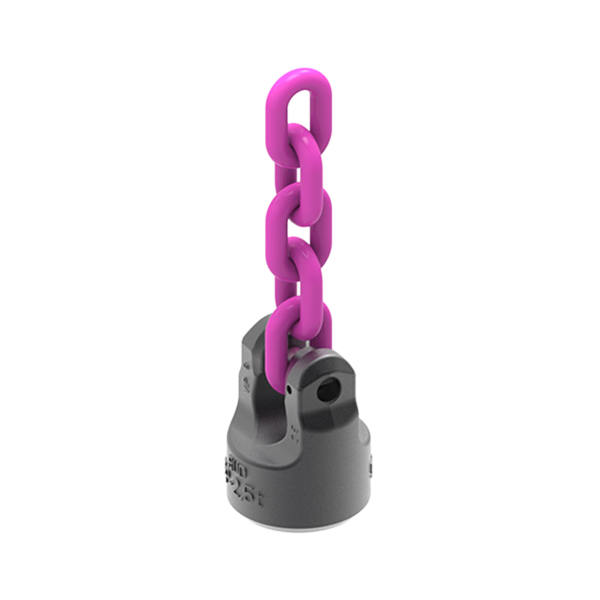

The RUD WPPH-VIP PowerPoint for VIP Chain Connection is a purpose-designed weld-on lifting point for applications where a direct, fixed connection to VIP chains is required. As part of the RUD PowerPoint and VIP lifting system, the WPPH-VIP delivers maximum safety, compatibility and load control in demanding industrial environments.
Unlike universal or eye-type lifting points, the WPPH-VIP is engineered exclusively for direct chain attachment, eliminating the need for hooks, shackles or additional connecting components. This reduces system height, minimises potential points of failure and ensures a clean, correctly aligned load path from the chain into the welded structure.
The WPPH-VIP is non-rotatable, making it ideal for controlled lifting operations where load direction is defined and movement must be restricted. Once welded in position by a qualified welder, it becomes a permanent lifting interface that offers consistent performance and predictable load behaviour across repeated lifts.
With a Working Load Limit range from 0.63 t to 8 t, and increased capacities of up to 10 t under axial loading, the WPPH-VIP covers a wide spectrum of industrial lifting requirements. Each size is precisely matched to corresponding RUD VIP chain dimensions, ensuring a non-mix-up connection that maintains the integrity of the VIP system and prevents incorrect assembly.
The compact design of the WPPH-VIP allows easy integration into steel structures, machinery frames, lifting beams and fabricated components, even where installation space is limited. By transferring forces directly into the base material, it supports efficient load distribution and helps reduce local stress concentrations around the weld area.
Clear WLL markings assist with on-site identification, inspection and compliance with lifting procedures, while the robust forged construction ensures durability in harsh working environments. The WPPH-VIP has been tested in accordance with BG/DGUV test criteria ?GS-HM 36?, confirming its suitability for professional and safety-critical lifting applications.
For operators seeking a compact, fixed and chain-optimised lifting point, the RUD WPPH-VIP PowerPoint offers a highly reliable solution that integrates seamlessly into the VIP lifting system and delivers long-term operational confidence.

Typical Applications
Machinery and plant lifting with VIP chains
Fabricated steel assemblies
Lifting beams and load frames
Repetitive and controlled chain lifting operations
Industrial maintenance and handling
