RUD B-ABA Boltable Attachment Block – Heavy-Duty Lifting Point – 1.6 t ? 31.5 t WLL
RUD-AB-B-ABA

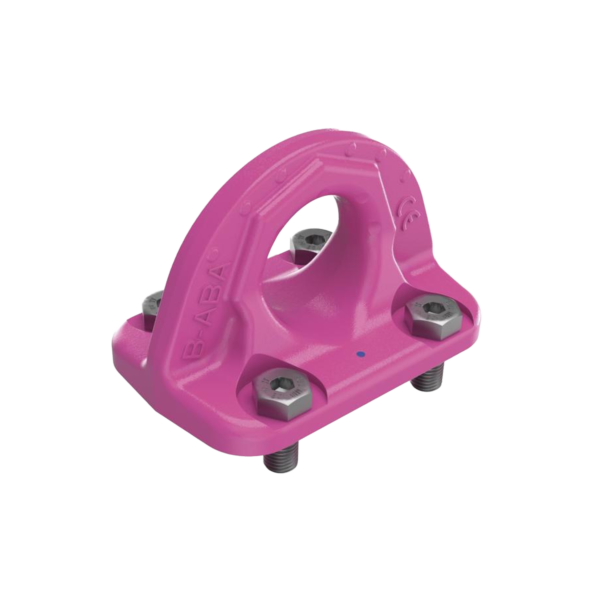

The RUD B-ABA Lifting Point is a versatile, high-strength lifting attachment designed to be loaded safely from all sides. With a Working Load Limit (WLL) ranging from 1.6 tonnes to 31.5 tonnes, this robust RUD lifting point ensures secure connections, exceptional durability, and reliable performance across demanding lifting applications. Ideal for industrial, construction, offshore, and heavy fabrication environments, the B-ABA delivers maximum safety and operational efficiency.
Price on request
Description
The RUD B-ABA Lifting Point is engineered for high-performance lifting operations where safety, flexibility, and strength are critical. Unlike conventional lifting points, the B-ABA can be loaded from all sides without compromising stability, reducing the need for additional adjustments during complex lifting tasks. This feature, combined with RUD?s precision-engineered design, ensures safe and efficient handling of heavy loads in dynamic and vibration-prone environments.
Manufactured from RUD?s patented ICE-Bolt steel, the B-ABA offers superior mechanical properties, including increased toughness, higher bending strength, and reduced wear. This makes it suitable for use in extreme conditions, including deep temperature environments and offshore applications. Its tempered main body further enhances wear resistance, prolonging service life and minimising maintenance requirements.
The B-ABA incorporates innovative wear markings, both internally and externally, enabling operators and inspectors to quickly assess the condition of the lifting point. The markings clearly indicate the minimum WLL and provide a reliable visual guide for safe usage, supporting preventative maintenance and reducing the risk of in-service failure.
The lifting point has been rigorously tested and certified by DGUV to the GS-HM-36:2021-09 test criteria (Certificate No.: HM 220054), ensuring compliance with professional safety standards. This verification guarantees four-times the safety against breakage compared to standard lifting points, making the RUD B-ABA an ideal choice for high-risk lifting scenarios.
The B-ABA is designed for easy connection of all conventional lifting means, including chain, wire rope, and textile slings. The metric threaded design allows secure, permanent installation on load-rated structures, beams, frames, and machinery. Additionally, the B-ABA operates silently under load, eliminating rattling or shaking even during operations involving strong vibrations, improving both safety and operator confidence.
Typical Applications
Heavy steel fabrication and construction
Machinery and plant lifting
Offshore and marine environments
Power generation and infrastructure projects
Structural beam and frame lifting
Installation & Safety Notes
Must be installed into load-rated threaded mounting points
Always observe the marked Working Load Limit
Inspect wear markings before each use
Suitable for permanent or semi-permanent installation
Avoid any side-loading beyond specified WLL
The RUD B-ABA Lifting Point combines unmatched flexibility, strength, and safety, making it an essential component for professional lifting operations where reliability is critical.
Technical information
| Weight | N/A |
|---|---|
| WLL | 1.6t, 10t, 20t, 3.2t, 31.5t, 5t |
