RUD VRM-STARPOINT VARIO Eye Nut ? Metric Rotating Lifting Nut – 0.1t-4.5t (M6-M30)
RUD-EN-VRM-SP-V-M

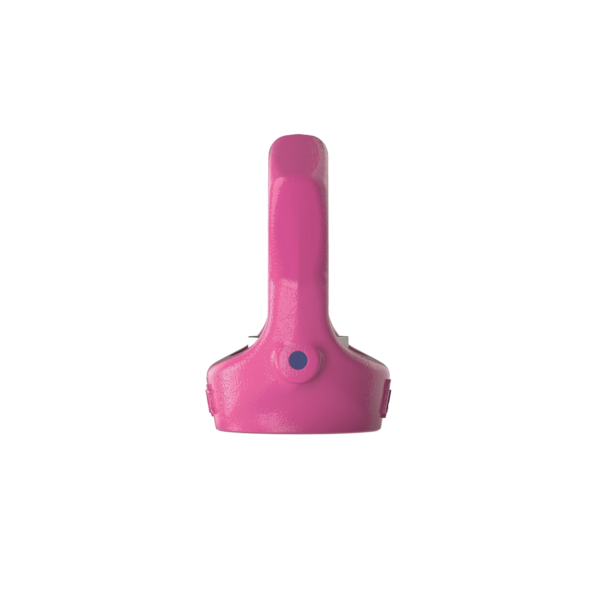

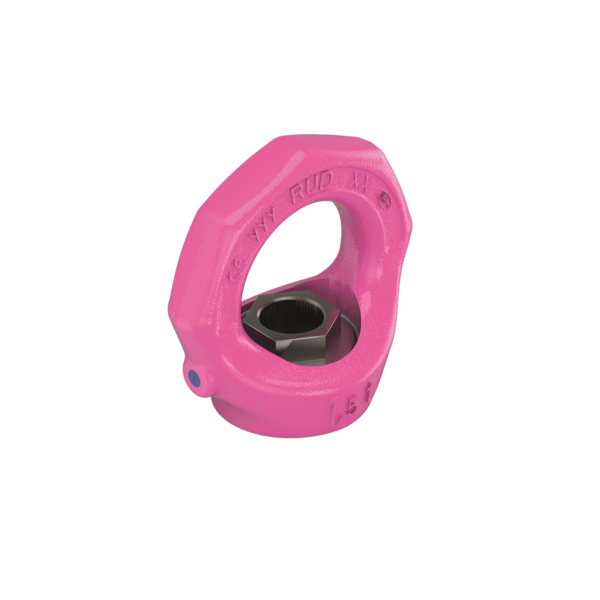

The RUD VRM-STARPOINT VARIO Eye Nut is a high-performance, rotatable lifting nut designed for 360? load alignment and superior Working Load Limits compared to conventional eye nuts. Available in metric thread sizes M6 to M30, the VRM-STARPOINT provides safe, flexible lifting across all load directions and is certified for professional industrial use.
Price on request
Description
The RUD VRM-STARPOINT VARIO Eye Nut is an advanced rotating lifting point engineered to deliver maximum safety, flexibility, and load capacity in demanding lifting applications. Unlike standard eye nuts, the VRM-STARPOINT is designed to rotate through 360?, allowing the lifting ring to automatically align with the direction of load and significantly reduce bending forces and stress on the thread.
This intelligent design results in a much higher Working Load Limit (WLL) than traditional DIN eye nuts. The stated WLL values correspond to the minimum guaranteed load capacity (worst-case scenario) in all loading directions, providing predictable and reliable performance even in complex lifting arrangements.
Manufactured to DIN EN 13 standards and available in metric thread sizes from M6 to M30, the VRM-STARPOINT is suitable for a wide range of lifting tasks, from light equipment handling to heavy industrial loads up to 4.5 tonnes. Clear, permanent markings on the body indicate the minimum WLL, ensuring easy inspection and correct usage on site.
The VRM-STARPOINT is intended for use with high-strength bolts of minimum property class 10.9, ensuring the lifting point achieves its full rated performance. Its robust construction and optimised load path make it ideal for use in mechanical engineering, fabrication, tooling, plant maintenance, and heavy manufacturing environments where safety and reliability are critical.
As part of the RUD STARPOINT lifting range, the VRM-STARPOINT combines German engineering excellence with certified safety, making it a trusted choice for professional lifting operations worldwide.
Typical Applications
Machinery and equipment lifting
Tooling, dies, and mould handling
Fabrication and welding assemblies
Mechanical engineering and plant maintenance
Industrial lifting and rigging operations
Confined or restricted lifting positions requiring rotation
Safety & Compliance
Manufactured by RUD, a global leader in lifting technology
WLL values based on worst-case loading scenarios
Designed to minimise bending forces on threads
Clear identification for inspection and traceability
Suitable for professional, certified lifting systems
Why Choose the RUD VRM-STARPOINT?
Increased safety through controlled load alignment
Higher load capacity than standard eye nuts
Reduced risk of misuse in angled lifts
Long service life in demanding industrial environments
Trusted RUD quality and engineering
Technical information
| Weight | N/A |
|---|---|
| WLL | 0.1t, 0.3t, 0.4t, 0.75t, 1.5t, 2.3t, 3.2t, 4.5t |
| Thread | M10, M12, M16, M20, M24, M30, M6, M8 |
