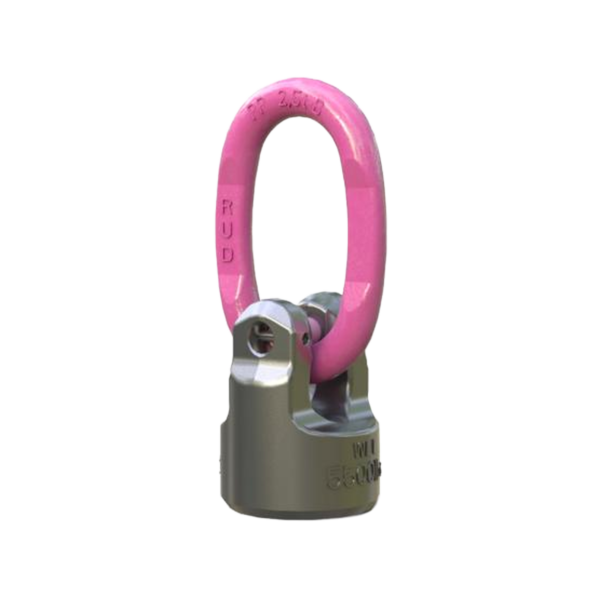

RUD WPPH-B PowerPoint Eye Weldable Connection ? Fixed Lifting Eye for Hook Suspension – 0.63t?10t WLL

Description

The RUD WPPH-B PowerPoint Eye Connection for Hook Suspension is a robust, weld-on lifting solution developed for applications where a fixed eye connection is required. As part of the proven RUD PowerPoint range, the WPPH-B offers a strong and dependable attachment point for lifting hooks, providing controlled load handling without rotation.
Unlike rotatable lifting points, the WPPH-B is designed for fixed orientation, making it ideal for situations where load direction is known in advance or where movement must be restricted for safety or precision. Once welded into position by a qualified welder, the lifting eye becomes a permanent part of the structure, reducing system complexity and eliminating the need for additional connectors such as shackles or links.
The WPPH-B covers a Working Load Limit range from 0.63 t to 8 t, with an increased capacity of up to 10 t under axial loading, offering flexibility across a wide range of industrial lifting tasks. Its eye geometry is optimised specifically for hook suspension, ensuring secure engagement with standard lifting hooks and consistent force transfer during lifting.
Manufactured to RUD?s high-quality standards, the WPPH-B features a compact, low-profile design that allows easy integration into steel structures, machinery frames and fabricated components. The efficient load path ensures forces are transferred directly into the welded base material, helping to reduce local stress concentrations and supporting long-term structural integrity.
The fixed nature of the WPPH-B provides key advantages in repetitive lifting operations, guided lifts and applications with restricted space, where uncontrolled rotation could cause misalignment or instability. Clear WLL markings support safe product selection and on-site inspection, contributing to improved operational safety.
The WPPH-B is tested in accordance with BG/DGUV test criteria ?GS-HM 36?, confirming its suitability for professional, safety-critical lifting applications. When installed correctly, it delivers a durable, maintenance-friendly lifting point capable of withstanding demanding industrial conditions.
For users who require a simple, strong and fixed lifting eye optimised for hook suspension, the RUD WPPH-B PowerPoint Eye offers a proven and reliable solution backed by RUD?s engineering expertise.

Typical Applications
Steel fabrication and welded assemblies
Machinery and plant lifting points
Controlled and repetitive hook lifts
Construction and structural steelwork
Industrial maintenance operations
