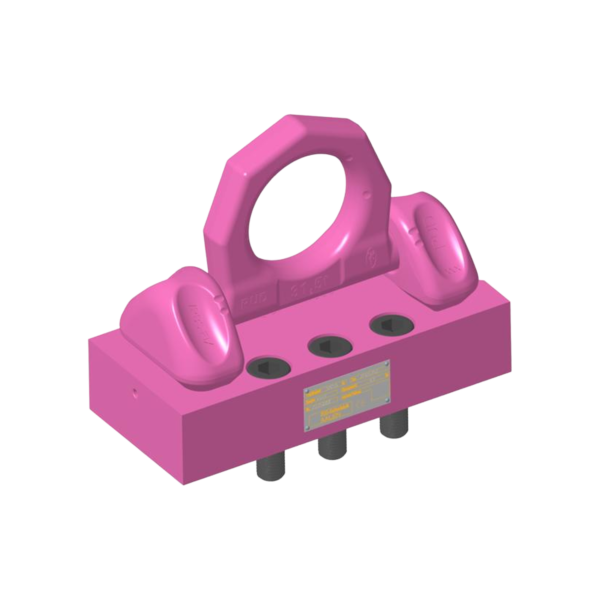

RUD VRBG-FIX Heavy-Duty Load Ring Thread ? Pivotable Lifting Point 31.5t?100t WLL
RUD-AB-VRBG-FIX
The RUD VRBG / VRBG-FIX Load Ring Thread is a heavy-duty lifting point designed for maximum flexibility and safety, capable of handling Working Load Limits (WLL) from 31.5 tonnes up to 100 tonnes. Featuring split force introduction through multiple fixing points, these RUD load rings reduce stress on components while providing secure, reliable lifting in demanding industrial, construction, offshore, and heavy fabrication applications.
Description
The RUD VRBG / VRBG-FIX Load Ring Thread is engineered for professional lifting operations requiring the highest levels of strength, flexibility, and safety. With a large WLL range from 31.5 t to 100 t, these load rings are ideal for extremely heavy lifting tasks where load stability and structural protection are critical.
The VRBG / VRBG-FIX system utilises split force introduction across multiple fixing points, reducing stress on the base structure and ensuring safe load transfer. The suspension ring can be pivoted through 180?, offering versatile alignment options, while WLL can be applied up to 90? in the load ring plane, allowing safe lifting even at angled loads.
RUD?s design includes innovative wear markings, which provide a clear visual indication of the minimum WLL for all loading directions. These markings allow operators to quickly assess the condition of the load ring and identify when replacement is required, supporting preventative maintenance and reducing the risk of in-service failure.
The VRBG-FIX variants feature 6 to 8 bolts, depending on the load rating, ensuring maximum stability and force distribution. All models are manufactured to meet BG/DGUV GS-HM 36 test criteria, giving confidence in compliance with professional safety standards.
The metric threaded design enables secure, permanent installation on load-rated structures, beams, and machinery. The RUD VRBG / VRBG-FIX accommodates all conventional lifting means, including chain, wire rope, and textile slings, providing a highly adaptable and efficient lifting solution for demanding applications.
Typical Applications
Heavy steel fabrication and construction
Machinery and plant lifting
Offshore and marine environments
Structural beam and frame lifting
Power generation and infrastructure projects
Installation & Safety Notes
Must be installed into load-rated threaded mounting points
Always observe the marked Working Load Limit
Inspect wear markings before each use
Suitable for permanent or semi-permanent installation
Avoid loading beyond specified WLL or pivot limits
The RUD VRBG / VRBG-FIX Load Ring Thread combines unmatched strength, flexibility, and safety, making it an essential component for heavy-duty professional lifting operations in the most demanding environments.
Technical information
| WLL | 100t, 31.5t, 50t |
|---|
