RUD RBG / VRBG Load Ring C/W Metric Threaded Bolts – 3t-16t WLL
RUD-AB-RBG/VRBG-M

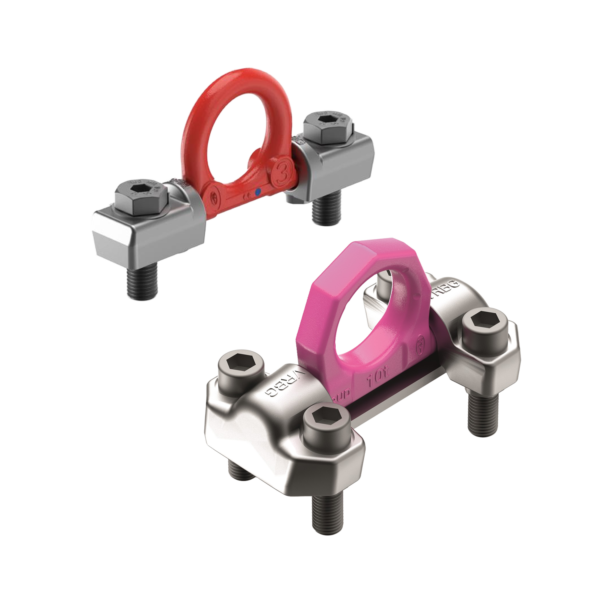

The RUD RBG / VRBG Load Ring Thread is a high-performance lifting point designed for safe, versatile load handling. With a Working Load Limit (WLL) from 3 tonnes up to 16 tonnes, these RUD load rings are engineered to distribute forces across multiple fixing points, reducing stress on components and providing maximum safety in demanding lifting applications. Suitable for industrial, construction, offshore, and heavy fabrication environments, the RBG / VRBG ensures secure, reliable performance.
Description
The RUD RBG / VRBG Load Ring Thread is designed to provide robust, flexible, and safe lifting solutions for professional applications. The load rings feature a split force introduction through multiple fixing points, minimising stress on the base component and extending service life. The bracket can be pivoted through 180?, allowing for flexible lifting angles and easy alignment with rigging equipment.
The RBG / VRBG system allows a WLL up to 90? in the load ring plane, providing enhanced versatility while maintaining safe load handling. Clear markings indicate the minimum WLL for all loading directions, giving operators a reliable visual reference to ensure safe usage.
Manufactured with RUD?s high-quality engineering standards, the VRBG variants feature four-bolt connections and innovative wear markings, allowing quick assessment of the lifting point?s condition. Once the markings indicate the limit, the lifting point is ready to be discarded, supporting preventative maintenance strategies and reducing in-service failure risk. The RBG versions are available with two-bolt or vario-length options, depending on load requirements.
Both the RBG and VRBG have been tested and certified according to BG/DGUV GS-HM 36 standards, ensuring compliance with professional safety regulations. This certification guarantees reliable performance under high-stress conditions, making them suitable for heavy lifting tasks in construction, machinery installation, offshore, and structural applications.
The metric threaded design enables secure, permanent installation on load-rated structures, beams, and machinery. The load rings accommodate all conventional lifting means, including chain, wire rope, and textile slings, providing a flexible and efficient lifting solution for multiple applications.
Typical Applications
Heavy steel fabrication and construction
Machinery and plant lifting
Offshore and marine environments
Structural beam and frame lifting
Installation of industrial equipment
Installation & Safety Notes
Must be installed into load-rated threaded mounting points
Always observe the marked Working Load Limit
Inspect wear markings before each use
Suitable for permanent or semi-permanent installation
Avoid loading beyond the specified WLL and pivot limits
The RUD RBG / VRBG Load Ring Thread delivers superior flexibility, safety, and reliability, making it an essential component for professional lifting operations in a variety of demanding environments.
Technical information
| WLL | 10t, 16t, 3t |
|---|---|
| Tread Length (mm) | 25?205, 30, 46, 50, 70 |
