RUD WPPH-S PowerPoint Star Weldable Universal Hook Connection ? Fixed Lifting Point – 0.63t?10t WLL
RUD-WP-WPPH-S

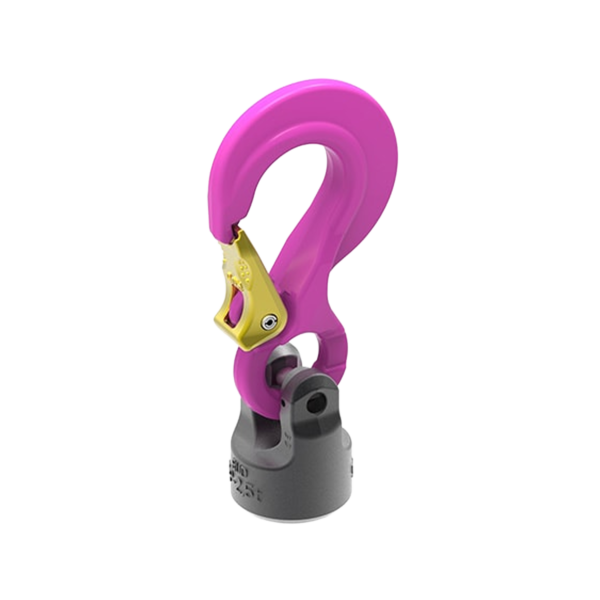

The RUD WPPH-S PowerPoint Star is a weldable, fixed-position universal lifting hook connection designed for controlled, stable lifting operations. With a Working Load Limit from 0.63 tonnes up to 8 tonnes (10 tonnes axial), it provides a robust, low-profile lifting point for hooks, slings and ring suspensions where rotation is not required.
Price on request
Description
The RUD WPPH-S PowerPoint Star Universal Hook Connection for Welding is a high-performance lifting point engineered for applications where a fixed lifting orientation is preferred or required. Closely related to the rotatable WPP-S, the WPPH-S offers the same proven PowerPoint Star geometry but without rotation, making it ideal for controlled lifting scenarios where load direction is known and stability is paramount.
Designed as a permanent, weld-on lifting solution, the WPPH-S provides a secure connection point for a wide range of lifting media, including hooks, ring suspensions, round slings and wire ropes. Once professionally welded to a load-bearing structure, it becomes an integral part of the component, reducing the need for additional connectors and minimising system complexity.
With a Working Load Limit range from 0.63 t to 8 t, and increased capacity of up to 10 t under axial loading, the WPPH-S covers a broad spectrum of industrial lifting requirements. Its compact, functionally optimised design ensures efficient force transmission into the welded structure while maintaining excellent strength-to-weight performance.
Unlike rotating lifting points, the fixed orientation of the WPPH-S offers advantages in applications where movement must be limited, such as repetitive lifting operations, guided lifts, or installations with restricted clearances. By eliminating rotation, the lifting point helps maintain predictable load behaviour and reduces unwanted movement during handling.
Manufactured to RUD?s exacting standards, the WPPH-S features a robust body designed for long-term durability in demanding environments such as steel fabrication, machinery manufacture, construction, plant maintenance and industrial handling. Clear load markings support safe selection and inspection, while the weld-on design ensures a clean, low-profile installation.
The WPPH-S complies with the relevant BG/DGUV test criteria ?GS-HM 36?, confirming its suitability for professional, safety-critical lifting operations. When installed by a qualified welder in accordance with RUD guidelines, it delivers a reliable, maintenance-friendly lifting point that performs consistently over its service life.
For users who require the proven strength and versatility of the PowerPoint Star system but do not require rotation, the WPPH-S provides a dependable and cost-effective alternative.
Typical Applications
Fabricated steel components
Machinery and plant lifting
Controlled and repetitive lifting operations
Construction and structural steelwork
Industrial maintenance environments
Technical information
| Weight | N/A |
|---|---|
| WLL | 0.63t, 1.5t, 10t, 2.5t, 4t, 6.7 |
