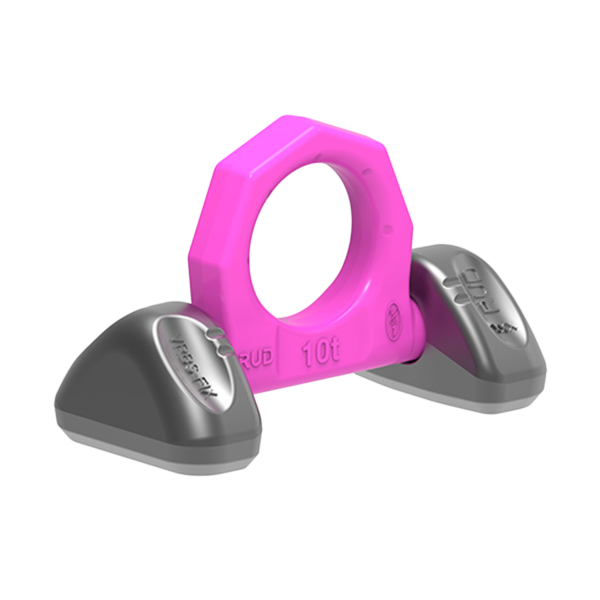

RUD VRBS-FIX VIP Weld-On Load Ring ? Heavy Duty Pivoting Lifting Point with Circular Weld Seam – 4t-100t WLL (Complete)

Description

The RUD VRBS-FIX VIP Load Ring Weldable FIX is engineered for applications where maximum load capacity, durability, and ease of installation are essential. As part of RUD?s premium VIP lifting range, the VRBS-FIX provides a robust, permanently welded lifting solution for heavy fabrication, offshore structures, plant construction, and large-scale industrial lifting operations.
One of the key advantages of the VRBS-FIX design is its patented fixing and clamping system, which firmly connects all components using radial clamping springs. This innovation removes the need for time-consuming alignment of separate weld-on blocks to the suspension ring, significantly reducing installation time while ensuring consistent positioning and performance.
The VRBS-FIX uses a circular HY fillet weld arrangement, creating a continuous weld seam around the lifting point. This design prevents contact and crevice corrosion, a common issue in traditional weld-on lifting points, making the VRBS-FIX particularly suitable for harsh or corrosive environments. The all-round HY weld also enhances structural integrity and long-term reliability.
Designed for flexibility in real-world lifting scenarios, the suspension ring can pivot through 180?, allowing it to align automatically with the applied load. In addition, the VRBS-FIX is rated for loading up to 90? in the load ring plane, offering excellent performance during angled and multi-directional lifts.
Thanks to split force introduction through multiple point fixing, loads are evenly distributed into the structure, reducing local stress and improving overall safety. Forged load-angle markings make it easy for operators to identify the correct loading direction, while innovative wear markings allow for quick visual inspection to determine when the lifting point has reached its discard limit.
A built-in clamping spring keeps the suspension ring in the desired position when not under load and reduces noise during handling, improving both usability and workplace safety.
With a Working Load Limit range from 4 t to 100 t, the VRBS-FIX is suitable for the most demanding lifting tasks, including extremely heavy components and structures. When welded in accordance with RUD?s approved welding procedures, it provides a long-lasting, maintenance-friendly lifting point that integrates seamlessly into steel fabrications.

Typical Applications
Heavy steel fabrication and construction
Offshore and marine structures
Power generation and energy infrastructure
Large machinery and equipment handling
Shipbuilding and modular fabrication

Installation & Safety Notes
Welding must be carried out by a qualified welder
Follow RUD-approved HY welding procedures
Ensure base material is suitable for the applied load
Observe marked WLL and load angle indicators
Inspect weld seam and wear markings regularly

The RUD VRBS-FIX VIP Weld-On Load Ring delivers exceptional strength, corrosion resistance, and ease of installation for the most demanding lifting applications, making it the ideal solution where safety, efficiency, and long-term performance are non-negotiable.
