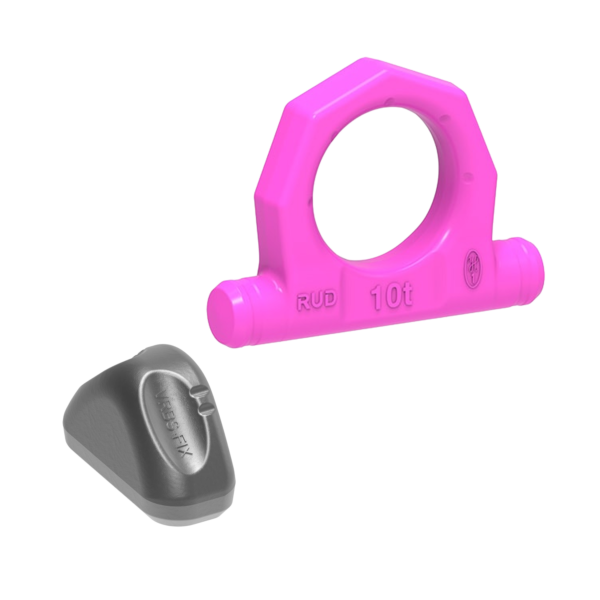

RUD VRL-FIX Octagonal Ring Link & VASK-FIX Weld-On Block ? VIP Weld-On Lifting System Components – 4?100t WLL

Description

The RUD VRL-FIX and VASK-FIX components form the foundation of RUD?s high-performance VIP weld-on lifting solutions, such as the VRBS-FIX system. Engineered for permanent integration into steel structures, these components provide a safe, durable, and corrosion-resistant lifting interface for demanding industrial environments.

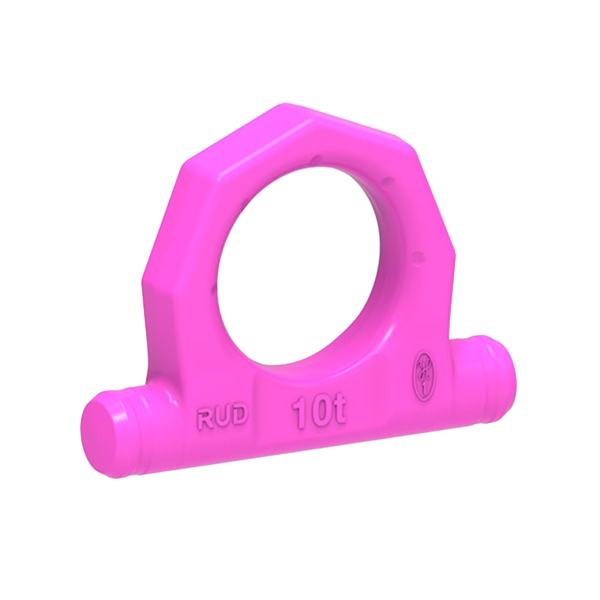

The VRL-FIX Octagonal Ring Link acts as the primary load-bearing suspension element. Its octagonal geometry ensures controlled force transfer, optimised alignment under load, and excellent resistance to deformation, even in high-capacity lifting scenarios. Available with Working Load Limits ranging from 4 t to 100 t, the VRL-FIX is suitable for everything from medium fabrication work to extreme heavy-lift applications.
Each VRL-FIX ring link is designed to work seamlessly with the VASK-FIX weld-on block, allowing for split force introduction into the base material. This design significantly reduces peak stresses in the structure, improving safety and extending the service life of the lifting point. The robust forged construction ensures consistent performance under repeated load cycles.

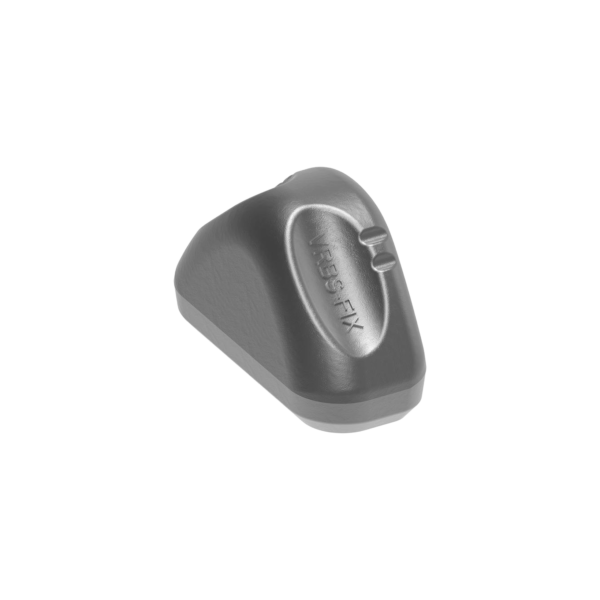

The VASK-FIX Weld-On Block is welded directly to the supporting structure and serves as the anchoring interface for the VRL-FIX ring link. Manufactured to RUD?s exacting standards, the VASK-FIX is optimised for HY circular fillet welding, providing a strong, continuous weld seam that minimises the risk of contact and crevice corrosion.
Thanks to its compact yet high-strength design, the VASK-FIX supports efficient load transfer while maintaining a low profile on the structure. Each size is precisely matched to its corresponding VRL-FIX ring link, ensuring compatibility across the full Working Load Limit range from 4 t to 100 t.
Both components are designed for use in permanently welded lifting points where reliability, inspectability, and long-term durability are critical. When installed in accordance with RUD?s approved welding procedures, the VRL-FIX and VASK-FIX combination delivers a lifting solution that meets the highest safety expectations in heavy industry.
These components are commonly used in sectors such as steel fabrication, offshore construction, shipbuilding, power generation, and large-scale machinery manufacturing, where welded lifting points are preferred over bolted alternatives.

Typical Applications
Heavy steel structures and fabrications
Offshore and marine installations
Power stations and energy infrastructure
Shipbuilding and modular construction
Large machinery and equipment lifting

Installation & Safety Notes
Welding must be carried out by qualified personnel
Follow RUD-approved HY welding specifications
Ensure correct pairing of VRL-FIX and VASK-FIX sizes
Inspect weld seams and components regularly
Observe all applicable lifting regulations and standards

The RUD VRL-FIX Octagonal Ring Link and VASK-FIX Weld-On Block provide a proven, high-capacity foundation for VIP weld-on lifting systems, delivering maximum safety, durability, and performance in permanent lifting applications.
