RUD VCGH-G VIP Boltable Attachment Block – Heavy-Duty Lifting Point – 10 t ? 20 t WLL
RUD-AB-VCGH-G-VIP
The RUD VCGH-G Heavy Duty Lifting Boltable Hook is a premium, high-capacity lifting attachment designed for extreme load handling applications where safety, durability, and flexibility are essential. With a Working Load Limit (WLL) of 10 tonnes, 16 tonnes, and up to 20?22 tonnes, the VCGH-G provides a secure connection point for all conventional lifting means without the need for additional connecting elements, making it ideal for heavy fabrication, steel construction, plant lifting, and offshore-related environments.
Description
The RUD VCGH-G Lifting Boltable Hook is engineered for demanding lifting operations that require a robust, permanently mounted lifting point capable of handling very high loads safely and efficiently. Designed for use with all conventional lifting means, including chain slings, wire rope slings, and textile slings, the VCGH-G eliminates the need for shackles or intermediate connectors, reducing complexity and improving overall lifting safety.
Manufactured using RUD?s patented ICE-Bolt steel, the VCGH-G delivers outstanding mechanical performance, including improved toughness, higher bending strength, and reduced wear compared to standard lifting components. This advanced material also ensures safe use in deep and low-temperature environments, making the lifting ring suitable for outdoor, offshore, and cold-climate applications.

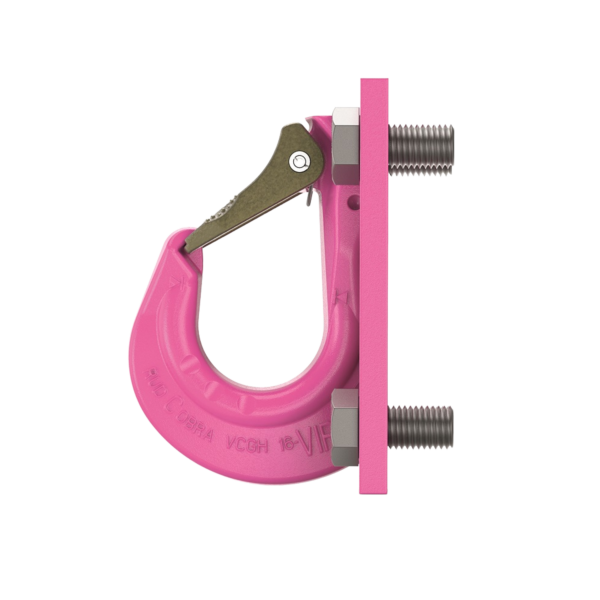

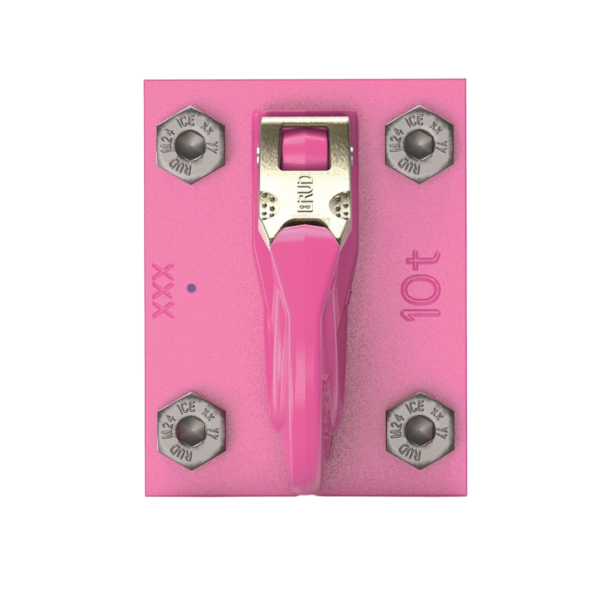

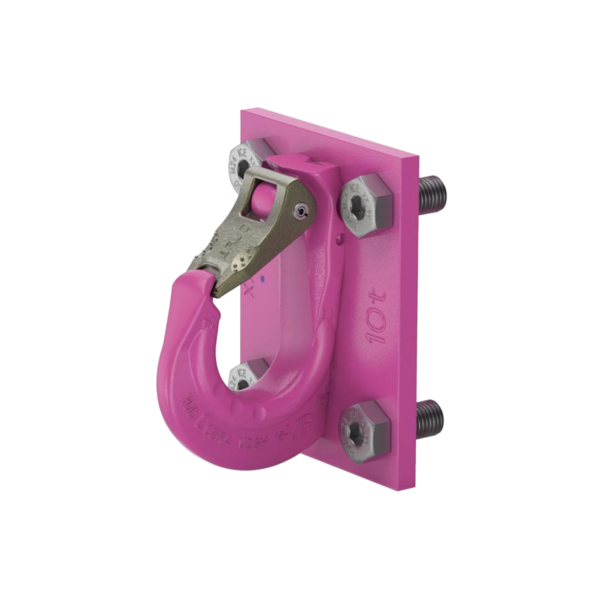

A key safety feature of the VCGH-G is its robust forged safety latch, which prevents accidental disengagement of the lifting medium during operation. This makes the lifting ring especially well suited to dynamic lifting scenarios, repetitive handling tasks, and applications where load stability is critical.
To support ongoing inspection and compliance, the VCGH-G incorporates innovative wear markings. These allow operators and inspectors to easily determine the level of wear at a glance and clearly identify when the lifting ring has reached its discard limit, supporting preventative maintenance strategies and reducing the risk of in-service failure.
The VCGH-G has been tested and verified in accordance with the BG/DGUV ?GS-HM 36? test criteria, confirming its suitability for professional, safety-critical lifting operations. Its metric threaded design enables secure, permanent installation on load-rated structures, beams, frames, and machinery, providing a clearly defined and reliable lifting point.
Typical Applications
Heavy steel fabrication and construction
Plant and machinery lifting
Offshore and marine environments
Power generation and infrastructure projects
Structural beam and frame lifting
Installation & Safety Notes
Must be installed into load-rated threaded mounting points
Always observe the marked Working Load Limit
Inspect safety latch and wear markings before each use
Suitable for permanent or semi-permanent installation
Subject to technical changes
Technical information
| WLL | 10t, 16t, 20t |
|---|
