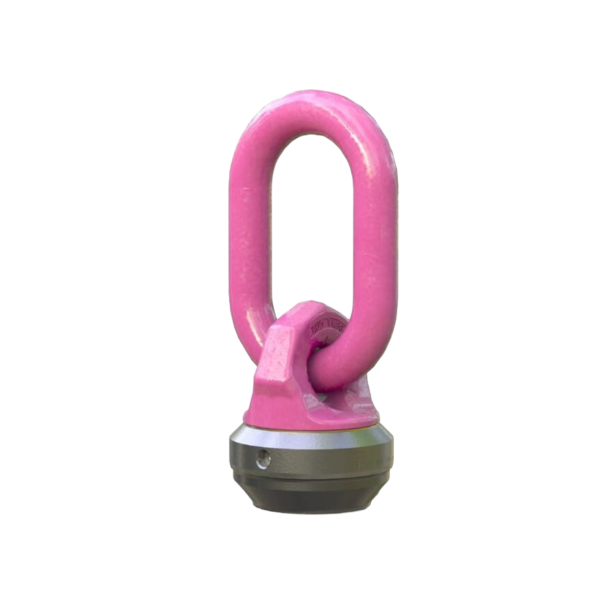

RUD VWBS 40(50)t Weldable Load Ring ? 360? Rotating Heavy-Duty Lifting Eye
RUD-WP-VWBS-VIP
The RUD VWBS 40(50)t is a heavy-duty, weldable lifting eye designed for extreme industrial lifting applications. Offering 360? rotation, optimised force distribution and exceptional durability, it is engineered for safe handling of very high loads in demanding environments.
Price on request
Description
The RUD VWBS 40(50)t VIP Load Ring for Welding is a premium lifting solution developed for applications where maximum load capacity, controlled movement and long-term reliability are essential. As part of RUD?s proven heavy-lift portfolio, the VWBS is designed to handle a Working Load Limit (WLL) of 40 tonnes, with an increased axial load capacity of up to 50 tonnes, making it suitable for some of the most demanding lifting operations in industry.
This weldable load ring is manufactured to the highest quality standards and is intended for permanent installation by qualified welders. Once installed, it provides a robust, maintenance-friendly lifting point that can be relied upon for repeated heavy lifts. The 360? rotatable suspension ring allows the load to align naturally with the direction of force, significantly reducing bending moments, side loading and uneven stress on the welded connection.
A key advantage of the VWBS design is its optimised force distribution, which ensures that loads are transferred evenly into the welded structure. This not only improves lifting safety but also helps protect the base material from fatigue and localised stress concentration. The circular weld seam concept supports a strong, continuous weld that is suitable for heavy industrial and structural steel applications.
The VWBS 40(50)t is particularly well suited for use in steel construction, offshore fabrication, heavy machinery handling, power generation, shipbuilding and large-scale plant engineering. Its robust construction makes it ideal for environments where lifting points are exposed to frequent use, harsh conditions and high dynamic forces.
Designed and manufactured in Germany, the VWBS complies with relevant national and European safety expectations for professional lifting equipment. The clearly marked load capacities allow for quick identification on site, improving operational safety and reducing the risk of misuse.
For engineers and lifting professionals who require a permanent, high-capacity, rotating lifting eye, the RUD VWBS 40(50)t offers an excellent balance of strength, flexibility and durability.
Typical Applications
Heavy steel structures and assemblies
Offshore and shipbuilding projects
Power plants and industrial facilities
Large machinery and plant handling
Technical information
| Weight | 27.9 kg |
|---|
