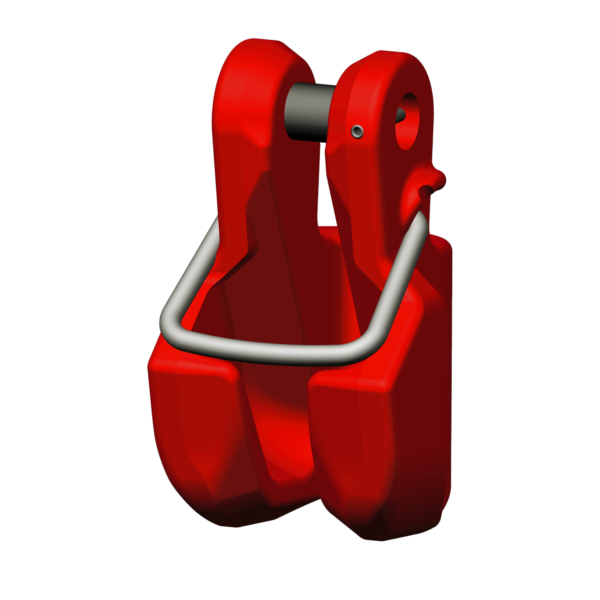

Pewag KWB VKL Grade 8 Clevis Shortening Clutch Chain Sling Shortening Device – 1.12t to 5.3t WLL
PEW-KWB-LA-KVL
Pewag KWB VKL Grade 8 Clevis Shortening Clutch for safe chain sling shortening and loop creation. High-strength alloy steel with WLL up to 5,300 kg. Designed for professional lifting and rigging applications.
Description
The Pewag KWB VKL Grade 8 Clevis Shortening Clutch is a professional lifting accessory engineered for safely shortening chain sling legs and creating non-tightening loops in heavy-duty lifting systems. Manufactured by Pewag, this robust shortening clutch delivers reliable performance for industrial lifting, construction, and material handling environments.
Produced from high-strength Grade 8 alloy steel, the VKL shortening clutch ensures excellent durability, wear resistance, and load security. It is specifically designed for use with lifting chains of the same nominal size, providing a secure and efficient method for adjusting chain length while maintaining full system integrity.
The precision clevis connector with bent hitch pin enables straightforward assembly into chain slings, while the compact design ensures proper alignment in the direction of load. With working load limits ranging from 1,120 kg to 5,300 kg, the VKL series supports a wide range of lifting configurations and professional rigging requirements.
Fully compliant with the EU Machinery Directive 2006/42/EC when incorporated into certified lifting assemblies, this shortening clutch is suitable for building loops that must not tighten and for controlled lifting and transport operations. It operates reliably within an admissible temperature range of ?40 °C to +200 °C.
For safe operation, the VKL must only be loaded by the inside chain and used with the appropriate safety device. Correct chain fit and proper alignment are essential to maintain rated performance and operator safety.
Dimensions & Working Load Limit
Chain Size (mm) Code e (mm) b (mm) d (mm) Weight (kg) WLL (kg)
6 VKL 06.8 45 36 7.4 0.27 1,120
7 VKL 07.8 58 44 9 0.50 1,500
8 VKL 08.8 58 44 10 0.50 2,000
10 VKL 10.8 70 55 12.5 0.80 3,150
13 VKL 13.8 90 70 16 1.53 5,300
Safety & User Instructions:
Use only with chains of the same nominal size.
Load the inside chain only; ensure correct seating.
Always use with an appropriate safety device.
Do not exceed the stated Working Load Limit.
Avoid shock loading and transverse loading.
Operating temperature: ?40 °C to +200 °C (outside this range is forbidden).
Inspect before each use and annually by a competent person.
Assembly and repairs must be carried out by qualified personnel only.
