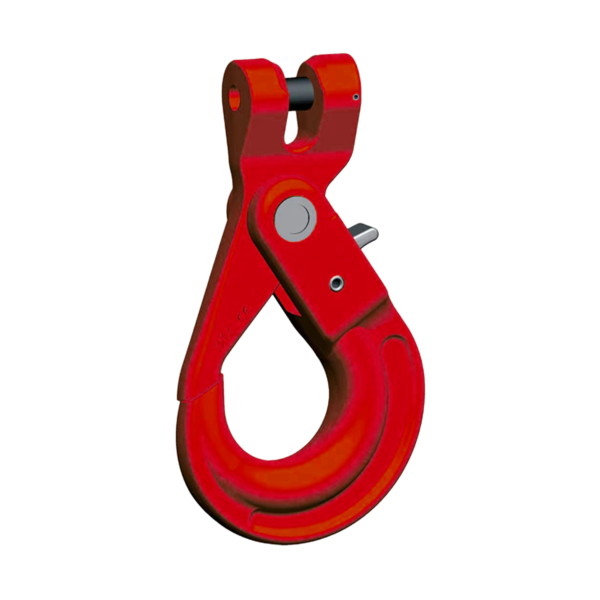

Pewag KWB Grade 8 Clevis Self-Locking Hook HKSB Heavy-Duty Safety Chain Hook

Name: Pewag KWB Grade 8 Clevis Self-Locking Hook HKSB Heavy-Duty Safety Chain Hook - Lifting Gear Products
SKU: PEW-KWB-LA-H-HKSB
Availability: InStock

PEW-KWB-LA-H-HKSB

Pewag KWB HKSB Grade 8 Clevis Self-Locking Hook with automatic safety mechanism for secure industrial lifting. High-strength forged construction with working load limits up to 8,000 kg. Designed for professional chain sling systems.

From: £28.53£34.24 Exc VATInc VAT

WLL

Guage

Request a Product Modification

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description

The Pewag KWB Grade 8 Clevis Self-Locking Hook HKSB is a premium lifting component engineered for maximum safety and performance in professional chain sling assemblies. Manufactured from high-grade Grade 8 alloy steel, this heavy-duty clevis hook features an automatic self-locking mechanism that securely closes under load, significantly reducing the risk of accidental disengagement during lifting operations.

Designed for use in demanding industrial environments including construction, offshore lifting, heavy engineering, logistics, and manufacturing, the HKSB self-locking hook ensures reliable and compliant lifting performance. The clevis fitting allows direct integration with compatible lifting chains, providing secure attachment and optimal load alignment.

The integrated automatic locking latch enhances operator safety by remaining closed while under tension, making it ideal for safety-critical lifting tasks. Precision-engineered dimensions ensure compatibility with specified chain codes while maintaining full Working Load Limit (WLL) capacity.

Available in sizes from HKSB 06.8 U to HKSB 16.8 U, this Grade 8 hook supports working load limits from 1,120 kg up to 8,000 kg. The forged steel body delivers excellent resistance to wear, fatigue, and mechanical stress, ensuring long service life in high-load environments.

Dimensions & Working Load Limits
Chain Code g (mm) d (mm) e (mm) a (mm) b (mm) h (mm) S max (mm) Weight (kg) WLL (kg)
HKSB 06.8 U 28 7.4 94 17 71 20 1 0.56 1,120
HKSB 07/8.8 U 34 9 123 20 88 26 1 0.87 2,000
HKSB 10.8 U 45 12.5 144 29 107 30 1 1.61 3,150
HKSB 13.8 U 52 16 180 35 138 40 1.5 3.24 5,300
HKSB 16.8 U 60 20 218 41 168 50 2 5.96 8,000

Safety & User Instructions:
Inspect hook body, clevis pin, and locking mechanism before each use.
Confirm compatibility with correct Grade 8 lifting chain.
Never exceed the stated Working Load Limit (WLL).
Avoid side loading, shock loading, or improper lifting angles.
Do not weld, heat treat, or modify the hook.
Ensure the automatic latch is functioning correctly before lifting.
Comply with UK LOLER regulations and site-specific lifting procedures.

Technical information

Weight	0.56 kg

Key Features

Grade 8 alloy steel forged construction Automatic self-locking safety mechanism Clevis fitting for secure chain sling attachment Working load limits from 1,120 kg to 8,000 kg High resistance to wear and fatigue Precision-engineered for designated chain codes Ideal for construction, offshore, logistics, and heavy industry
