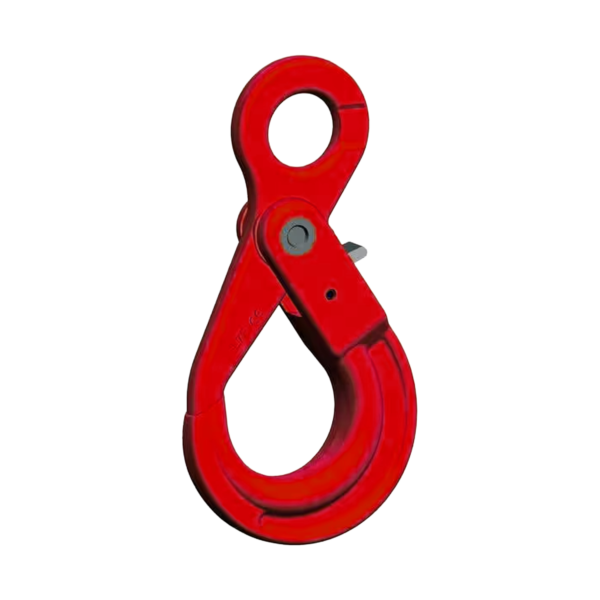

Pewag KWB HSB Eye Self-Locking Hook Grade 8 – Heavy-Duty Safety Lifting Chain Hook – 1.12t to 12.5t WLL

Name: Pewag KWB HSB Eye Self-Locking Hook Grade 8 - Heavy-Duty Safety Lifting Chain Hook - 1.12t to 12.5t WLL - Lifting Gear Products
SKU: PEW-KWB-LA-H-HSB
Availability: InStock

PEW-KWB-LA-H-HSB

High-strength Pewag KWB HSB Eye Self-Locking Hook with integrated safety latch for secure lifting. Ideal for industrial lifting, chain slings, and heavy-duty material handling. Multiple sizes with working load limits up to 12,500?kg.

From: £26.88£32.26 Exc VATInc VAT

WLL

Guage

Request a Product Modification

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description

The Pewag KWB HSB Eye Self-Locking Hook is engineered for industrial-grade lifting operations requiring maximum safety and reliability. Featuring an integrated self-locking mechanism, this hook prevents accidental disengagement, making it perfect for chain slings in construction, shipping, logistics, and manufacturing sectors.

Constructed from high-quality forged steel, the KWB HSB hook offers exceptional strength and durability. Its design allows easy attachment to HS chains, while the self-locking mechanism ensures a secure hold during lifting tasks, minimising the risk of accidents or dropped loads.

Available in sizes ranging from HSB 06.8 to HSB 20.8, these hooks support working load limits from 1,120?kg to 12,500?kg. Each size is precisely dimensioned with measurements such as g, d2, d1, e, b, a, h, and s max, providing compatibility with standard HS chains. Please note, these hooks are not suitable for welded systems, and care should be taken to use only compatible chain configurations.

The ergonomic design of the KWB HSB hook ensures smooth handling and rapid attachment to chains, increasing operational efficiency while maintaining strict safety standards. Its high-strength forged steel construction guarantees long-term performance, even under continuous industrial use.

Chain Code g (mm) d2 (mm) d1 (mm) e (mm) b (mm) a (mm) h (mm) s max (mm) Weight (kg) WLL (kg)
HSB 06.8 28 11 21 110 71 17 20 1 0.52 1,120
HSB 07/8.8 34 12 25 136 88 20 26 1 0.92 2,000
HSB 10.8 45 17 32 169 107 29 30 1 1.57 3,150
HSB 13.8 52 20 40 205 138 35 40 1.5 3.19 5,300
HSB 16.8 60 27 50 251 168 41 50 2 6.24 8,000
HSB 20.8 70 30 60 290 194 50 62 2 9.75 12,500

Safety & User Instructions:
Inspect the hook and self-locking latch before each use.
Ensure the hook size matches your chain and lifting load requirements.
Never exceed the specified working load limit.
Avoid side loading or shock loading to prevent damage.
Store in a dry, clean environment and maintain the latch for proper function.
Do not use with welded chain systems.

Technical information

Weight	N/A

Key Features

Self-locking safety latch for secure lifting Forged steel construction for superior durability Wide range of sizes (HSB 06.8 to HSB 20.8) Working load limits from 1,120?kg to 12,500?kg Designed for chain slings in heavy industrial applications Ergonomic, easy-to-handle design for fast attachment
