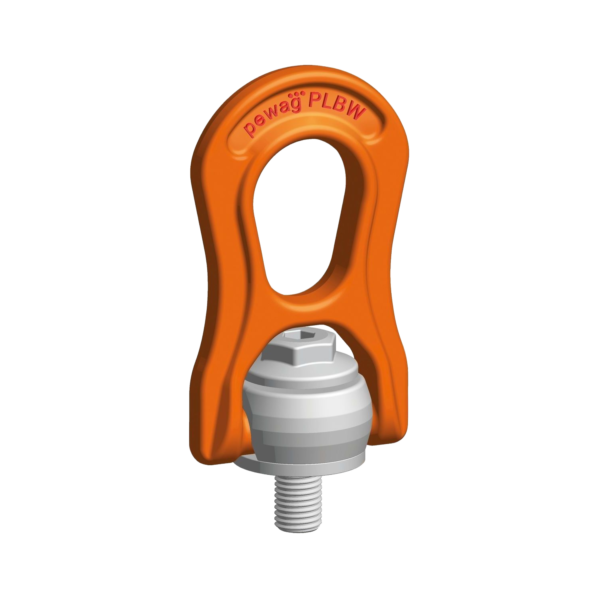

Pewag Winner Profilift Lifting Point PLBW Beta – UNC Thread – Standard Length – 300kg to 15 Tonne WLL
PEW-LP-PLBW-UNC
Pewag Winner Profilift PLBW Beta UNC thread lifting point with 360° rotation and 180° loadable swivel ring. Manufactured from high-strength grade 10.9 steel, delivering up to five-fold safety in permitted lifting applications. Available in UNC thread sizes from 5/16″ to 1 1/2″ with optional peTAG ID chip for digital traceability.
Price on request
Description
The Pewag Winner Profilift PLBW Beta UNC Thread Lifting Point is a heavy-duty swivel lifting eye designed for applications requiring imperial (UNC) threaded connections, while delivering exceptional safety, flexibility and load performance. Engineered to Pewags exacting quality standards, the PLBW Beta is ideal for complex lifting operations where load direction, inclination and configuration can vary.

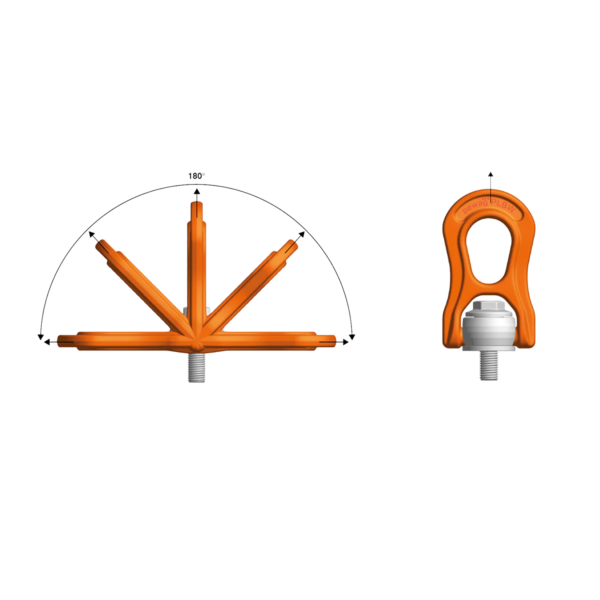

This lifting point features a 360° rotatable body, allowing free rotation around the screw axis for optimum load alignment. The load ring is movable through a full 180° working range, enabling precise positioning in line with the direction of pull. A replaceable and patented spring mechanism ensures the ring remains securely positioned prior to loading, significantly reducing the risk of side loading, bending stress and thread damage.
In permitted applications, the PLBW Beta offers an enhanced five-fold safety factor, providing a higher margin of safety than standard lifting points. Each lifting point is clearly marked with the admissible load capacity for the most unfavourable application mode, allowing increased load capacity to be utilised during vertical lifting. This makes the PLBW Beta particularly well suited to applications involving angled lifts, multi-leg slings or asymmetric loading.
The interchangeable hexagonal special screw is manufactured from high-strength grade 10.9 steel, fully 100% crack tested, and secured against loss. A chromate VI-free corrosion protection coating provides excellent durability while complying with modern environmental and workplace safety standards. Each lifting point carries an individual serial number, ensuring full traceability and compliance with lifting and inspection regulations.
The PLBW Beta UNC version is available with UNC thread sizes from 5/16″ to 1 1/2″, covering a wide range of working load limits depending on size, number of legs and angle of inclination. Comprehensive load capacity tables form an integral part of the operating manual supplied with every unit, ensuring users can safely select the correct lifting configuration.
For improved inspection management, asset tracking and documentation control, the PLBW Beta can also be supplied with the optional peTAG digital identification system, allowing instant access to product data, inspection records and operating information via smartphone or computer.
Applications
Pewag PLBW Beta UNC thread lifting points are commonly used in:
Heavy engineering and industrial lifting operations
Machinery, plant and equipment handling
Fabrication and structural steel installation
Maintenance, overhaul and repair environments
Multi-leg, angled and asymmetric lifting scenarios
Applications requiring imperial (UNC) threaded fixing points
Safety & User Instructions
Always refer to the Pewag load capacity tables before lifting
Ensure the lifting point is fully tightened to the specified torque
Position the load ring in the direction of pull before applying load
Do not rotate or reposition the ring while under load

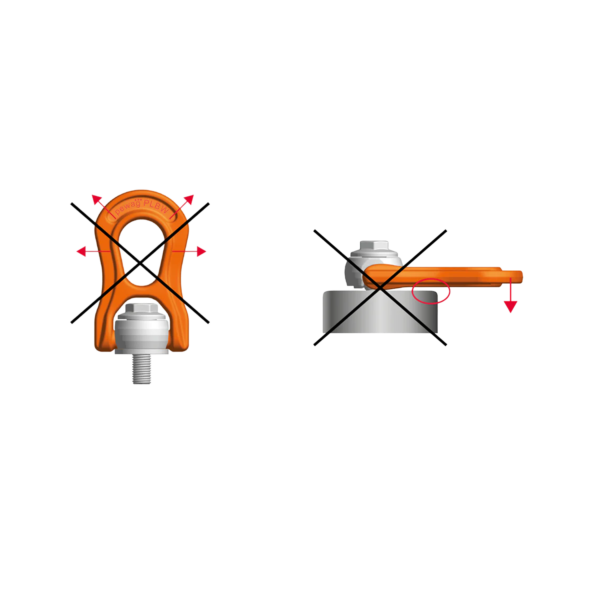

Avoid edge loading or obstructed pull directions
Never exceed the stated Working Load Limit (WLL)
Inspect the lifting point for damage or wear prior to use
Use only in accordance with the supplied operating manual
Technical information
| Weight | N/A |
|---|
