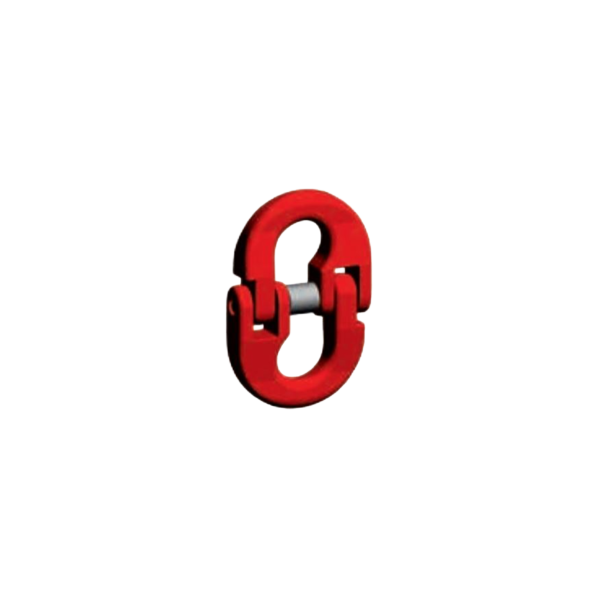

Pewag KWB Super Alloy Connecting Link V Grade 8 Chain Sling Coupling (6mm32mm)

Name: Pewag KWB Super Alloy Connecting Link V Grade 8 Chain Sling Coupling (6mm32mm) - Lifting Gear Products
SKU: PEW-KWB-LA-CL-V
Availability: InStock

PEW-KWB-LA-CL-V

High-strength Grade 8 Connecting Link V for chain slings, designed for secure attachment of chains, hooks, and master links. Working Load Limit up to 31,500 kg. EN compliant, EU Machinery Directive 2006/42/EC approved. Suitable for -40°C to 200°C.

From: £8.70£10.44 Exc VATInc VAT

WLL

Guage

Request a Product Modification

If you would like to request a change to this product that isn’t available within the current options, please enter your requirements here. Any modifications will need to be processed through our quote system rather than purchased directly online.

Add to Quote

Description

The KWB Super Alloy Connecting Link V (Grade 8) is a heavy-duty coupling component engineered for professional lifting and chain sling assembly applications. Designed for connecting alloy chains, hooks, and master links of the same nominal size, this high-performance link ensures secure, reliable load transfer in industrial lifting operations.

Manufactured in compliance with the EU Machinery Directive 2006/42/EC, Connecting Link V components are ideal for building and repairing chain sling systems using KWB Super Alloy chains. Available in sizes from 6mm to 32mm, with a Working Load Limit (WLL) ranging from 1,120 kg to 31,500 kg, these links provide dependable strength with a static test coefficient of 2.5 and safety factor of 4.

Engineered for durability, the Connecting Link V operates safely in temperatures from -40°C to +200°C, making it suitable for demanding environments in construction, heavy industry, transport, and rigging applications.

Designed for use by qualified personnel only. Must be installed according to the official operating manual and national lifting regulations.

Technical information

Weight	N/A

Key Features

Grade 8 Super Alloy Steel Construction Working Load Limit (WLL): 1,120 kg 31,500 kg Sizes Available: 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm Temperature Range: -40°C to +200°C Static Test Coefficient: 2.5 Safety Factor: 4:1 EU Machinery Directive 2006/42/EC Compliant Designed for chain-to-chain, chain-to-hook, and sling assembly connections Compatible with KWB Super Alloy chain systems Replaceable bolts and safety bushes available
