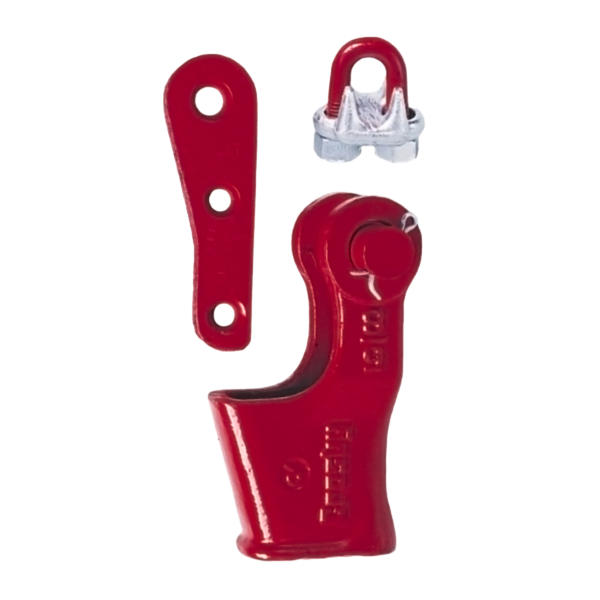

Crosby S-421T Wedge Socket � Heavy Duty Wire Rope Termination Socket
CRO-WR-S-421T
Crosby S-421T wedge socket for wire rope terminations, providing 80% efficiency, ASME B30.26 compliant, ABS type-approved, with QUIC-CHECK� �Go/No-Go� feature. Available in sizes 3/8��1-1/4� for secure lifting, rigging, and marine applications.
Price on request
Description
The Crosby S-421T Wedge Socket is an industry-leading solution for secure wire rope terminations in lifting, rigging, and marine operations. Designed for high-performance and reliability, this wedge socket ensures a termination efficiency of 80% based on catalog strength of XXIP wire rope, making it ideal for demanding industrial and shipyard environments.
Manufactured to meet and exceed ASME B30.26 requirements, the S-421T wedge socket addresses ductility, identification, design factor, proof load, and temperature standards, as well as critical performance characteristics not covered by ASME B30.26, including fatigue life, impact resistance, and full material traceability. It is ABS type-approved for steel vessel classification, and certificates are available upon request, including API-2C certification options.
The socket features a cast steel basket, magnetic particle inspected individually, ensuring maximum structural integrity. The Terminators wedge system securely holds the tail or dead end of the wire rope in place, eliminating punch-out and fatigue failure. This system leaves the rope tail undeformed, enhancing longevity and safety.
Crosby�s patented QUIC-CHECK� �Go/No-Go� feature ensures correct rope sizing: the wire rope must pass through the ‘Go’ hole and not pass through the ‘No-Go’ hole, guaranteeing safe and reliable operation. Compatible with Crosby Red U-Bolt� wire rope clips, the S-421T is available with a bolt, nut, and cotter pin assembly (S-421TB) for added installation security.
The wedge socket is suitable for wire ropes from 3/8� (9-10mm) to 1-1/4� (30-32mm). Each size is specifically engineered to match its corresponding Crosby S-421T socket basket, with larger wedge options available for intermediate rope diameters. Its high-grade construction and proven design make the S-421T wedge socket ideal for rigging, lifting, crane operations, and heavy-duty industrial or marine environments.
Built with durability and operator safety in mind, the S-421T wedge socket is designed to withstand repeated high-load cycles, extreme working conditions, and ensures long-term service life. Its precision-engineered wedge system reduces downtime and simplifies assembly, making it a reliable choice for both professional riggers and heavy industrial applications.
Safety & User Instructions
Confirm the wire rope diameter matches the wedge socket size.
Inspect wedge, socket, and pin for wear, cracks, or deformation before each use.
Use QUIC-CHECK� �Go/No-Go� feature to verify correct rope sizing.
Ensure the tail of the wire rope is fully secured in the wedge system.
Always follow ASME B30.26 and EN 13411-6 guidelines for lifting and rigging.
Avoid using worn or damaged wire rope with the socket.
Store in a dry, clean environment when not in use to prolong service life.
Recommended Applications
Shipbuilding and marine construction � secure lifting of steel cables and ropes
Crane and rigging operations � high-load wire rope terminations
Industrial lifting systems � durable wedge for repeated use
Heavy fabrication and offshore projects � safe, certified rope anchoring
Technical information
| Weight | N/A |
|---|
