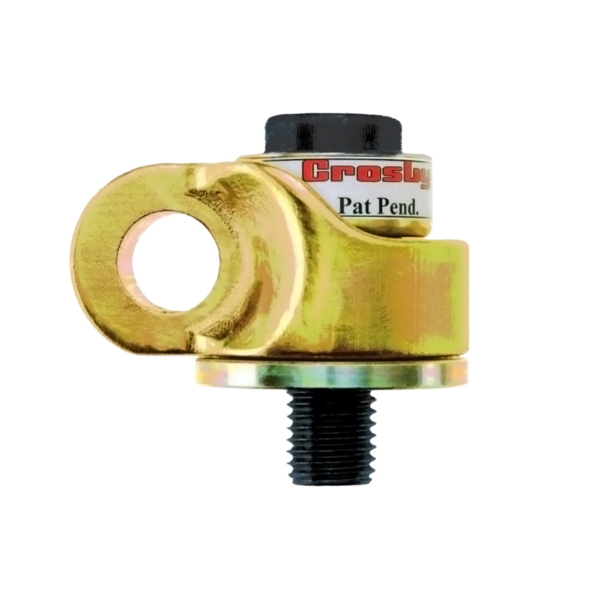

Crosby HR-1200M Side Pull Hoist Ring – Metric Thread – 300kg to 13t WLL

Description

The Crosby HR-1200M Metric Side Pull Hoist Ring is a high-performance lifting point designed specifically for side loading and angled lifting applications. Engineered for durability and safety, these hoist rings provide a reliable lifting solution for operations where loads must be lifted at an angle rather than directly vertical.

Unlike standard hoist rings that are primarily designed for vertical lifting, the HR-1200M series is rated at 100% of its working load limit for lift angles up to 90 degrees, making it ideal for side pull lifting scenarios often encountered in fabrication, heavy engineering, and machinery installation.

Each HR-1200M hoist ring is manufactured from high-strength materials and finished with a yellow chromate coating, providing enhanced corrosion resistance and extended service life in demanding industrial environments.

For quality assurance and traceability, every unit is permanently stamped with a Product Identification Code (PIC), the working load limit, and the Crosby name or �CG� mark. This ensures full traceability of materials and manufacturing standards.

The HR-1200M series is also individually proof tested to 2.5 times the working load limit, delivering dependable performance in critical lifting operations.

Designed for flexible lifting setups, the hoist ring can be paired with standard Crosby Red Pin� shackles to connect lifting equipment such as wire rope slings or synthetic slings (sold separately). Multiple bolt length options are available to suit a variety of mounting depths and application requirements.

Available in metric thread sizes from M8 to M48, the HR-1200M range provides working load limits from 0.30 tonnes up to 13 tonnes, making it suitable for a wide range of lifting tasks across construction, engineering, manufacturing, and industrial maintenance operations.

With its robust construction, corrosion resistant finish, and full rated side-pull capability, the Crosby HR-1200M metric side pull hoist ring is a trusted lifting component for professional rigging applications.

Safety & User Instructions
Ensure the mounting surface is flat, clean, and structurally capable of supporting the load.
Confirm the correct bolt size, thread type, and thread engagement prior to installation.
Tighten the bolt to the recommended torque value specified for the hoist ring.
Ensure the hoist ring rotates and aligns freely before applying a load.
Do not exceed the stated working load limit (WLL).
Only use appropriate shackles and lifting attachments that fit correctly within the ring.
Inspect the hoist ring regularly for signs of wear, corrosion, deformation, or damage.
Replace damaged components immediately using approved replacement parts.
Follow all applicable lifting regulations and always wear appropriate PPE.

Recommended Applications
Angled lifting and side pull lifting operations
Machinery installation and relocation
Structural fabrication and heavy engineering
Construction and industrial maintenance
Rigging and lifting point installations
Equipment handling and plant operations
